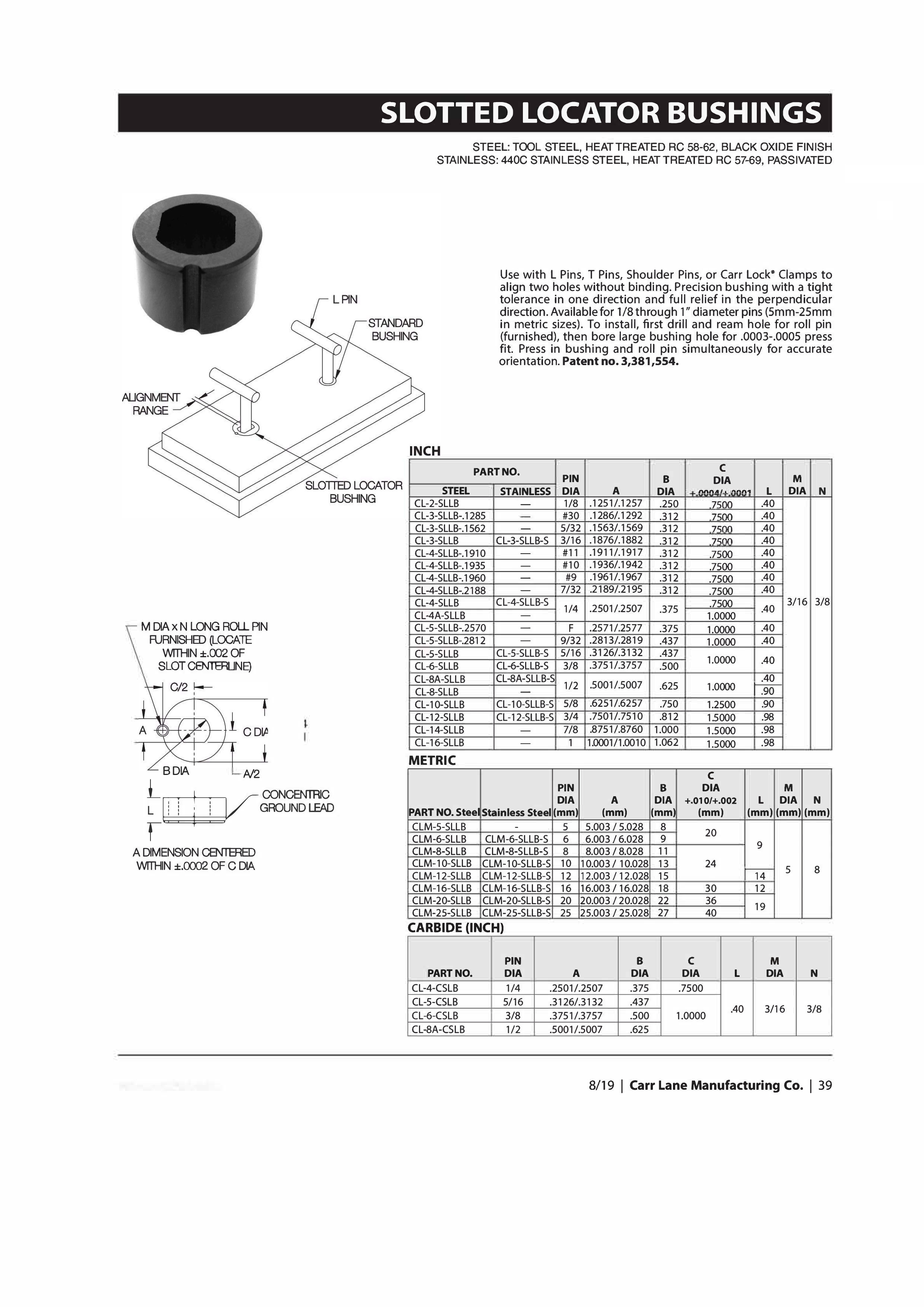

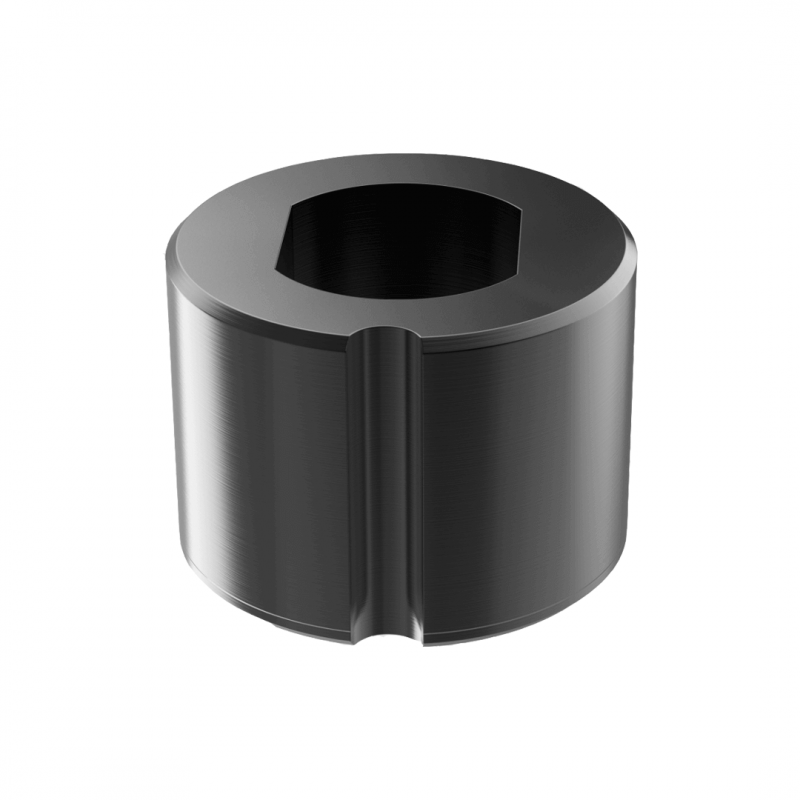

Carr Lane Slotted Locator Bushings

Range of Carr Lane Assemblies including Hand Knob, Swivel Washer and Knob Shoe avaible in a variety of sizes

• Metric and Imperial sizes
• Thread: 1/4-20 - 3/4-10 or M6 - M20

Adjustable-toque thumb screws exert positive and repeatable force. When turned clockwise, the knob disengages and rotates freely once the desired torque is reached. Turning it anti-clockwise locks the knob for secure retraction. Adjustable-Torque Thumb Screws come with a swivel foot option and a knurled check nut. These screws are available in body-thread sizes ranging from #10-32 to 5/8-11 (M5 to M16 in metric), with various length options.

• Metric and Imperial sizes available
• Choice of four foot types
• Thread - #10-24 - 5/8-11 or M5 - M16

Locking L Pins and T Pins are available as complete assembly, L or T pin only and bushing only. They have precision-ground pin diameter to ensure accurate hole alignment. Locking L Pins and T Pins are removable locating pins with a durable construction, each featuring a handle end with a small hole for attaching an optional cable. These pins come in a variety of diameters and lengths. Locking L Pins and T Pins with a lock screw that securely holds bushings in place. These pins are available in both imperial and metric sizes

Carr Lane Lock screws can be used on either the "slip" side or the "fixed" side of a slip/fixed renewable bushing. Lockscrews are the most popular locking device for renewable drill bushings. These Lockscrews are designed and manufactured to be simple, strong, compact, and economical. Carr Lane lockscrews are available in a wide variety of sizes to accommodate renewable bushings ranging from 3/16" to 5" body diameter. TW series also available for thin-wall bushings. These Lockscrews are now only available in packs of 5.

• Available in metric and imperial sizes
• Only available in packs of 5

• OD - 4mm - 125mm
• ID RANGE - .35 - 95.00mm
• Metric sizes available with a variety of Lengths

Carr lane heavy duty key inserts feature a thick thread wall making it ideal and compatible with a wide range of applications. These key inserts can be used for thread reinforcement particularly when the stud or bolt is moved frequently. Key Inserts are also ideal for quickly repairing stripped, damaged, or worn threads. The locking keys ensure the insert stays securely in place, preventing rotation. These are available in both steel and stainless steal as well as both metric and imperial sizes.

• Imperial and Metric
• Steel and Stainless Steel
• External and Internal Thread Locking

A precision locating pin is commonly used with a matching bushing to align two parts of a fixture. The pin’s head and shank diameters are concentric within .0005" TIR. Available in pin diameters of 1/4", 5/16", 3/8", and 1/2" (6mm, 8mm, 10mm, and 12mm in metric). A precision bushing is used with a Bullet-Nose Dowel to align two components of a fixture. The bushing’s ID and OD are concentric within .0003" TIR. Available for pin diameters of 1/4", 5/16", 3/8", and 1/2" (6mm, 8mm, 10mm, and 12mm in metric).

• Imperial and Metric
• A Diameter - 1/4 - 1/2  6mm - 12mm
• B Diameter - 1/4 - 1/2  6mm - 12mm

Ball plungers are essential elements in various mechanical and industrial applications, valued for their straightforward design and efficiency in positioning, securing, and holding parts. They come in a range of materials such as steel, stainless steel, and Delrin®, offering versatility to meet diverse operational needs. Ball plungers deliver an ideal balance of reliability, precision, and durability for your specific requirements.

• Metric and Imperial sizes
• Thread - .1147 - 5/8-11 or M3 - M16
• Standard and Delrin® balls with Steel, Stainless and Delrin® bodies available
