Carr Lane Head Liner Bushes

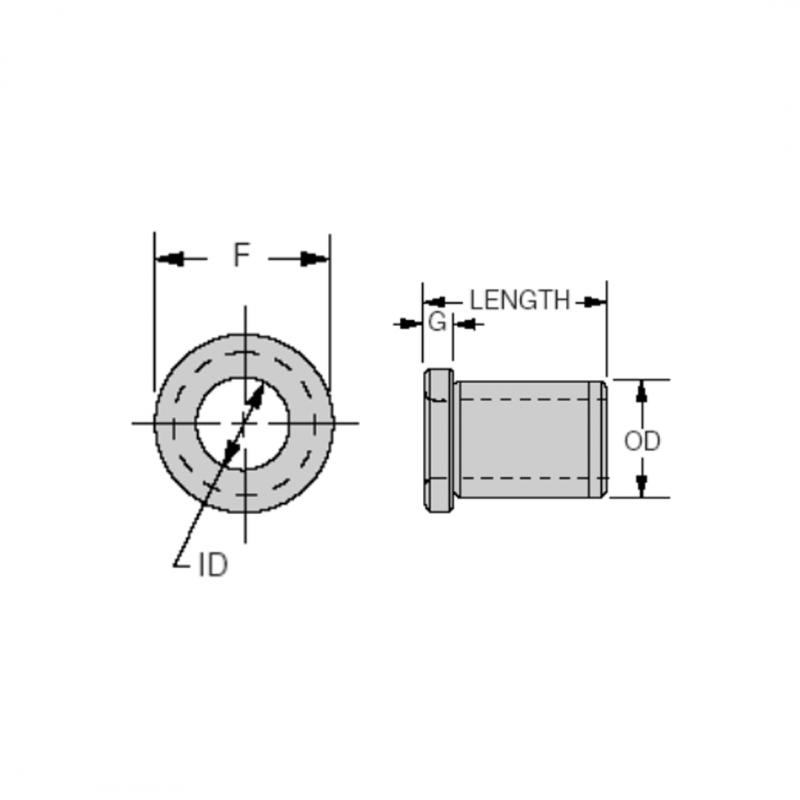

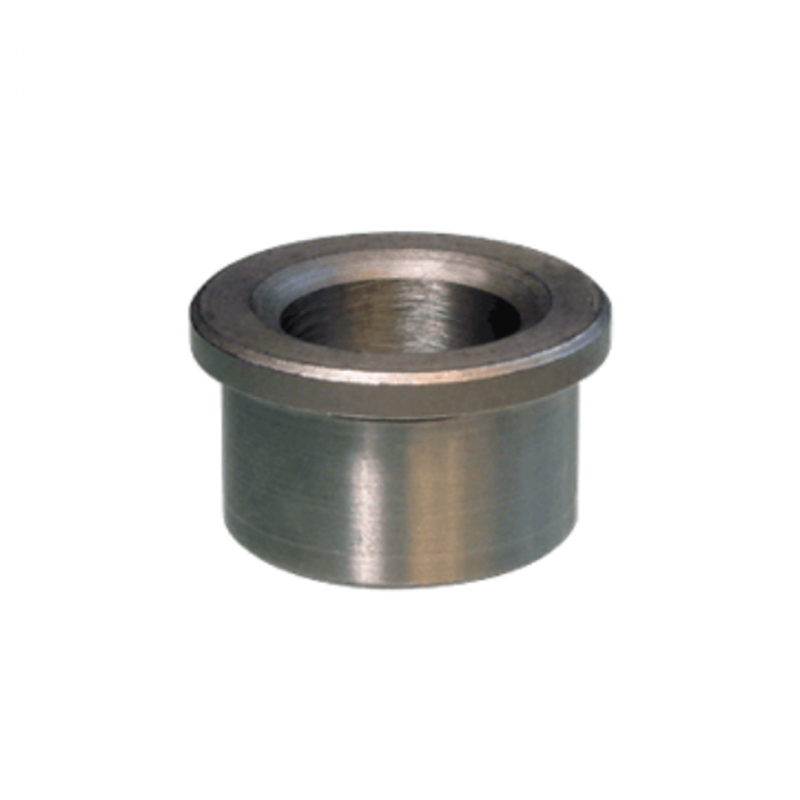

Carr Lane Head Liners are similar to L bushings but include a head that offers resistance to substantial axial forces. The inner diameter of the liner has an exact sliding tolerance with the outer diameter of the replaceable bushing. This arrangement ensures the correct positioning of the replaceable bushing and shields the jig plate from damage and wear caused by regular bushing changes. The "length" specified for an HL bushing refers to its total length, not the portion beneath the head. These are available in both metric and imperial sizing.

ID -5/16 - 2-1/4" or 8 - 105mm
OD - 1/2 - 2-3/4" or 12 - 125mm
Length - 5/16 - 3" or 10 - 112mm. Unground option available.

Print page

First Name *

Last Name *

Position *

Email *

Company Name *

Contact Number *

Town/City *

Message *

Products

Downloads

Description

Part Number	Metric or Imperial	OD	Length	ID	Unground	Price
HM-26-16-18.00 HM-26-16-18.00	Metric	26mm	16mm	18mm	No	£24.84 £29.81 Inc. VAT
HM-15-20-10.00 HM-15-20-10.00	Metric	15mm	20mm	10mm	No	£21.47 £25.76 Inc. VAT
HM-115-112-95.00 HM-115-112-95.00	Metric	115mm	112mm	95mm	No	On Enquiry
HM-85-35-70.00 HM-85-35-70.00	Metric	85mm	35mm	70mm	No	£172.28 £206.74 Inc. VAT
HM-55-56.42.00 HM-55-56.42.00	Metric	55mm	56mm	42mm	No	£96.24 £115.49 Inc. VAT
HM-35-45-26.00 HM-35-45-26.00	Metric	35mm	45mm	26mm	No	£51.82 £62.18 Inc. VAT
HM-115-89-95.00 HM-115-89-95.00	Metric	115mm	89mm	95mm	No	On Enquiry
HM-70-67-55.00 HM-70-67-55.00	Metric	70mm	67mm	55mm	No	£143.09 £171.71 Inc. VAT
HM-55-30-42.00 HM-55-30-42.00	Metric	55mm	30mm	42mm	No	£61.81 £74.17 Inc. VAT
HM-35-36-26.00 HM-35-36-26.00	Metric	35mm	36mm	26mm	No	£48.59 £58.31 Inc. VAT
HM-22-36-15.00 HM-22-36-15.00	Metric	22mm	36mm	15mm	No	£31.42 £37.70 Inc. VAT
HM-15-12-10.00 HM-15-12-10.00	Metric	15mm	12mm	10mm	No	£16.09 £19.31 Inc. VAT
HM-115-45-95.00 HM-115-45-95.00	Metric	115mm	45mm	95mm	No	On Enquiry
HM-70-56-55.00 HM-70-56-55.00	Metric	70mm	56mm	55mm	No	£133.06 £159.67 Inc. VAT
HM-48-56-35.00 HM-48-56-35.00	Metric	48mm	56mm	35mm	No	£75.08 £90.10 Inc. VAT
HM-35-20-26.00 HM-35-20-26.00	Metric	35mm	20mm	26mm	No	£37.06 £44.47 Inc. VAT
HM-22-28-15.00 HM-22-28-15.00	Metric	22mm	28mm	15mm	No	£28.20 £33.84 Inc. VAT
HM-12-16-8.00 HM-12-16-8.00	Metric	12mm	16mm	8mm	No	£18.91 £22.69 Inc. VAT
HM-105-105-85.00 HM-105-105-85.00	Metric	105mm	105mm	85mm	No	On Enquiry
HM-70-30-55.00 HM-70-30-55.00	Metric	70mm	30mm	55mm	No	£115.42 £138.50 Inc. VAT
HM-48-45-35.00 HM-48-45-35.00	Metric	48mm	45mm	35mm	No	£59.58 £71.50 Inc. VAT
HM-30-45-22.00 HM-30-45-22.00	Metric	30mm	45mm	22mm	No	£51.01 £61.21 Inc. VAT
HM-22-16-15.00 HM-22-16-15.00	Metric	22mm	16mm	15mm	No	£21.46 £25.75 Inc. VAT
HM-12-10-8.00 HM-12-10-8.00	Metric	12mm	10mm	8mm	No	£20.40 £24.48 Inc. VAT
HM-30-36-22.00 HM-30-36-22.00	Metric	30mm	36mm	22mm	No	£47.86 £57.43 Inc. VAT
HM-18-25-12.00 HM-18-25-12.00	Metric	18mm	25mm	12mm	No	£23.32 £27.98 Inc. VAT
HM-105-78-85.00 HM-105-78-85.00	Metric	105mm	78mm	85mm	No	On Enquiry
HM-62-67-48.00 HM-62-67-48.00	Metric	62mm	67mm	48mm	No	£121.44 £145.73 Inc. VAT
HM-48-25-35.00 HM-48-25-35.00	Metric	48mm	25mm	35mm	No	£49.36 £59.23 Inc. VAT
HM-125-112-105.00 HM-125-112-105.00	Metric	125mm	112mm	105mm	No	On Enquiry
HM-105-40-85.00 HM-105-40-85.00	Metric	105mm	40mm	85mm	No	On Enquiry
HM-62-56-48.00 HM-62-56-48.00	Metric	62mm	56mm	48mm	No	£105.83 £127.00 Inc. VAT
HM-42-56-30.00 HM-42-56-30.00	Metric	42mm	56mm	30mm	No	£75.08 £90.10 Inc. VAT
HM-30-20-22.00 HM-30-20-22.00	Metric	30mm	20mm	22mm	No	£31.75 £38.10 Inc. VAT
HM-18-20-12.00 HM-18-20-12.00	Metric	18mm	20mm	12mm	No	£18.91 £22.69 Inc. VAT
HM-125-89-105.00 HM-125-89-105.00	Metric	125mm	89mm	105mm	No	On Enquiry
HM-85-78-70.00 HM-85-78-70.00	Metric	85mm	78mm	70mm	No	£228.17 £273.80 Inc. VAT
HM-62-30-48.00 HM-62-30-48.00	Metric	62mm	30mm	48mm	No	£81.61 £97.93 Inc. VAT
HM-42-45-30.00 HM-42-45-30.00	Metric	42mm	45mm	30mm	No	£59.58 £71.50 Inc. VAT
HM-26-36-18.00 HM-26-36-18.00	Metric	26mm	36mm	18mm	No	£33.73 £40.48 Inc. VAT
HM-18-12-12.00 HM-18-12-12.00	Metric	18mm	12mm	12mm	No	£19.96 £23.95 Inc. VAT
HM-125-45-105.00 HM-125-45-105.00	Metric	125mm	45mm	105mm	No	£252.24 £302.69 Inc. VAT
HM-85-67-70.00 HM-85-67-70.00	Metric	85mm	67mm	70mm	No	£218.00 £261.60 Inc. VAT
HM-55-67-42.00 HM-55-67-42.00	Metric	55mm	67mm	42mm	No	£121.99 £146.39 Inc. VAT
HM-42-25-30.00 HM-42-25-30.00	Metric	42mm	25mm	30mm	No	£49.36 £59.23 Inc. VAT
HM-26-28-18.00 HM-26-28-18.00	Metric	26mm	28mm	18mm	No	£26.98 £32.38 Inc. VAT
HM-15-25-10.00 HM-15-25-10.00	Metric	15mm	25mm	10mm	No	£21.62 £25.94 Inc. VAT
HL-144-48 HL-144-48	Imperial	2-1/4	3	1-3/4	No	£99.50 £119.40 Inc. VAT
HL-88-40U HL-88-40U	Imperial	1-3/8	2-1/2	1	Yes	On Enquiry
HL-144-24 HL-144-24	Imperial	2-1/4	1-1/2	1-3/4	No	£51.86 £62.23 Inc. VAT
HL-64-48U HL-64-48U	Imperial	1	3	3/4	Yes	On Enquiry
HL-64-24U HL-64-24U	Imperial	1	1-1/2	3/4	Yes	On Enquiry
HL-64-8U HL-64-8U	Imperial	1	1/2	3/4	Yes	On Enquiry
HL-48-6U HL-48-6U	Imperial	3/4	3/8	1/2	Yes	On Enquiry
HL-64-22 HL-64-22	Imperial	1	1-3/8	3/4	No	£24.84 £29.81 Inc. VAT
HL-32-12U HL-32-12U	Imperial	1/2	3/4	5/16	Yes	On Enquiry
HL-176-48 HL-176-48	Imperial	2-3/4	3	2-1/4	No	£111.38 £133.66 Inc. VAT
HL-112-40U HL-112-40U	Imperial	1-3/4	2-1/2	1-3/8	Yes	On Enquiry
HL-176-24 HL-176-24	Imperial	2-3/4	1-1/2	2-1/4	No	£63.40 £76.08 Inc. VAT
HL-64-8 HL-64-8	Imperial	1	1/2	3/4	No	£20.64 £24.77 Inc. VAT
HL-48-6 HL-48-6	Imperial	3/4	3/8	1/2	No	£17.10 £20.52 Inc. VAT
HL-32-12 HL-32-12	Imperial	1/2	3/4	5/16	No	£18.52 £22.22 Inc. VAT
HL-32-22U HL-32-22U	Imperial	1/2	1-3/8	5/16	Yes	On Enquiry
HL-176-40U HL-176-40U	Imperial	2-3/4	2-1/2	2-1/4	Yes	On Enquiry
HL-112-40 HL-112-40	Imperial	1-3/4	2-1/2	1-3/8	No	£57.11 £68.53 Inc. VAT
HL-144-40U HL-144-40U	Imperial	2-1/4	2-1/2	1-3/4	Yes	On Enquiry
HL-88-40 HL-88-40	Imperial	1-3/8	2-1/2	1	No	£45.88 £55.06 Inc. VAT
HL-64-48 HL-64-48	Imperial	1	3	3/4	No	£59.95 £71.94 Inc. VAT
HL-64-24 HL-64-24	Imperial	1	1-1/2	3/4	No	£27.59 £33.11 Inc. VAT
HL-32-22 HL-32-22	Imperial	1/2	1-3/8	5/16	No	£29.72 £35.66 Inc. VAT
HL-176-40 HL-176-40	Imperial	2-3/4	2-1/2	2-1/4	No	£81.95 £98.34 Inc. VAT
HL-112-34U HL-112-34U	Imperial	1-3/4	2-1/8	1-3/8	Yes	On Enquiry
HL-112-16U HL-112-16U	Imperial	1-3/4	1	1-3/8	Yes	On Enquiry
HL-144-40 HL-144-40	Imperial	2-1/4	2-1/2	1-3/4	No	£67.86 £81.43 Inc. VAT
HL-88-34U HL-88-34U	Imperial	1-3/8	2-1/8	1	Yes	On Enquiry
HL-88-16U HL-88-16U	Imperial	1-3/8	1	1	Yes	On Enquiry
HL-64-40U HL-64-40U	Imperial	1	2-1/2	3/4	Yes	On Enquiry
HL-48-34U HL-48-34U	Imperial	3/4	2-1/8	1/2	Yes	On Enquiry
HL-48-16U HL-48-16U	Imperial	3/4	1	1/2	Yes	On Enquiry
HL-48-5U HL-48-5U	Imperial	3/4	5/16	1/2	Yes	On Enquiry
HL-32-8U HL-32-8U	Imperial	1/2	1/2	5/16	Yes	On Enquiry
HL-144-16 HL-144-16	Imperial	2-1/4	1	1-3/4	No	£45.11 £54.13 Inc. VAT
HL-176-34U HL-176-34U	Imperial	2-3/4	2-1/8	2-1/4	Yes	On Enquiry
HL-112-34 HL-112-34	Imperial	1-3/4	2-1/8	1-3/8	No	£50.83 £61.00 Inc. VAT
HL-176-16U HL-176-16U	Imperial	2-3/4	1	2-1/4	Yes	On Enquiry
HL-112-16 HL-112-16	Imperial	1-3/4	1	1-3/8	No	£36.08 £43.30 Inc. VAT
HL-144-34U HL-144-34U	Imperial	2-1/4	2-1/8	1-3/4	Yes	On Enquiry
HL-88-34 HL-88-34	Imperial	1-3/8	2-1/8	1	No	£39.85 £47.82 Inc. VAT
HL-144-16U HL-144-16U	Imperial	2-1/4	1	1-3/4	Yes	On Enquiry
HL-88-16 HL-88-16	Imperial	1-3/8	1	1	No	£28.01 £33.61 Inc. VAT
HL-64-40 HL-64-40	Imperial	1	2-1/2	3/4	No	£38.70 £46.44 Inc. VAT
HL-48-34 HL-48-34	Imperial	3/4	2-1/8	1/2	No	£33.71 £40.45 Inc. VAT
HL-48-16 HL-48-16	Imperial	3/4	1	1/2	No	£21.31 £25.57 Inc. VAT
HL-48-5 HL-48-5	Imperial	3/4	5/16	1/2	No	£16.46 £19.75 Inc. VAT
HL-32-8 HL-32-8	Imperial	1/2	1/2	5/16	No	£17.10 £20.52 Inc. VAT
HL-144-34 HL-144-34	Imperial	2-1/4	2-1/8	1-3/4	No	£60.25 £72.30 Inc. VAT
HL-88-28U HL-88-28U	Imperial	1-3/8	1-3/4	1	Yes	On Enquiry
HL-88-12U HL-88-12U	Imperial	1-3/8	3/4	1	Yes	On Enquiry
HL-64-34U HL-64-34U	Imperial	1	2-1/8	3/4	Yes	On Enquiry
HL-64-16U HL-64-16U	Imperial	1	1	3/4	Yes	On Enquiry
HL-48-28U HL-48-28U	Imperial	3/4	1-3/4	1/2	Yes	On Enquiry
HL-48-12U HL-48-12U	Imperial	3/4	3/4	1/2	Yes	On Enquiry
HL-32-6U HL-32-6U	Imperial	1/2	3/8	5/16	Yes	On Enquiry
HL-144-12U HL-144-12U	Imperial	2-1/4	3/4	1-3/4	Yes	On Enquiry
HL-176-34 HL-176-34	Imperial	2-3/4	2-1/8	2-1/4	No	£73.63 £88.36 Inc. VAT
HL-112-28U HL-112-28U	Imperial	1-3/4	1-3/4	1-3/8	Yes	On Enquiry
HL-176-16 HL-176-16	Imperial	2-3/4	1	2-1/4	No	£53.94 £64.73 Inc. VAT
HL-112-12U HL-112-12U	Imperial	1-3/4	3/4	1-3/8	Yes	On Enquiry
HL-64-16 HL-64-16	Imperial	1	1	3/4	No	£23.44 £28.13 Inc. VAT
HL-88-22U HL-88-22U	Imperial	1-3/8	1-3/8	1	Yes	On Enquiry
HL-48-28 HL-48-28	Imperial	3/4	1-3/4	1/2	No	£28.96 £34.75 Inc. VAT
HL-48-12 HL-48-12	Imperial	3/4	3/4	1/2	No	£16.54 £19.85 Inc. VAT
HL-32-6 HL-32-6	Imperial	1/2	3/8	5/16	No	£17.10 £20.52 Inc. VAT
HL-48-22U HL-48-22U	Imperial	3/4	1-3/8	1/2	Yes	On Enquiry
HL-144-12 HL-144-12	Imperial	2-1/4	3/4	1-3/4	No	£49.03 £58.84 Inc. VAT
HL-176-28U HL-176-28U	Imperial	2-3/4	1-3/4	2-1/4	Yes	On Enquiry
HL-112-28 HL-112-28	Imperial	1-3/4	1-3/4	1-3/8	No	£44.48 £53.38 Inc. VAT
HL-176-12U HL-176-12U	Imperial	2-3/4	3/4	2-1/4	Yes	On Enquiry
HL-112-12 HL-112-12	Imperial	1-3/4	3/4	1-3/8	No	£34.37 £41.24 Inc. VAT
HL-144-28U HL-144-28U	Imperial	2-1/4	1-3/4	1-3/4	Yes	On Enquiry
HL-88-28 HL-88-28	Imperial	1-3/8	1-3/4	1	No	£35.41 £42.49 Inc. VAT
HL-88-12 HL-88-12	Imperial	1-3/8	3/4	1	No	£24.84 £29.81 Inc. VAT
HL-112-22U HL-112-22U	Imperial	1-3/4	1-3/8	1-3/8	Yes	On Enquiry
HL-64-34 HL-64-34	Imperial	1	2-1/8	3/4	No	£32.52 £39.02 Inc. VAT
HL-32-5U HL-32-5U	Imperial	1/2	5/16	5/16	Yes	On Enquiry
HL-48-22 HL-48-22	Imperial	3/4	1-3/8	1/2	No	£24.84 £29.81 Inc. VAT
HL-112-48U HL-112-48U	Imperial	1-3/4	3	1-3/8	Yes	On Enquiry
HL-176-28 HL-176-28	Imperial	2-3/4	1-3/4	2-1/4	No	£67.25 £80.70 Inc. VAT
HL-112-24U HL-112-24U	Imperial	1-3/4	1-1/2	1-3/8	Yes	On Enquiry
HL-176-12 HL-176-12	Imperial	2-3/4	3/4	2-1/4	No	£59.48 £71.38 Inc. VAT
HL-88-48U HL-88-48U	Imperial	1-3/8	3	1	Yes	On Enquiry
HL-144-28 HL-144-28	Imperial	2-1/4	1-3/4	1-3/4	No	£54.60 £65.52 Inc. VAT
HL-88-24U HL-88-24U	Imperial	1-3/8	1-1/2	1	Yes	On Enquiry
HL-88-8U HL-88-8U	Imperial	1-3/8	1/2	1	Yes	On Enquiry
HL-176-22U HL-176-22U	Imperial	2-3/4	1-3/8	2-1/4	Yes	On Enquiry
HL-112-22 HL-112-22	Imperial	1-3/4	1-3/8	1-3/8	No	£39.60 £47.52 Inc. VAT
HL-64-28U HL-64-28U	Imperial	1	1-3/4	3/4	Yes	On Enquiry
HL-64-12U HL-64-12U	Imperial	1	3/4	3/4	Yes	On Enquiry
HL-144-22U HL-144-22U	Imperial	2-1/4	1-3/8	1-3/4	Yes	On Enquiry
HL-88-22 HL-88-22	Imperial	1-3/8	1-3/8	1	No	£30.50 £36.60 Inc. VAT
HL-48-24U HL-48-24U	Imperial	3/4	1-1/2	1/2	Yes	On Enquiry
HL-48-8U HL-48-8U	Imperial	3/4	1/2	3/8	Yes	On Enquiry
HL-32-16U HL-32-16U	Imperial	1/2	1	5/16	Yes	On Enquiry
HL-176-48U HL-176-48U	Imperial	2-3/4	3	2-1/4	Yes	On Enquiry
HL-112-48 HL-112-48	Imperial	1-3/4	3	1-3/8	No	£92.48 £110.98 Inc. VAT
HL-176-24U HL-176-24U	Imperial	2-3/4	1-1/2	2-1/4	Yes	On Enquiry
HL-112-24 HL-112-24	Imperial	1-3/4	1-1/2	1-3/8	No	£41.96 £50.35 Inc. VAT
HL-144-48U HL-144-48U	Imperial	2-1/4	3	1-3/4	Yes	On Enquiry
HL-88-48 HL-88-48	Imperial	1-3/8	3	1	No	£80.21 £96.25 Inc. VAT
HL-144-24U HL-144-24U	Imperial	2-1/4	1-1/2	1-3/4	Yes	On Enquiry
HL-88-24 HL-88-24	Imperial	1-3/8	1-1/2	1	No	£32.60 £39.12 Inc. VAT
HL-88-8 HL-88-8	Imperial	1-3/8	1/2	1	No	£28.01 £33.61 Inc. VAT
HL-176-22 HL-176-22	Imperial	2-3/4	1-3/8	2-1/4	No	£60.25 £72.30 Inc. VAT
HL-64-28 HL-64-28	Imperial	1	1-3/4	3/4	No	£31.16 £37.39 Inc. VAT
HL-64-12 HL-64-12	Imperial	1	3/4	3/4	No	£19.69 £23.63 Inc. VAT
HL-144-22 HL-144-22	Imperial	2-1/4	1-3/8	1-3/4	No	£49.68 £59.62 Inc. VAT
HL-48-24 HL-48-24	Imperial	3/4	1-1/2	1/2	No	£26.95 £32.34 Inc. VAT
HL-48-8 HL-48-8	Imperial	3/4	1/2	3/8	No	£17.10 £20.52 Inc. VAT
HL-64-22U HL-64-22U	Imperial	1	1-3/8	3/4	Yes	On Enquiry
HL-32-16 HL-32-16	Imperial	1/2	1	5/16	No	£24.18 £29.02 Inc. VAT
HL-32-5 HL-32-5	Imperial	1/2	5/16	5/16	No	£15.78 £18.94 Inc. VAT

Carr Lane Head Liner Bushes

Options:

ID - 5/16 - 2-1/4" or 8 - 105mm
OD - 1/2 - 2-3/4" or 12 - 125mm
Lengths - 5/16 - 3" or 10 - 112mm
Unground option available in imperial sizes.

Quantity	Unit discount	You Save

Customers who bought this product also bought:

Carr Lane Swivel Screw Clamps

Clamping screws that accepts a wide assortment of swivel feet

Metric and Imperial sizes
Three foot types - Small, Large and Ball
Thread - 1/4-20 - 5/8-11 or M6 - M16
Length - 17/32 - 5-7/32 or .59 - 5.02

£7.22 £8.66 Inc. VAT

View

Carr Lane Adjustable-Torque Knobs

Adjustable-torque thumb screws exert positive and repeatable force. When turned clockwise, the knob disengages and rotates freely once the desired torque is reach. Turning it anti-clockwise locks the knob for a secure retraction. These can be used as a controlled-torque nut or as a thumb screw by fitting a custom screw in the tapped hole. Available in both metric and imperial sizes.

Thread: 1/4-20 - 1/2-13
Torque: 3-6 (lbs)
End Force: 10-125 (lbs)
Available in metric and imperial

£45.23 £54.28 Inc. VAT

View

Carr Lane Hand Knob Assemblies

Range of Carr Lane Assemblies including Hand Knob, Swivel Washer and Knob Shoe avaible in a variety of sizes

Metric and Imperial sizes
Thread: 1/4-20 - 3/4-10 or M6 - M20

£22.88 £27.46 Inc. VAT

View

Carr Lane Bullet-Nose Dowels

A precision locating pin is commonly used with a matching bushing to align two parts of a fixture. The pin’s head and shank diameters are concentric within .0005" TIR. Available in pin diameters of 1/4", 5/16", 3/8", and 1/2" (6mm, 8mm, 10mm, and 12mm in metric). A precision bushing is used with a Bullet-Nose Dowel to align two components of a fixture. The bushing’s ID and OD are concentric within .0003" TIR. Available for pin diameters of 1/4", 5/16", 3/8", and 1/2" (6mm, 8mm, 10mm, and 12mm in metric).

Imperial and Metric
A Diameter - 1/4 - 1/2 6mm - 12mm
B Diameter - 1/4 - 1/2 6mm - 12mm

£5.42 £6.50 Inc. VAT

View

Carr Lane Ball Plungers

Ball plungers are essential elements in various mechanical and industrial applications, valued for their straightforward design and efficiency in positioning, securing, and holding parts. They come in a range of materials such as steel, stainless steel, and Delrin®, offering versatility to meet diverse operational needs. Ball plungers deliver an ideal balance of reliability, precision, and durability for your specific requirements.

Metric and Imperial sizes
Thread - .1147 - 5/8-11 or M3 - M16
Standard and Delrin® balls with Steel, Stainless and Delrin® bodies available

£11.65 £13.98 Inc. VAT

View

Carr Lane Slotted Locator Bushings

Slotted Locator Bushings are compatible with various alignment and locating pins to align two holes without binding. These precision bushings feature a tight tolerance in one direction and full relief in the perpendicular direction. . Available for pin diameters ranging from 3/16" to 1/2". An optional version in hardened 440C stainless steel is also available. These are available in knurled and press fit type.

£41.09 £49.31 Inc. VAT

View

Carr Lane Shoulder Screws

Carr Lanes shoulder screws are a type of fastener that are manufactured with a cylindrical body and a shoulder between the threaded portion and the head of the screw. The shoulder is larger in diameter in comparison to the threaded area and is a bearing surface or precise reference point. This item is available in both metric and imperial sizing and in thread diameters from 1/4" to 3/4" (8 to 20mm). These shoulder screws are best used for critical applications where precision and performance are vital.

Metric and Imperial sizes available
Shoulder Dia - 1/4 - 3/4 or 8mm - 20mm

£7.64 £9.17 Inc. VAT

View
