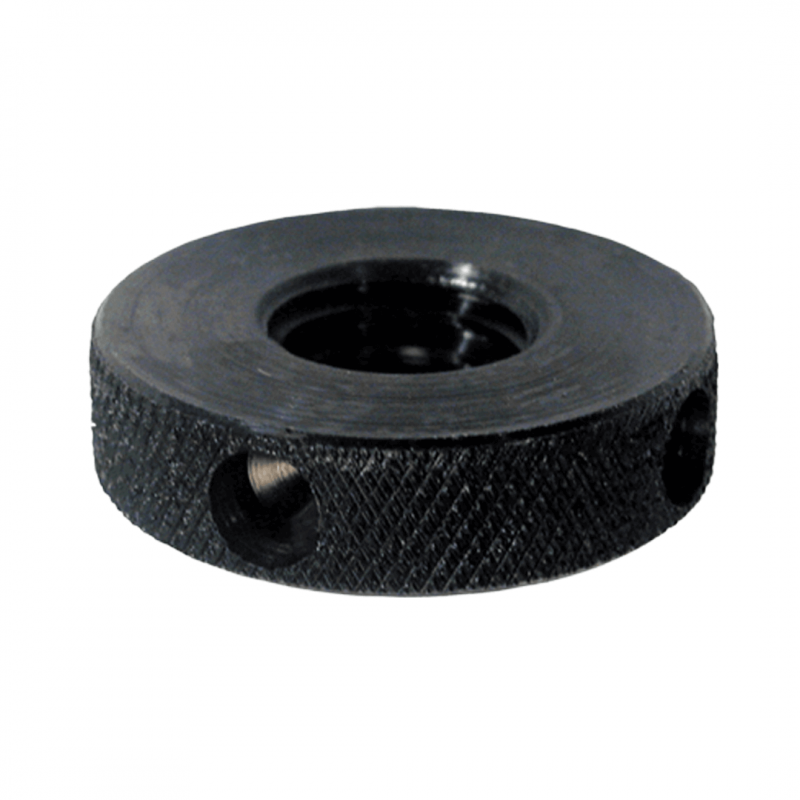

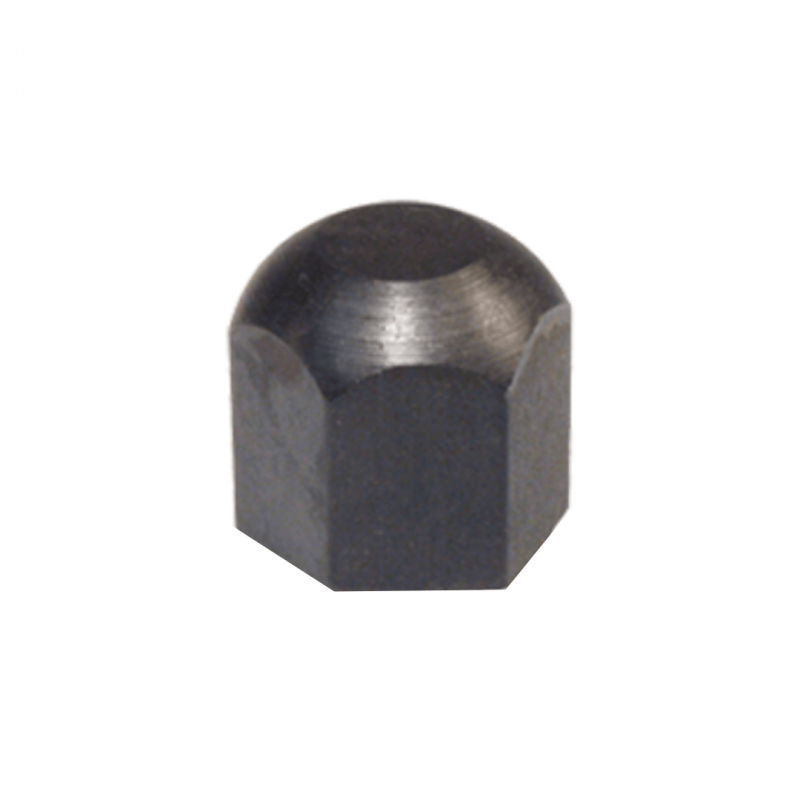

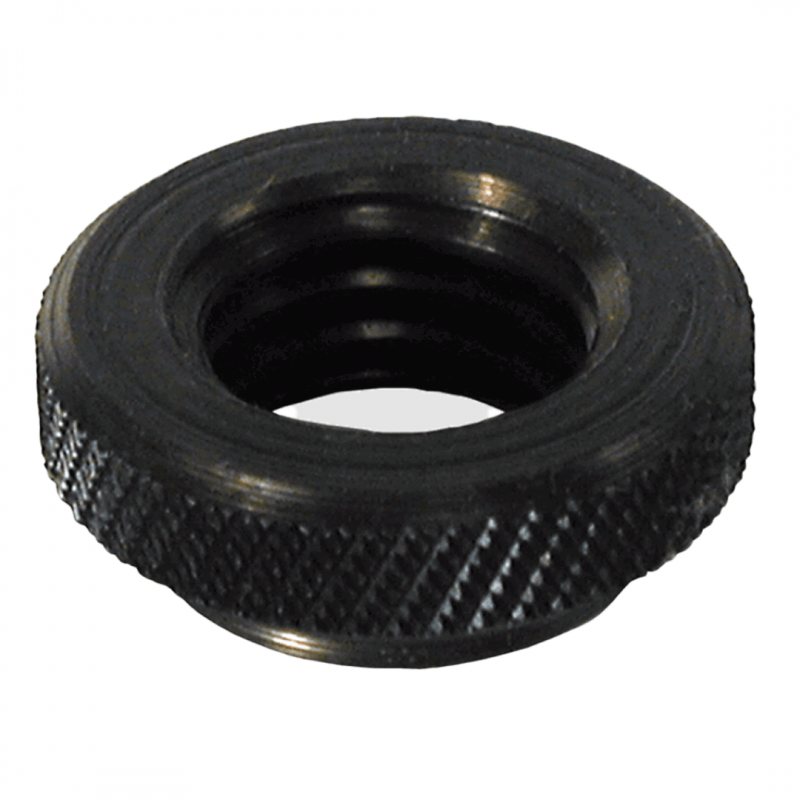

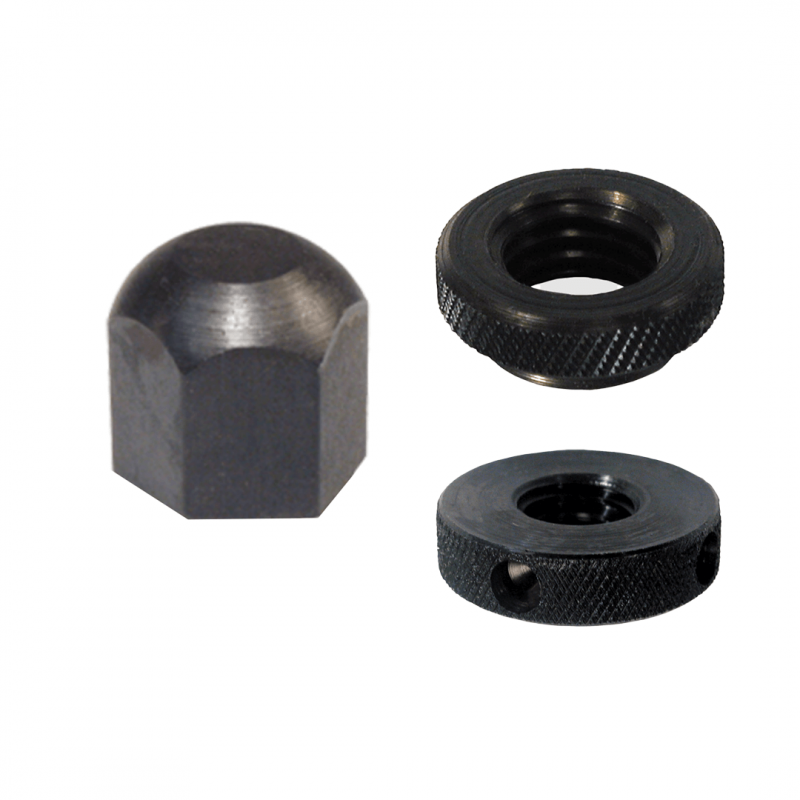

Carr lane offer a range of knurled check nuts , knurled nuts and acorn nuts. Knurled check nuts are versatile lock nuts designed for easy finger tightening. Available in thread sizes ranging from #10-32 to 5/8-11 (M5 to M16 in metric). Knurled nuts are robust lock nuts that can be tightened by hand or with a 1/4" or 6mm diameter extension rod. Features a large contact surface. Available in thread sizes from 1/4-20 to 5/8-11 (M6 to M16 in metric). Made in the USA. Acorn nuts are used to cover the end of a stud, preventing snagging and protecting the threads. Available in thread sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric).
| Part Number | Material Number | Type | Metric or Imperial | Thread | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CL-1024-TSJN | Knurled Check Nut | Imperial | #10-24 | £4.18 £5.02 Inc. VAT |
|
|
| CL-1032-TSJN | Knurled Check Nut | Imperial | #10-32 | £4.18 £5.02 Inc. VAT |
|
|
| CLM-5-TSJN | Knurled Check Nut | Metric | M5 | £7.00 £8.40 Inc. VAT |
|
|
| CL-1420-TSJN | Knurled Check Nut | Imperial | 1/4-20 | £3.97 £4.76 Inc. VAT |
|
|
| CLM-6-TSJN | Knurled Check Nut | Metric | M6 | £6.94 £8.33 Inc. VAT |
|
|
| CL-51618-TSJN | Knurled Check Nut | Imperial | 5/16-18 | £4.50 £5.40 Inc. VAT |
|
|
| CLM-8-TSJN | Knurled Check Nut | Metric | M8 | £7.46 £8.95 Inc. VAT |
|
|
| CL-3816-TSJN | Knurled Check Nut | Imperial | 3/8-16 | £4.52 £5.42 Inc. VAT |
|
|
| CLM-10-TSJN | Knurled Check Nut | Metric | M10 | £7.96 £9.55 Inc. VAT |
|
|
| CL-1213-TSJN | Knurled Check Nut | Imperial | 1/2-13 | £4.79 £5.75 Inc. VAT |
|
|
| CLM-12-TSJN | Knurled Check Nut | Metric | M12 | £8.17 £9.80 Inc. VAT |
|
|
| CL-5811-TSJN | Knurled Check Nut | Imperial | 5/8-11 | £8.63 £10.36 Inc. VAT |
|
|
| CLM-16-TSJN | Knurled Check Nut | Metric | M16 | £8.80 £10.56 Inc. VAT |
|
|
| CLM-6-KN | Knurled Nut | Metric | M6 | £9.08 £10.90 Inc. VAT |
|
|
| CL-2-KN | Knurled Nut | Imperial | 1/2-13 | £8.04 £9.65 Inc. VAT |
|
|
| CL-3-KN | Knurled Nut | Imperial | 5/8-11 | £9.12 £10.94 Inc. VAT |
|
|
| CLM-8-KN | Knurled Nut | Metric | M8 | £10.00 £12.00 Inc. VAT |
|
|
| CLM-10-KN | Knurled Nut | Metric | M10 | £10.06 £12.07 Inc. VAT |
|
|
| CLM-12-KN | Knurled Nut | Metric | M12 | £10.15 £12.18 Inc. VAT |
|
|
| CLM-16-KN | Knurled Nut | Metric | M16 | £12.85 £15.42 Inc. VAT |
|
|
| CL-0-KN | Knurled Nut | Imperial | 1/4-20 | £9.35 £11.22 Inc. VAT |
|
|
| CL-00-KN | Knurled Nut | Imperial | 5/16-18 | £8.20 £9.84 Inc. VAT |
|
|
| CL-1-KN | Knurled Nut | Imperial | 3/8-16 | £7.75 £9.30 Inc. VAT |
|
|
| CL-0-AN | Acorn Nut | Imperial | 1/4-20 | £4.68 £5.62 Inc. VAT |
|
|
| CL-1-AN | Acorn Nut | Imperial | 5/16-18 | £4.84 £5.81 Inc. VAT |
|
|
| CL-5-AN | Acorn Nut | Imperial | 3/8-16 | £5.36 £6.43 Inc. VAT |
|
|
| CL-2-AN | Acorn Nut | Imperial | 1/2-13 | £6.00 £7.20 Inc. VAT |
|
|
| CL-3-AN | Acorn Nut | Imperial | 5/8-11 | £7.96 £9.55 Inc. VAT |
|
|
| CL-4-AN | Acorn Nut | Imperial | 3/4-10 | £12.44 £14.93 Inc. VAT |
|
Carr lane offer a range of knurled check nuts , knurled nuts and acorn nuts. Knurled check nuts are versatile lock nuts designed for easy finger tightening. Available in thread sizes ranging from #10-32 to 5/8-11 (M5 to M16 in metric). Knurled nuts are robust lock nuts that can be tightened by hand or with a 1/4" or 6mm diameter extension rod. Features a large contact surface. Available in thread sizes from 1/4-20 to 5/8-11 (M6 to M16 in metric). Made in the USA. Acorn nuts are used to cover the end of a stud, preventing snagging and protecting the threads. Available in thread sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric).
| Quantity | Unit discount | You Save |
|---|
Carr Lanes Hex and jam nuts are available in various thread sizes in both metric and imperial sizing to fit the needs of your application. They are also available in steel and stainless teel variants.
Carr Lane hand knobs are designed to provide an efficient and ergonomic method of manually adjusting and controlling machinery and applications HYQUIP supply the full range of Carr Lane Knobs including Star, Hand and Fluted, available in a variety of materials and sizes.
Durable thumb screws featuring a knurled head for a secure grip, making it ideal for hand-tightening in light clamping tasks. It is offered in steel with thread sizes ranging from #10-32 to 1/2-13 (M5 to M12 in metric) and comes in various lengths. Additionally, stainless steel versions are available with thread sizes from #10-32 to 3/8-16, also in multiple length options.
Carr Lane Head Press Fit Bushings are a variation of standard press fit bushings, featuring a head designed to withstand significant axial loads. These bushings are permanently installed into the jig plate and are typically used for single-operation drilling or reaming, where the bushings are not intended to be replaced throughout the tooling's lifespan. The head of these bushings can either remain exposed or be recessed by counterboring the installation hole.
The ideal fixture key for a wide range of applications. These keys are interchangeable, as they all fit into a standard 5/8" reamed hole. Easily mount any fixture on any machine tool by simply switching keys. No need to slot the underside of fixtures. Achieves concentricity with a tolerance of .0005" TIR or better. Secure the fixture from above or below using a hex wrench. Compatible with table-slot sizes ranging from 3/8" to 13/16" (12 to 22mm metric).
Carr Lane offer various types of washers including flat washers, spherical washers and knurled face washers. Flat washers have a serrated surface designed to stop two parts from slipping relative to one another. Spherical Washers are robust two-piece washers designed to adjust when a stud and clamping surface are not perfectly perpendicular. These items are available in metric and imperial sizing as well as steel and stainless-steel options for selected products.
Carr Lane Lock screws can be used on either the "slip" side or the "fixed" side of a slip/fixed renewable bushing. Lockscrews are the most popular locking device for renewable drill bushings. These Lockscrews are designed and manufactured to be simple, strong, compact, and economical. Carr Lane lockscrews are available in a wide variety of sizes to accommodate renewable bushings ranging from 3/16" to 5" body diameter. TW series also available for thin-wall bushings. These Lockscrews are now only available in packs of 5.
