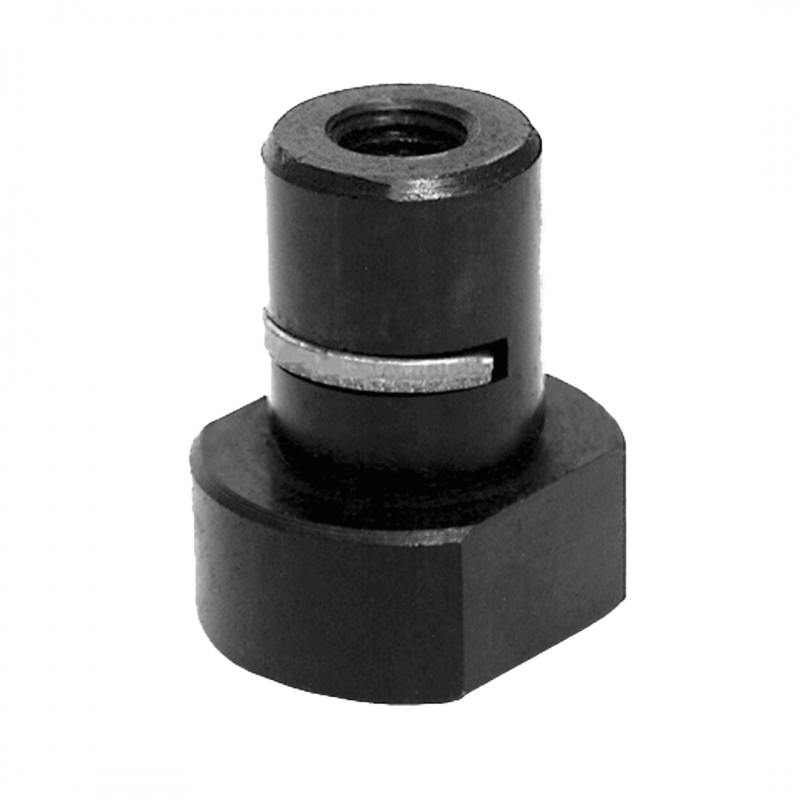

Carr Lane Sure-Lock Fixture Keys

The ideal fixture key for a wide range of applications. These keys are interchangeable, as they all fit into a standard 5/8" reamed hole. Easily mount any fixture on any machine tool by simply switching keys. No need to slot the underside of fixtures. Achieves concentricity with a tolerance of .0005" TIR or better. Secure the fixture from above or below using a hex wrench. Compatible with table-slot sizes ranging from 3/8" to 13/16" (12 to 22mm metric).

  • Metric and Imperial sizes available
  • Table Slot Size - 3/8 - 13/16 or 12mm - 22mm

Print page

Products
Downloads
Description
Part Number Material Number Metric or Imperial External Diameter Table Slot Size Price Add to Parts List
CL-22-SLFK CL-22-SLFK Metric .8661 22mm £36.82
£44.18 Inc. VAT
CL-12-SLFK CL-12-SLFK Metric .4724 12mm £35.11
£42.13 Inc. VAT
CL-14-SLFK CL-14-SLFK Metric .5512 14mm £33.49
£40.19 Inc. VAT
CL-16-SLFK CL-16-SLFK Metric .6299 16mm £32.87
£39.44 Inc. VAT
CL-18-SLFK CL-18-SLFK Metric .7087 18mm £32.87
£39.44 Inc. VAT
CL-20-SLFK CL-20-SLFK Metric 7874 20mm £36.10
£43.32 Inc. VAT
CL-437-SLFK CL-437-SLFK Imperial .4375 7/16 £31.52
£37.82 Inc. VAT
CL-6875-SLFK CL-6875-SLFK Imperial .6875 11/16 £32.14
£38.57 Inc. VAT
CL-500-SLFK CL-500-SLFK Imperial .5000 1/2 £31.52
£37.82 Inc. VAT
CL-7500-SLFK CL-7500-SLFK Imperial .7500 3/4 £33.83
£40.60 Inc. VAT
CL-5000-SLFK CL-5000-SLFK Imperial .5000 1/2 £31.52
£37.82 Inc. VAT
CL-8125-SLFK CL-8125-SLFK Imperial .8125 13/16 £37.75
£45.30 Inc. VAT
CL-562-SLFK CL-562-SLFK Imperial .5625 9/16 £31.52
£37.82 Inc. VAT
CL-5625-SLFK CL-5625-SLFK Imperial .5625 9/16 £31.52
£37.82 Inc. VAT
CL-625-SLFK CL-625-SLFK Imperial .6250 5/8 £32.14
£38.57 Inc. VAT
CL-6250-SLFK CL-6250-SLFK Imperial .6250 5/8 £31.52
£37.82 Inc. VAT
CL-375-SLFK CL-375-SLFK Imperial .3750 3/8 £31.52
£37.82 Inc. VAT
CL-687-SLFK CL-687-SLFK Imperial .6875 11/16 £31.52
£37.82 Inc. VAT
Carr Lane Sure-Lock Fixture Keys

Carr Lane Sure-Lock Fixture Keys

The ideal fixture key for a wide range of applications. These keys are interchangeable, as they all fit into a standard 5/8" reamed hole. Easily mount any fixture on any machine tool by simply switching keys. No need to slot the underside of fixtures. Achieves concentricity with a tolerance of .0005" TIR or better. Secure the fixture from above or below using a hex wrench. Compatible with table-slot sizes ranging from 3/8" to 13/16" (12 to 22mm metric).

Options:

  • Metric and Imperial sizes available
  • Table Slot Size - 3/8 - 13/16 or 12mm - 22mm

Quantity Unit discount You Save
