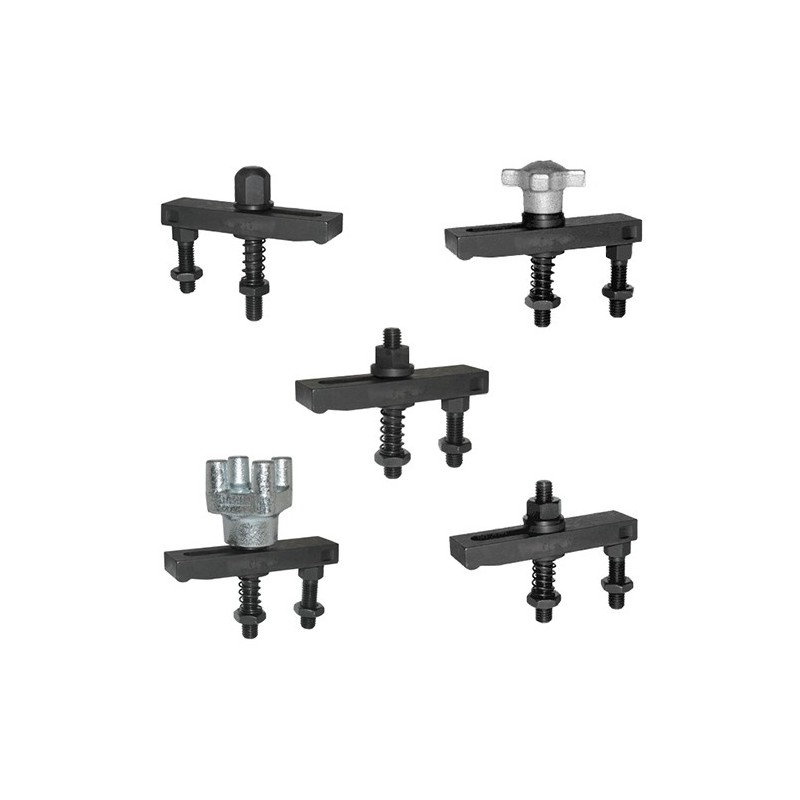

Carr Lane Slotted Heel Clamp Strap Assemblies

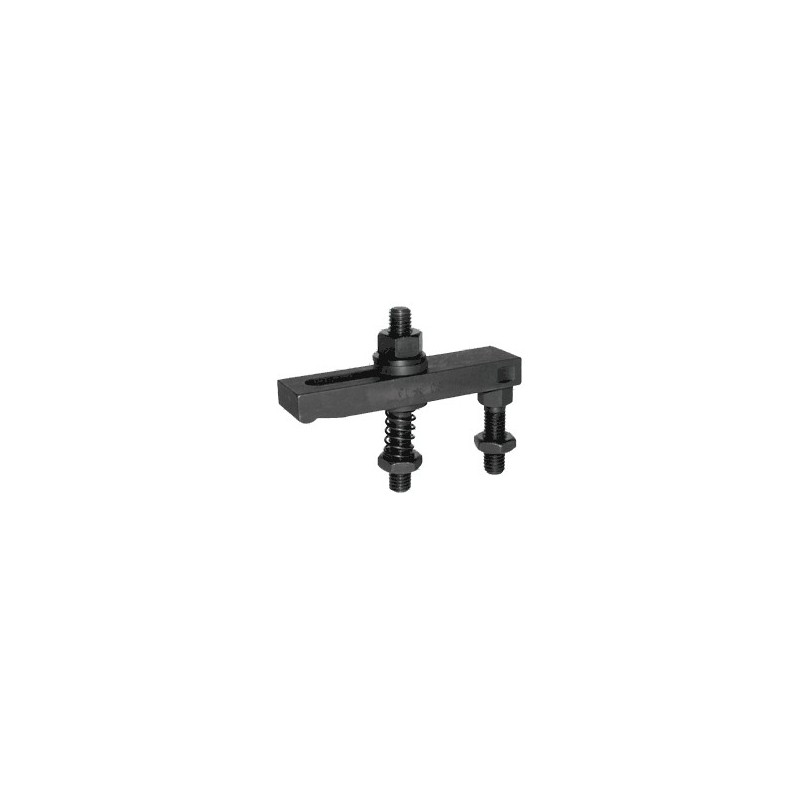

Carr Lane Slotted Heel Clamp Strap with Spherical Nut and Washer

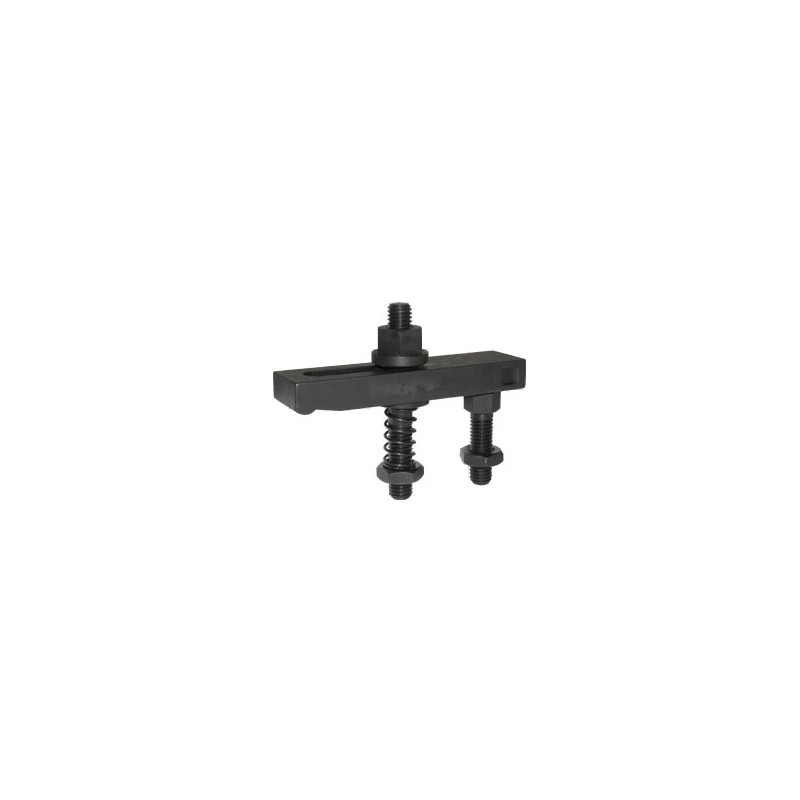

Carr Lane Slotted Heel Clamp Strap with Flange Nut

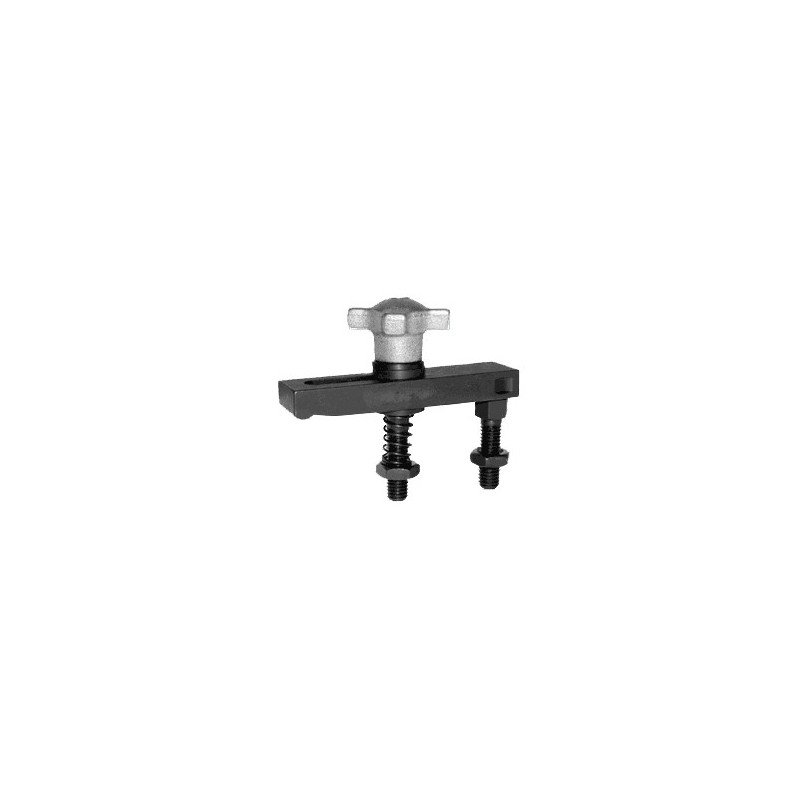

Carr Lane Slotted Heel Clamp Strap with Hand Knob with Spherical Washer

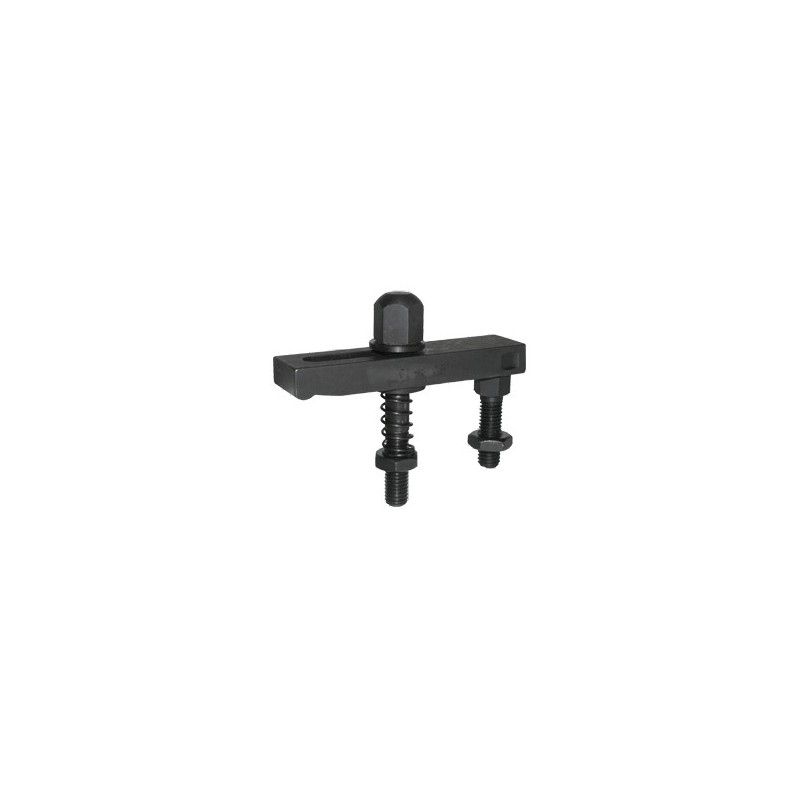

Carr Lane Slotted Heel Clamp Strap with Acorn Nut with Spherical Washer

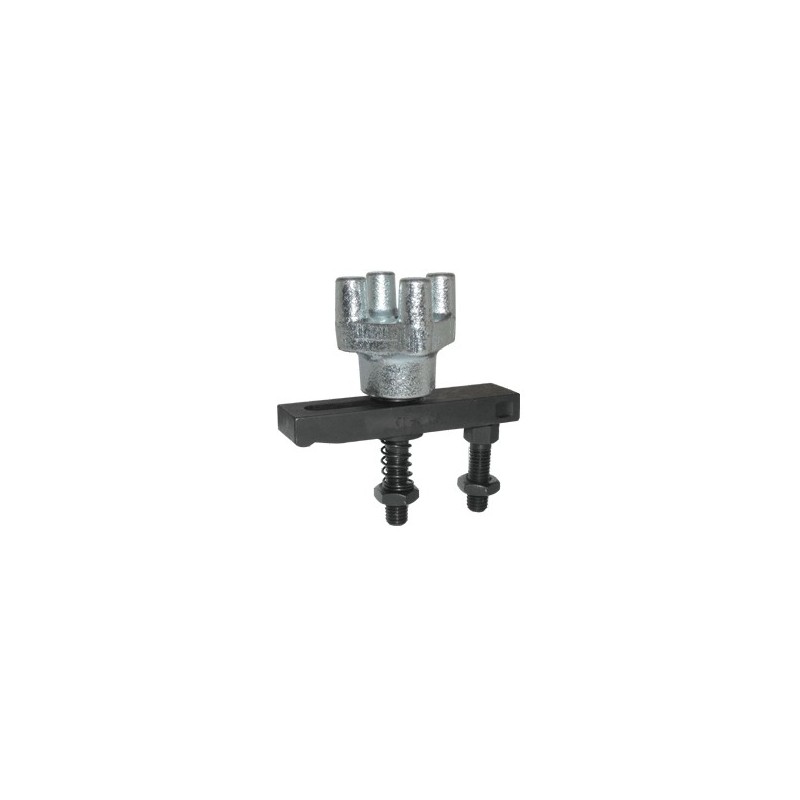

Carr Lane Slotted Heel Clamp Strap with Bar Knob with Spherical Washer

Carr Lane Slotted-Heel Clamp Strap Assemblies

A complete clamp-strap assembly using a slotted steel strap, also in this category

Print page

First Name *

Last Name *

Position *

Email *

Company Name *

Contact Number *

Town/City *

Message *

Products

Downloads

Description

Part Number	Assembly Options	Metric or Imperial	Length	Thread	Internal Diameter	Price
CL-8-SHA-1 CL-8-SHA-1	Spherical Nut and Washer	Imperial	6	3/8-16	2-25/32	£42.66 £51.19 Inc. VAT
CL-1B-SHA-1 CL-1B-SHA-1	Spherical Nut and Washer	Imperial	3	5/16-18	1-11/32	£39.94 £47.93 Inc. VAT
CL-1-SHA-1 CL-1-SHA-1	Spherical Nut and Washer	Imperial	2-1/2	1/4-20	1-3/32	£31.53 £37.84 Inc. VAT
CLM-31-SHA-1 CLM-31-SHA-1	Spherical Nut and Washer	Metric	8	M20	3-5/8	£128.80 £154.56 Inc. VAT
CLM-27-SHA-1 CLM-27-SHA-1	Spherical Nut and Washer	Metric	6	M20	2-5/8	£114.86 £137.83 Inc. VAT
CLM-24-SHA-1 CLM-24-SHA-1	Spherical Nut and Washer	Metric	6	M16	2-11/16	£67.95 £81.54 Inc. VAT
CLM-20-SHA-1 CLM-20-SHA-1	Spherical Nut and Washer	Metric	4	M16	1-11/16	£60.53 £72.64 Inc. VAT
CLM-6-SHA-1 CLM-6-SHA-1	Spherical Nut and Washer	Metric	5	M10	2-9/32	£44.02 £52.82 Inc. VAT
CL-22-SHA-1 CL-22-SHA-1	Spherical Nut and Washer	Imperial	5	5/8-11	2-3/16	£59.80 £71.76 Inc. VAT
CLM-3-SHA-1 CLM-3-SHA-1	Spherical Nut and Washer	Metric	3-1/2	M10	1-17/32	£40.30 £48.36 Inc. VAT
CLM-0-SHA-1 CLM-0-SHA-1	Spherical Nut and Washer	Metric	2	M6	27/32	£40.20 £48.24 Inc. VAT
CL-27-SHA-1 CL-27-SHA-1	Spherical Nut and Washer	Imperial	6	3/4-10	2-5/8	£81.11 £97.33 Inc. VAT
CL-10-SHA-1 CL-10-SHA-1	Spherical Nut and Washer	Imperial	4	1/2-13	1-3/4	£43.80 £52.56 Inc. VAT
CL-14-SHA-1 CL-14-SHA-1	Spherical Nut and Washer	Imperial	6	1/2-13	2-3/4	£49.00 £58.80 Inc. VAT
CLM-1A-SHA-1 CLM-1A-SHA-1	Spherical Nut and Washer	Metric	2-1/2	M8	27/32	£40.80 £48.96 Inc. VAT
CL-4-SHA-1 CL-4-SHA-1	Spherical Nut and Washer	Imperial	4	3/8-16	1-25/32	£40.96 £49.15 Inc. VAT
CL-24-SHA-1 CL-24-SHA-1	Spherical Nut and Washer	Imperial	6	5/8-11	2-11/16	£70.83 £85.00 Inc. VAT
CLM-12-SHA-1 CLM-12-SHA-1	Spherical Nut and Washer	Metric	5	M12	2-1/4	£71.22 £85.46 Inc. VAT
CLM-9-SHA-1 CLM-9-SHA-1	Spherical Nut and Washer	Metric	3-1/2	M12	1-1/2	£64.02 £76.82 Inc. VAT
CL-2-SHA-1 CL-2-SHA-1	Spherical Nut and Washer	Imperial	3	3/8-16	1-9/32	£37.42 £44.90 Inc. VAT
CL-1A-SHA-1 CL-1A-SHA-1	Spherical Nut and Washer	Imperial	2-1/2	5/16-18	27/32	£39.11 £46.93 Inc. VAT
CL-0-SHA-1 CL-0-SHA-1	Spherical Nut and Washer	Imperial	2	1/4-20	27/32	£31.13 £37.36 Inc. VAT
CLM-29-SHA-1 CLM-29-SHA-1	Spherical Nut and Washer	Metric	7	M20	3-1/8	£121.08 £145.30 Inc. VAT
CLM-25-SHA-1 CLM-25-SHA-1	Spherical Nut and Washer	Metric	6-1/2	M16	2-15/16	£70.08 £84.10 Inc. VAT
CLM-22-SHA-1 CLM-22-SHA-1	Spherical Nut and Washer	Metric	5	M16	2-3/16	£61.52 £73.82 Inc. VAT
CLM-14-SHA-1 CLM-14-SHA-1	Spherical Nut and Washer	Metric	6	M12	2-3/4	£60.84 £73.01 Inc. VAT
CL-29-SHA-1 CL-29-SHA-1	Spherical Nut and Washer	Imperial	7	3/4-10	3-1/8	£85.37 £102.44 Inc. VAT
CL-12-SHA-1 CL-12-SHA-1	Spherical Nut and Washer	Imperial	5	1/2-13	2-1/4	£44.52 £53.42 Inc. VAT
CLM-8-SHA-1 CLM-8-SHA-1	Spherical Nut and Washer	Metric	6	M10	2-25/32	£53.96 £64.75 Inc. VAT
CLM-4-SHA-1 CLM-4-SHA-1	Spherical Nut and Washer	Metric	4	M10	1-25/32	£40.30 £48.36 Inc. VAT
CLM-2-SHA-1 CLM-2-SHA-1	Spherical Nut and Washer	Metric	3	M10	1-9/32	£39.15 £46.98 Inc. VAT
CL-20-SHA-1 CL-20-SHA-1	Spherical Nut and Washer	Imperial	4	5/8-11	1-11/16	£52.97 £63.56 Inc. VAT
CLM-1-SHA-1 CLM-1-SHA-1	Spherical Nut and Washer	Metric	2-1/2	M6	1-3/32	£41.44 £49.73 Inc. VAT
CL-6-SHA-1 CL-6-SHA-1	Spherical Nut and Washer	Imperial	5	3/8-16	2-9/32	£42.53 £51.04 Inc. VAT
CL-25-SHA-1 CL-25-SHA-1	Spherical Nut and Washer	Imperial	6-1/2	5/8-11	2-15/16	£64.58 £77.50 Inc. VAT
CL-9-SHA-1 CL-9-SHA-1	Spherical Nut and Washer	Imperial	3-1/2	1/2-13	1-1/2	£43.42 £52.10 Inc. VAT
CLM-1B-SHA-1 CLM-1B-SHA-1	Spherical Nut and Washer	Metric	3	M8	1-11/32	£46.66 £55.99 Inc. VAT
CL-3-SHA-1 CL-3-SHA-1	Spherical Nut and Washer	Imperial	3-1/2	3/8-16	1-17/32	£37.55 £45.06 Inc. VAT
CLM-10-SHA-1 CLM-10-SHA-1	Spherical Nut and Washer	Metric	4	M12	1-3/4	£68.38 £82.06 Inc. VAT
CL-31-SHA-1 CL-31-SHA-1	Spherical Nut and Washer	Imperial	8	3/4-10	3-5/8	£99.87 £119.84 Inc. VAT
CL-27-SHA-2 CL-27-SHA-2	Flange Nut	Imperial	6	3/4-10	2-5/8	£75.22 £90.26 Inc. VAT
CL-10-SHA-2 CL-10-SHA-2	Flange Nut	Imperial	4	1/2-13	1-3/4	£42.12 £50.54 Inc. VAT
CL-14-SHA-2 CL-14-SHA-2	Flange Nut	Imperial	6	1/2-13	2-3/4	£45.66 £54.79 Inc. VAT
CLM-1A-SHA-2 CLM-1A-SHA-2	Flange Nut	Metric	2-1/2	M8	27/32	£47.02 £56.42 Inc. VAT
CL-4-SHA-2 CL-4-SHA-2	Flange Nut	Imperial	4	3/8-16	1-25/32	£35.75 £42.90 Inc. VAT
CL-24-SHA-2 CL-24-SHA-2	Flange Nut	Imperial	6	5/8-11	2-11/16	£65.27 £78.32 Inc. VAT
CLM-12-SHA-2 CLM-12-SHA-2	Flange Nut	Metric	5	M12	2-1/4	£67.20 £80.64 Inc. VAT
CLM-9-SHA-2 CLM-9-SHA-2	Flange Nut	Metric	3-1/2	M12	1-1/2	£65.70 £78.84 Inc. VAT
CLM-4-SHA-2 CLM-4-SHA-2	Flange Nut	Metric	4	M10	1-25/32	£42.93 £51.52 Inc. VAT
CLM-2-SHA-2 CLM-2-SHA-2	Flange Nut	Metric	3	M10	1-9/32	£41.79 £50.15 Inc. VAT
CL-2-SHA-2 CL-2-SHA-2	Flange Nut	Imperial	3	3/8-16	1-9/32	£32.85 £39.42 Inc. VAT
CL-1A-SHA-2 CL-1A-SHA-2	Flange Nut	Imperial	2-1/2	5/16-18	27/32	£36.08 £43.30 Inc. VAT
CL-0-SHA-2 CL-0-SHA-2	Flange Nut	Imperial	2	1/4-20	27/32	£30.09 £36.11 Inc. VAT
CLM-29-SHA-2 CLM-29-SHA-2	Flange Nut	Metric	7	M20	3-1/8	£122.16 £146.59 Inc. VAT
CLM-25-SHA-2 CLM-25-SHA-2	Flange Nut	Metric	6-1/2	M16	2-15/16	£78.06 £93.67 Inc. VAT
CLM-22-SHA-2 CLM-22-SHA-2	Flange Nut	Metric	5	M16	2-3/16	£65.56 £78.67 Inc. VAT
CLM-14-SHA-2 CLM-14-SHA-2	Flange Nut	Metric	6	M12	2-3/4	£65.20 £78.24 Inc. VAT
CL-29-SHA-2 CL-29-SHA-2	Flange Nut	Imperial	7	3/4-10	3-1/8	£79.82 £95.78 Inc. VAT
CL-12-SHA-2 CL-12-SHA-2	Flange Nut	Imperial	5	1/2-13	2-1/4	£44.27 £53.12 Inc. VAT
CLM-8-SHA-2 CLM-8-SHA-2	Flange Nut	Metric	6	M10	2-25/32	£45.47 £54.56 Inc. VAT
CL-6-SHA-2 CL-6-SHA-2	Flange Nut	Imperial	5	3/8-16	2-9/32	£38.86 £46.63 Inc. VAT
CL-20-SHA-2 CL-20-SHA-2	Flange Nut	Imperial	4	5/8-11	1-11/16	£48.34 £58.01 Inc. VAT
CLM-1-SHA-2 CLM-1-SHA-2	Flange Nut	Metric	2-1/2	M6	1-3/32	£41.19 £49.43 Inc. VAT
CL-25-SHA-2 CL-25-SHA-2	Flange Nut	Imperial	6-1/2	5/8-11	2-15/16	£61.01 £73.21 Inc. VAT
CL-9-SHA-2 CL-9-SHA-2	Flange Nut	Imperial	3-1/2	1/2-13	1-1/2	£41.28 £49.54 Inc. VAT
CL-31-SHA-2 CL-31-SHA-2	Flange Nut	Imperial	8	3/4-10	3-5/8	£96.45 £115.74 Inc. VAT
CLM-1B-SHA-2 CLM-1B-SHA-2	Flange Nut	Metric	3	M8	1-11/32	£47.34 £56.81 Inc. VAT
CL-3-SHA-2 CL-3-SHA-2	Flange Nut	Imperial	3-1/2	3/8-16	1-17/32	£35.75 £42.90 Inc. VAT
CLM-10-SHA-2 CLM-10-SHA-2	Flange Nut	Metric	4	M12	1-3/4	£64.36 £77.23 Inc. VAT
CLM-6-SHA-2 CLM-6-SHA-2	Flange Nut	Metric	5	M10	2-9/32	£45.77 £54.92 Inc. VAT
CL-22-SHA-2 CL-22-SHA-2	Flange Nut	Imperial	5	5/8-11	2-3/16	£54.40 £65.28 Inc. VAT
CLM-3-SHA-2 CLM-3-SHA-2	Flange Nut	Metric	3-1/2	M10	1-17/32	£42.93 £51.52 Inc. VAT
CLM-0-SHA-2 CLM-0-SHA-2	Flange Nut	Metric	2	M6	27/32	£40.70 £48.84 Inc. VAT
CL-8-SHA-2 CL-8-SHA-2	Flange Nut	Imperial	6	3/8-16	2-25/32	£43.61 £52.33 Inc. VAT
CL-1B-SHA-2 CL-1B-SHA-2	Flange Nut	Imperial	3	5/16-18	1-11/32	£37.20 £44.64 Inc. VAT
CL-1-SHA-2 CL-1-SHA-2	Flange Nut	Imperial	2-1/2	1/4-20	1-3/32	£29.54 £35.45 Inc. VAT
CLM-31-SHA-2 CLM-31-SHA-2	Flange Nut	Metric	8	M20	3-5/8	£128.98 £154.78 Inc. VAT
CLM-27-SHA-2 CLM-27-SHA-2	Flange Nut	Metric	6	M20	2-5/8	£111.58 £133.90 Inc. VAT
CLM-24-SHA-2 CLM-24-SHA-2	Flange Nut	Metric	6	M16	2-11/16	£73.43 £88.12 Inc. VAT
CLM-20-SHA-2 CLM-20-SHA-2	Flange Nut	Metric	4	M16	1-11/16	£63.96 £76.75 Inc. VAT
CL-4-SHA-4 CL-4-SHA-4	Hand Knob with Spherical Washer	Imperial	4	3/8-16	1-25/32	£48.72 £58.46 Inc. VAT
CL-14-SHA-4 CL-14-SHA-4	Hand Knob with Spherical Washer	Imperial	6	1/2-13	2-3/4	£58.13 £69.76 Inc. VAT
CLM-1A-SHA-4 CLM-1A-SHA-4	Hand Knob with Spherical Washer	Metric	2-1/2	M8	27/32	£47.79 £57.35 Inc. VAT
CLM-12-SHA-4 CLM-12-SHA-4	Hand Knob with Spherical Washer	Metric	5	M12	2-1/4	£75.47 £90.56 Inc. VAT
CLM-9-SHA-4 CLM-9-SHA-4	Hand Knob with Spherical Washer	Metric	3-1/2	M12	1-1/2	£68.27 £81.92 Inc. VAT
CL-24-SHA-4 CL-24-SHA-4	Hand Knob with Spherical Washer	Imperial	6	5/8-11	2-11/16	£75.64 £90.77 Inc. VAT
CLM-22-SHA-4 CLM-22-SHA-4	Hand Knob with Spherical Washer	Metric	5	M16	2-3/16	£66.63 £79.96 Inc. VAT
CLM-14-SHA-4 CLM-14-SHA-4	Hand Knob with Spherical Washer	Metric	6	M12	2-3/4	£70.60 £84.72 Inc. VAT
CL-29-SHA-4 CL-29-SHA-4	Hand Knob with Spherical Washer	Imperial	7	3/4-10	3-1/8	£90.92 £109.10 Inc. VAT
CL-12-SHA-4 CL-12-SHA-4	Hand Knob with Spherical Washer	Imperial	5	1/2-13	2-1/4	£54.93 £65.92 Inc. VAT
CLM-8-SHA-4 CLM-8-SHA-4	Hand Knob with Spherical Washer	Metric	6	M10	2-25/32	£51.21 £61.45 Inc. VAT
CLM-4-SHA-4 CLM-4-SHA-4	Hand Knob with Spherical Washer	Metric	4	M10	1-25/32	£48.72 £58.46 Inc. VAT
CLM-2-SHA-4 CLM-2-SHA-4	Hand Knob with Spherical Washer	Metric	3	M10	1-9/32	£46.16 £55.39 Inc. VAT
CL-2-SHA-4 CL-2-SHA-4	Hand Knob with Spherical Washer	Imperial	3	3/8-16	1-9/32	£46.16 £55.39 Inc. VAT
CL-1A-SHA-4 CL-1A-SHA-4	Hand Knob with Spherical Washer	Imperial	2-1/2	5/16-18	27/32	£47.15 £56.58 Inc. VAT
CL-0-SHA-4 CL-0-SHA-4	Hand Knob with Spherical Washer	Imperial	2	1/4-20	27/32	£39.64 £47.57 Inc. VAT
CLM-29-SHA-4 CLM-29-SHA-4	Hand Knob with Spherical Washer	Metric	7	M20	3-1/8	£121.26 £145.51 Inc. VAT
CLM-25-SHA-4 CLM-25-SHA-4	Hand Knob with Spherical Washer	Metric	6-1/2	M16	2-15/16	£72.72 £87.26 Inc. VAT
CL-20-SHA-4 CL-20-SHA-4	Hand Knob with Spherical Washer	Imperial	4	5/8-11	1-11/16	£63.14 £75.77 Inc. VAT
CLM-1-SHA-4 CLM-1-SHA-4	Hand Knob with Spherical Washer	Metric	2-1/2	M6	1-3/32	£44.99 £53.99 Inc. VAT
CL-6-SHA-4 CL-6-SHA-4	Hand Knob with Spherical Washer	Imperial	5	3/8-16	2-9/32	£52.18 £62.62 Inc. VAT
CL-25-SHA-4 CL-25-SHA-4	Hand Knob with Spherical Washer	Imperial	6-1/2	5/8-11	2-15/16	£72.62 £87.14 Inc. VAT
CL-9-SHA-4 CL-9-SHA-4	Hand Knob with Spherical Washer	Imperial	3-1/2	1/2-13	1-1/2	£53.87 £64.64 Inc. VAT
CLM-10-SHA-4 CLM-10-SHA-4	Hand Knob with Spherical Washer	Metric	4	M12	1-3/4	£72.63 £87.16 Inc. VAT
CL-31-SHA-4 CL-31-SHA-4	Hand Knob with Spherical Washer	Imperial	8	3/4-10	3-5/8	£105.42 £126.50 Inc. VAT
CLM-1B-SHA-4 CLM-1B-SHA-4	Hand Knob with Spherical Washer	Metric	3	M8	1-11/32	£51.48 £61.78 Inc. VAT
CL-3-SHA-4 CL-3-SHA-4	Hand Knob with Spherical Washer	Imperial	3-1/2	3/8-16	1-17/32	£45.74 £54.89 Inc. VAT
CLM-20-SHA-4 CLM-20-SHA-4	Hand Knob with Spherical Washer	Metric	4	M16	1-11/16	£64.37 £77.24 Inc. VAT
CLM-6-SHA-4 CLM-6-SHA-4	Hand Knob with Spherical Washer	Metric	5	M10	2-9/32	£52.18 £62.62 Inc. VAT
CL-22-SHA-4 CL-22-SHA-4	Hand Knob with Spherical Washer	Imperial	5	5/8-11	2-3/16	£65.36 £78.43 Inc. VAT
CLM-3-SHA-4 CLM-3-SHA-4	Hand Knob with Spherical Washer	Metric	3-1/2	M10	1-17/32	£45.74 £54.89 Inc. VAT
CLM-0-SHA-4 CLM-0-SHA-4	Hand Knob with Spherical Washer	Metric	2	M6	27/32	£44.32 £53.18 Inc. VAT
CL-8-SHA-4 CL-8-SHA-4	Hand Knob with Spherical Washer	Imperial	6	3/8-16	2-25/32	£51.21 £61.45 Inc. VAT
CL-1B-SHA-4 CL-1B-SHA-4	Hand Knob with Spherical Washer	Imperial	3	5/16-18	1-11/32	£47.85 £57.42 Inc. VAT
CL-1-SHA-4 CL-1-SHA-4	Hand Knob with Spherical Washer	Imperial	2-1/2	1/4-20	1-3/32	£39.64 £47.57 Inc. VAT
CLM-31-SHA-4 CLM-31-SHA-4	Hand Knob with Spherical Washer	Metric	8	M20	3-5/8	£133.76 £160.51 Inc. VAT
CLM-27-SHA-4 CLM-27-SHA-4	Hand Knob with Spherical Washer	Metric	6	M20	2-5/8	£112.01 £134.41 Inc. VAT
CLM-24-SHA-4 CLM-24-SHA-4	Hand Knob with Spherical Washer	Metric	6	M16	2-11/16	£75.64 £90.77 Inc. VAT
CL-27-SHA-4 CL-27-SHA-4	Hand Knob with Spherical Washer	Imperial	6	3/4-10	2-5/8	£86.84 £104.21 Inc. VAT
CL-10-SHA-4 CL-10-SHA-4	Hand Knob with Spherical Washer	Imperial	4	1/2-13	1-3/4	£53.87 £64.64 Inc. VAT
CL-24-SHA-5 CL-24-SHA-5	Acorn Nut with Spherical Washer	Imperial	6	5/8-11	2-11/16	£74.20 £89.04 Inc. VAT
CL-0-SHA-5 CL-0-SHA-5	Acorn Nut with Spherical Washer	Imperial	2	1/4-20	27/32	£32.91 £39.49 Inc. VAT
CL-29-SHA-5 CL-29-SHA-5	Acorn Nut with Spherical Washer	Imperial	7	3/4-10	3-1/8	£85.66 £102.79 Inc. VAT
CL-12-SHA-5 CL-12-SHA-5	Acorn Nut with Spherical Washer	Imperial	5	1/2-13	2-1/4	£46.36 £55.63 Inc. VAT
CL-2-SHA-5 CL-2-SHA-5	Acorn Nut with Spherical Washer	Imperial	3	3/8-16	1-9/32	£36.32 £43.58 Inc. VAT
CL-1A-SHA-5 CL-1A-SHA-5	Acorn Nut with Spherical Washer	Imperial	2-1/2	5/16-18	27/32	£39.77 £47.72 Inc. VAT
CL-20-SHA-5 CL-20-SHA-5	Acorn Nut with Spherical Washer	Imperial	4	5/8-11	1-11/16	£56.34 £67.61 Inc. VAT
CL-6-SHA-5 CL-6-SHA-5	Acorn Nut with Spherical Washer	Imperial	5	3/8-16	2-9/32	£41.58 £49.90 Inc. VAT
CL-9-SHA-5 CL-9-SHA-5	Acorn Nut with Spherical Washer	Imperial	3-1/2	1/2-13	1-1/2	£44.88 £53.86 Inc. VAT
CL-25-SHA-5 CL-25-SHA-5	Acorn Nut with Spherical Washer	Imperial	6-1/2	5/8-11	2-15/16	£67.41 £80.89 Inc. VAT
CL-3-SHA-5 CL-3-SHA-5	Acorn Nut with Spherical Washer	Imperial	3-1/2	3/8-16	1-17/32	£38.70 £46.44 Inc. VAT
CL-31-SHA-5 CL-31-SHA-5	Acorn Nut with Spherical Washer	Imperial	8	3/4-10	3-5/8	£98.88 £118.66 Inc. VAT
CL-1-SHA-5 CL-1-SHA-5	Acorn Nut with Spherical Washer	Imperial	2-1/2	1/4-20	1-3/32	£33.10 £39.72 Inc. VAT
CL-22-SHA-5 CL-22-SHA-5	Acorn Nut with Spherical Washer	Imperial	5	5/8-11	2-3/16	£63.14 £75.77 Inc. VAT
CL-8-SHA-5 CL-8-SHA-5	Acorn Nut with Spherical Washer	Imperial	6	3/8-16	2-25/32	£45.20 £54.24 Inc. VAT
CL-1B-SHA-5 CL-1B-SHA-5	Acorn Nut with Spherical Washer	Imperial	3	5/16-18	1-11/32	£40.91 £49.09 Inc. VAT
CL-27-SHA-5 CL-27-SHA-5	Acorn Nut with Spherical Washer	Imperial	6	3/4-10	2-5/8	£80.22 £96.26 Inc. VAT
CL-10-SHA-5 CL-10-SHA-5	Acorn Nut with Spherical Washer	Imperial	4	1/2-13	1-3/4	£45.80 £54.96 Inc. VAT
CL-14-SHA-5 CL-14-SHA-5	Acorn Nut with Spherical Washer	Imperial	6	1/2-13	2-3/4	£51.40 £61.68 Inc. VAT
CL-4-SHA-5 CL-4-SHA-5	Acorn Nut with Spherical Washer	Imperial	4	3/8-16	1-25/32	£38.76 £46.51 Inc. VAT
CL-2-SHA-6 CL-2-SHA-6	Bar Knob with Spherical Washer	Imperial	3	3/8-16	1-9/32	£56.72 £68.06 Inc. VAT
CLM-12-SHA-6 CLM-12-SHA-6	Bar Knob with Spherical Washer	Metric	5	M12	2-1/4	£88.74 £106.49 Inc. VAT
CLM-9-SHA-6 CLM-9-SHA-6	Bar Knob with Spherical Washer	Metric	3-1/2	M12	1-1/2	£75.24 £90.29 Inc. VAT
CL-29-SHA-6 CL-29-SHA-6	Bar Knob with Spherical Washer	Imperial	7	3/4-10	3-1/8	£119.94 £143.93 Inc. VAT
CL-12-SHA-6 CL-12-SHA-6	Bar Knob with Spherical Washer	Imperial	5	1/2-13	2-1/4	£67.18 £80.62 Inc. VAT
CLM-29-SHA-6 CLM-29-SHA-6	Bar Knob with Spherical Washer	Metric	7	M20	3-1/8	£124.73 £149.68 Inc. VAT
CLM-25-SHA-6 CLM-25-SHA-6	Bar Knob with Spherical Washer	Metric	6-1/2	M16	2-15/16	£83.94 £100.73 Inc. VAT
CLM-22-SHA-6 CLM-22-SHA-6	Bar Knob with Spherical Washer	Metric	5	M16	2-3/16	£79.84 £95.81 Inc. VAT
CLM-14-SHA-6 CLM-14-SHA-6	Bar Knob with Spherical Washer	Metric	6	M12	2-3/4	£79.29 £95.15 Inc. VAT
CLM-8-SHA-6 CLM-8-SHA-6	Bar Knob with Spherical Washer	Metric	6	M10	2-25/32	£68.45 £82.14 Inc. VAT
CLM-4-SHA-6 CLM-4-SHA-6	Bar Knob with Spherical Washer	Metric	4	M10	1-25/32	£63.20 £75.84 Inc. VAT
CL-20-SHA-6 CL-20-SHA-6	Bar Knob with Spherical Washer	Imperial	4	5/8-11	1-11/16	£68.76 £82.51 Inc. VAT
CLM-2-SHA-6 CLM-2-SHA-6	Bar Knob with Spherical Washer	Metric	3	M10	1-9/32	£60.00 £72.00 Inc. VAT
CL-6-SHA-6 CL-6-SHA-6	Bar Knob with Spherical Washer	Imperial	5	3/8-16	2-9/32	£60.53 £72.64 Inc. VAT
CL-25-SHA-6 CL-25-SHA-6	Bar Knob with Spherical Washer	Imperial	6-1/2	5/8-11	2-15/16	£83.94 £100.73 Inc. VAT
CL-9-SHA-6 CL-9-SHA-6	Bar Knob with Spherical Washer	Imperial	3-1/2	1/2-13	1-1/2	£64.19 £77.03 Inc. VAT
CL-3-SHA-6 CL-3-SHA-6	Bar Knob with Spherical Washer	Imperial	3-1/2	3/8-16	1-17/32	£58.01 £69.61 Inc. VAT
CL-31-SHA-6 CL-31-SHA-6	Bar Knob with Spherical Washer	Imperial	8	3/4-10	3-5/8	£143.81 £172.57 Inc. VAT
CL-8-SHA-6 CL-8-SHA-6	Bar Knob with Spherical Washer	Imperial	6	3/8-16	2-25/32	£62.75 £75.30 Inc. VAT
CLM-10-SHA-6 CLM-10-SHA-6	Bar Knob with Spherical Washer	Metric	4	M12	1-3/4	£85.90 £103.08 Inc. VAT
CL-22-SHA-6 CL-22-SHA-6	Bar Knob with Spherical Washer	Imperial	5	5/8-11	2-3/16	£73.50 £88.20 Inc. VAT
CLM-31-SHA-6 CLM-31-SHA-6	Bar Knob with Spherical Washer	Metric	8	M20	3-5/8	£145.84 £175.01 Inc. VAT
CLM-27-SHA-6 CLM-27-SHA-6	Bar Knob with Spherical Washer	Metric	6	M20	2-5/8	£126.36 £151.63 Inc. VAT
CLM-24-SHA-6 CLM-24-SHA-6	Bar Knob with Spherical Washer	Metric	6	M16	2-11/16	£83.31 £99.97 Inc. VAT
CLM-20-SHA-6 CLM-20-SHA-6	Bar Knob with Spherical Washer	Metric	4	M16	1-11/16	£70.30 £84.36 Inc. VAT
CL-27-SHA-6 CL-27-SHA-6	Bar Knob with Spherical Washer	Imperial	6	3/4-10	2-5/8	£116.55 £139.86 Inc. VAT
CL-10-SHA-6 CL-10-SHA-6	Bar Knob with Spherical Washer	Imperial	4	1/2-13	1-3/4	£66.44 £79.73 Inc. VAT
CLM-6-SHA-6 CLM-6-SHA-6	Bar Knob with Spherical Washer	Metric	5	M10	2-9/32	£66.03 £79.24 Inc. VAT
CLM-3-SHA-6 CLM-3-SHA-6	Bar Knob with Spherical Washer	Metric	3-1/2	M10	1-17/32	£63.29 £75.95 Inc. VAT
CL-14-SHA-6 CL-14-SHA-6	Bar Knob with Spherical Washer	Imperial	6	1/2-13	2-3/4	£69.54 £83.45 Inc. VAT
CL-4-SHA-6 CL-4-SHA-6	Bar Knob with Spherical Washer	Imperial	4	3/8-16	1-25/32	£57.93 £69.52 Inc. VAT
CL-24-SHA-6 CL-24-SHA-6	Bar Knob with Spherical Washer	Imperial	6	5/8-11	2-11/16	£84.47 £101.36 Inc. VAT

Clamp Straps

Carr Lane Slotted-Heel Clamp Strap Assemblies

A complete clamp-strap assembly using a slotted steel strap, also in this category. Select any of the five nut/knob combinations shown in the table/images/ordering data, by adding the appropriate suffix to the part number. Other Stud and Clamp Rest lengths are available (order pieces individually).

Options:

With a choice of five different assmebly options
Available in Metric and Imperial sizes
Various lengths, threads and internal diameters available

Domestic and export sales enquiries are welcome from end users, original equipment machinery manufacturers and trade suppliers from all industrial sectors.
If you can’t find what you are looking for, need product pricing, delivery, technical support or associated services CONTACT HYQUIP or call our sales office +44 (0)1204 699959

Quantity	Unit discount	You Save

Customers who bought this product also bought:

Carr Lane Clamping Studs

Carr Lane’s highly durable standard clamping studs are designed to be used with a T nut or to be directly installed into a fixture plate. These are available in both steel and stainless-steel variants with thread sizes ranging from 1/4-20 to 1"-8 (M6 to M20 in metric). A wide range of lengths are available for these clamping studs.

Steel or stainless steel variants
thread sizes ranging from 1/4-20 to 1"-8 (M6 to M20 in metric)

£0.00 £0.00 Inc. VAT

View

Carr Lane Clamp Rests

Carr lanes clamp rests offer rear support for slotted heel clamp straps. The steel variants are equipped with a hex head to allow adjustment and is furnished with a jam nut. The stainless-steel variant is manufactured with a drilled to accommodate a rod to allow turning. Each of these variants are available in various sizes. Carr lane clamp rest screws available in thread sizes 3/8-16 and 1/2-13, each in a choice of three lengths.

Clamp Rests and Clamp Rest Screws
Steel and Stainless Steel
Metric and Imperial sizes available

£0.00 £0.00 Inc. VAT

View

Carr Lane Clamp Springs

Carr Lane’s clamp springs are designed to hold up a clamp strap for clear part loading. These springs are available in steel to accommodate stud sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric), and in stainless steel to fit stud sizes from #10-32 to 3/8-16 (M5 to M10 in metric).

Steel and Stainless Steel
Available in metric and imperial

£0.00 £0.00 Inc. VAT

View

Carr Lane Washers

Carr Lane offer various types of washers including flat washers, spherical washers and knurled face washers. Flat washers have a serrated surface designed to stop two parts from slipping relative to one another. Spherical Washers are robust two-piece washers designed to adjust when a stud and clamping surface are not perfectly perpendicular. These items are available in metric and imperial sizing as well as steel and stainless-steel options for selected products.

Available in metric and imperial
Available in steel and stainless steel

£0.74 £0.89 Inc. VAT

View

Carr Lane Spherical Nuts and Washers

Carr Lane Spherical nuts and washers is a combination of a nut and washer designed to compensate when a stud and clamping surface aren't perfectly perpendicular. This heavy-hex nut is similar to a Flange Nut but features a convex spherical radius underneath. The washer has a corresponding concave spherical radius to the nut. These are available in steel with thread sizes ranging from 1/4-20 to 1"-8 (M6 to M24 in metric), and in stainless steel with thread ranging sizes from 1/4-20 to 3/4-10.

Imperial and Metric
Steel and Stainless Steel
Thread - 1/4-20 - 1"-8 M6 - M24

£6.50 £7.80 Inc. VAT

View

Carr Lane Hex and Jam Nuts

Carr Lanes Hex and jam nuts are available in various thread sizes in both metric and imperial sizing to fit the needs of your application. They are also available in steel and stainless teel variants.

Imperial, Imperial Fine and Metric
Steel and Stainless Steel
A Thread - #8-32 - 1-1/4"7 #10-32 - 3/4-16 M4 - M30

£0.00 £0.00 Inc. VAT

View
