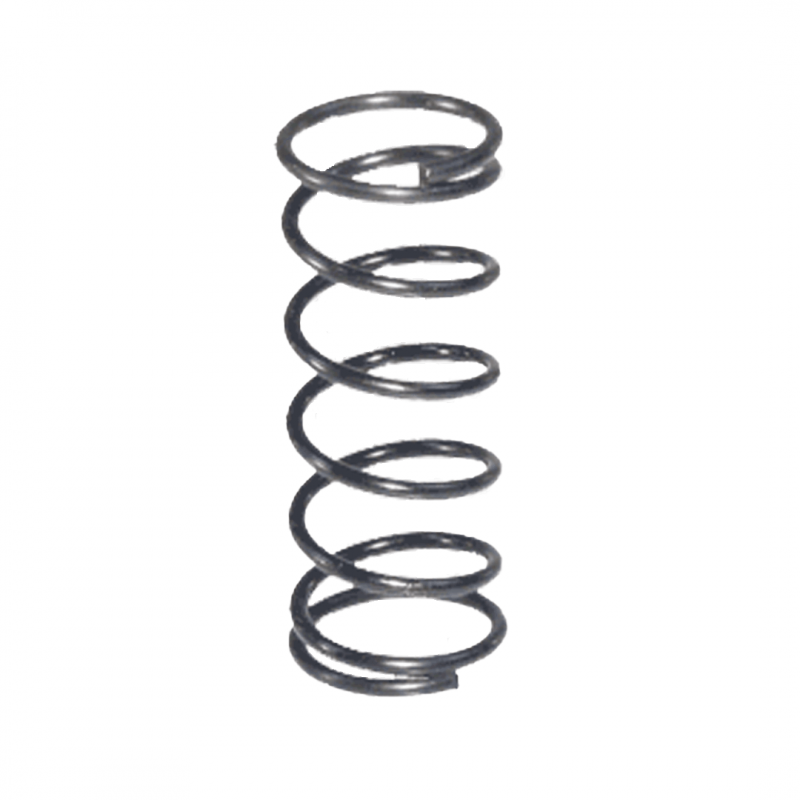

Carr Lane Clamp Springs
Carr Lane’s clamp springs are designed to hold up a clamp strap for clear part loading. These springs are available in steel to accommodate stud sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric), and in stainless steel to fit stud sizes from #10-32 to 3/8-16 (M5 to M10 in metric).
- Steel and Stainless Steel
- Available in metric and imperial
Products

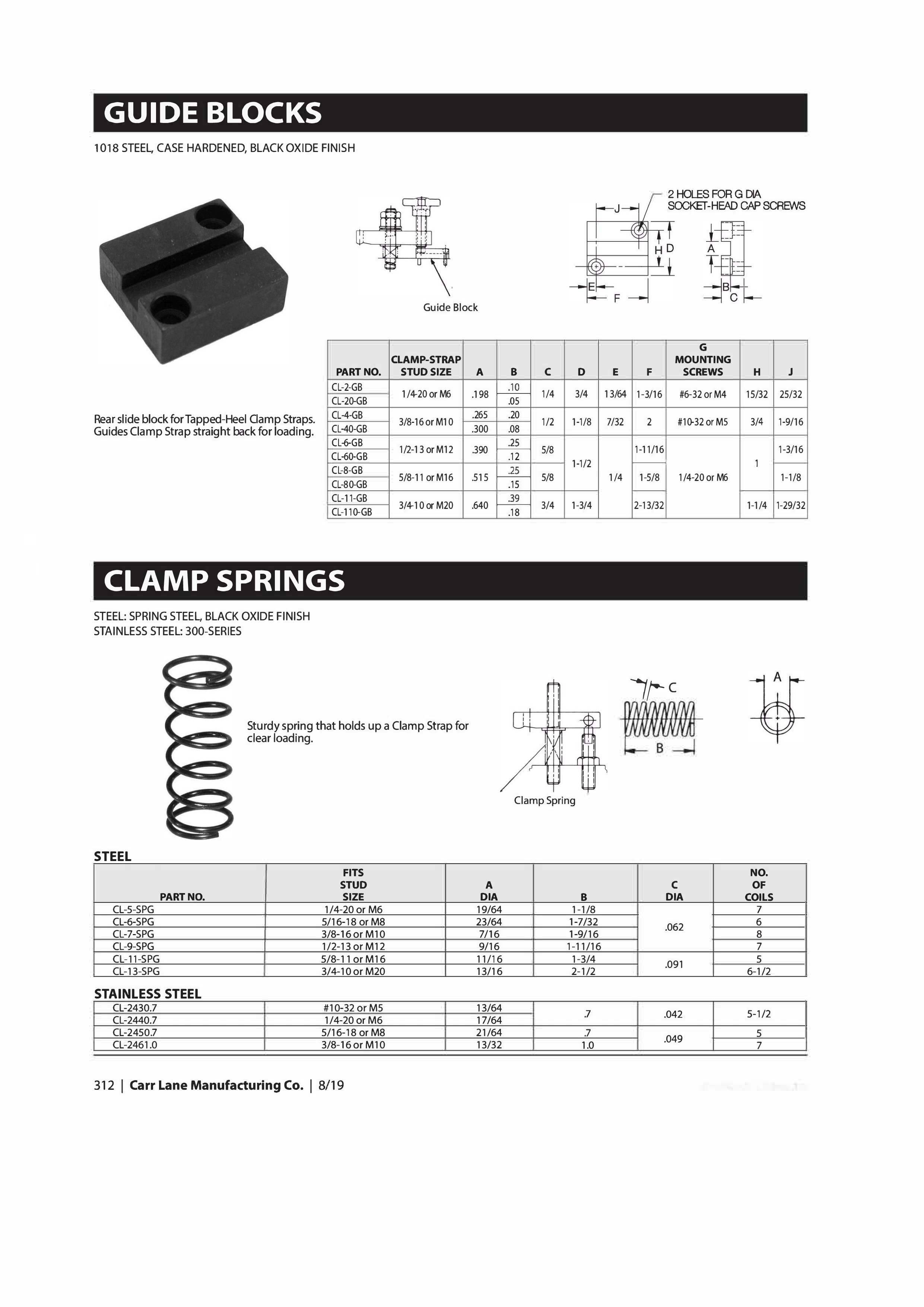

Downloads
Description
| Part Number | Material Number | Material | Fits Stud Size | Price | Add to Parts List |
|---|---|---|---|---|---|
| CL-7-SPG | Steel | 3/8-16 or M10 | On Enquiry | ||
| CL-13-SPG | Steel | 3/4-10 or M20 | On Enquiry | ||
| CL-6-SPG | Steel | 5/16-18 or M8 | On Enquiry | ||
| CL-11-SPG | Steel | 5/8-11 or M16 | On Enquiry | ||
| CL-5-SPG | Steel | 1/4-20 or M6 | On Enquiry | ||
| CL-9-SPG | Steel | 1/2-13 or M12 | On Enquiry | ||
| CL-2430.7 | Stainless Steel | #10-32 or M5 | On Enquiry | ||
| CL-2461.0 | Stainless Steel | 3/8-16 or M10 | On Enquiry | ||
| CL-2450.7 | Stainless Steel | 5/16-18 or M8 | On Enquiry | ||
| CL-2440.7 | Stainless Steel | 1/4-20 or M6 | On Enquiry |
Carr Lane Clamp Springs
Carr Lane’s clamp springs are designed to hold up a clamp strap for clear part loading. These springs are available in steel to accommodate stud sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric), and in stainless steel to fit stud sizes from #10-32 to 3/8-16 (M5 to M10 in metric).
- Steel and Stainless Steel
- Available in metric and imperial
| Quantity | Unit discount | You Save |
|---|
