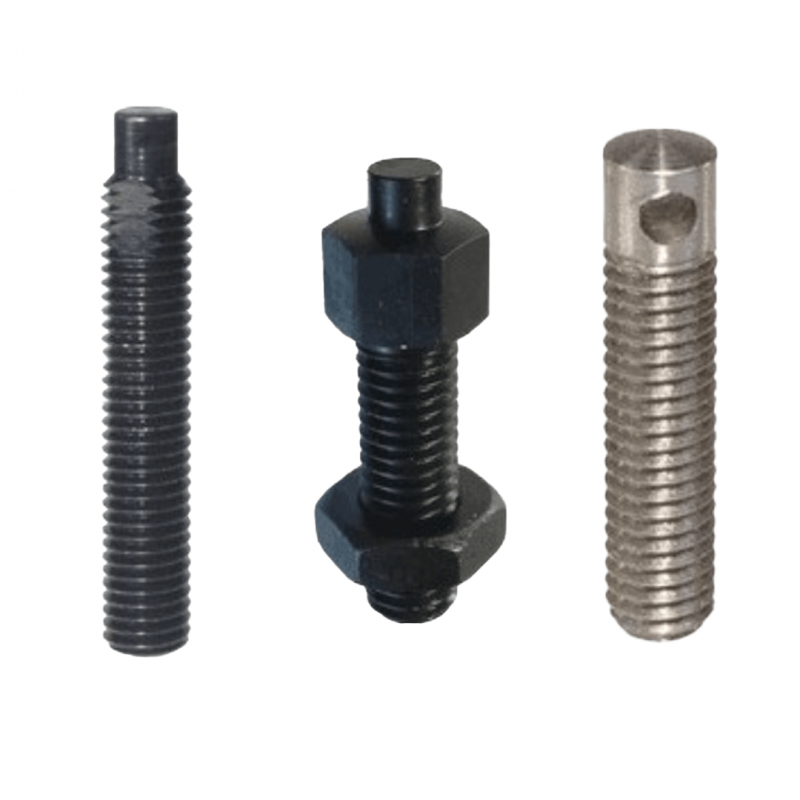

Carr Lane Clamp Rests

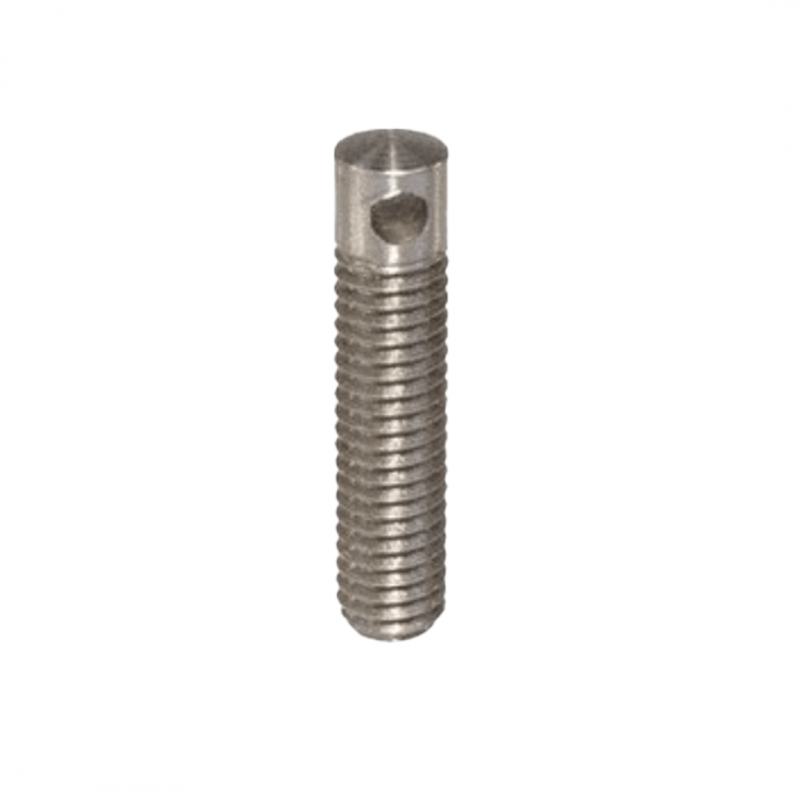

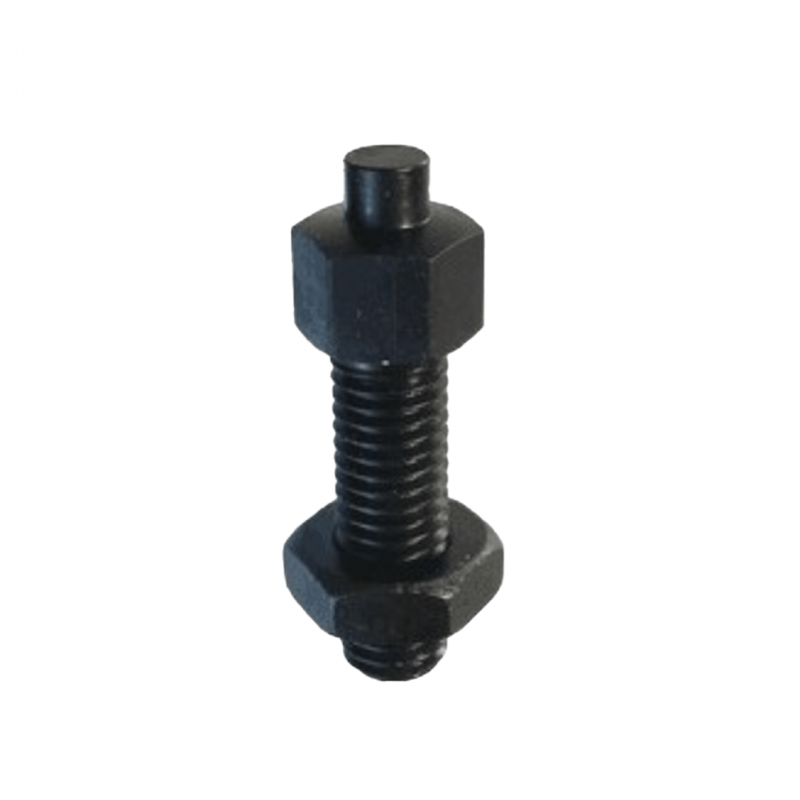

Carr lanes clamp rests offer rear support for slotted heel clamp straps. The steel variants are equipped with a hex head to allow adjustment and is furnished with a jam nut. The stainless-steel variant is manufactured with a drilled to accommodate a rod to allow turning. Each of these variants are available in various sizes. Carr lane clamp rest screws available in thread sizes 3/8-16 and 1/2-13, each in a choice of three lengths.
- Clamp Rests and Clamp Rest Screws
- Steel and Stainless Steel
- Metric and Imperial sizes available
Products

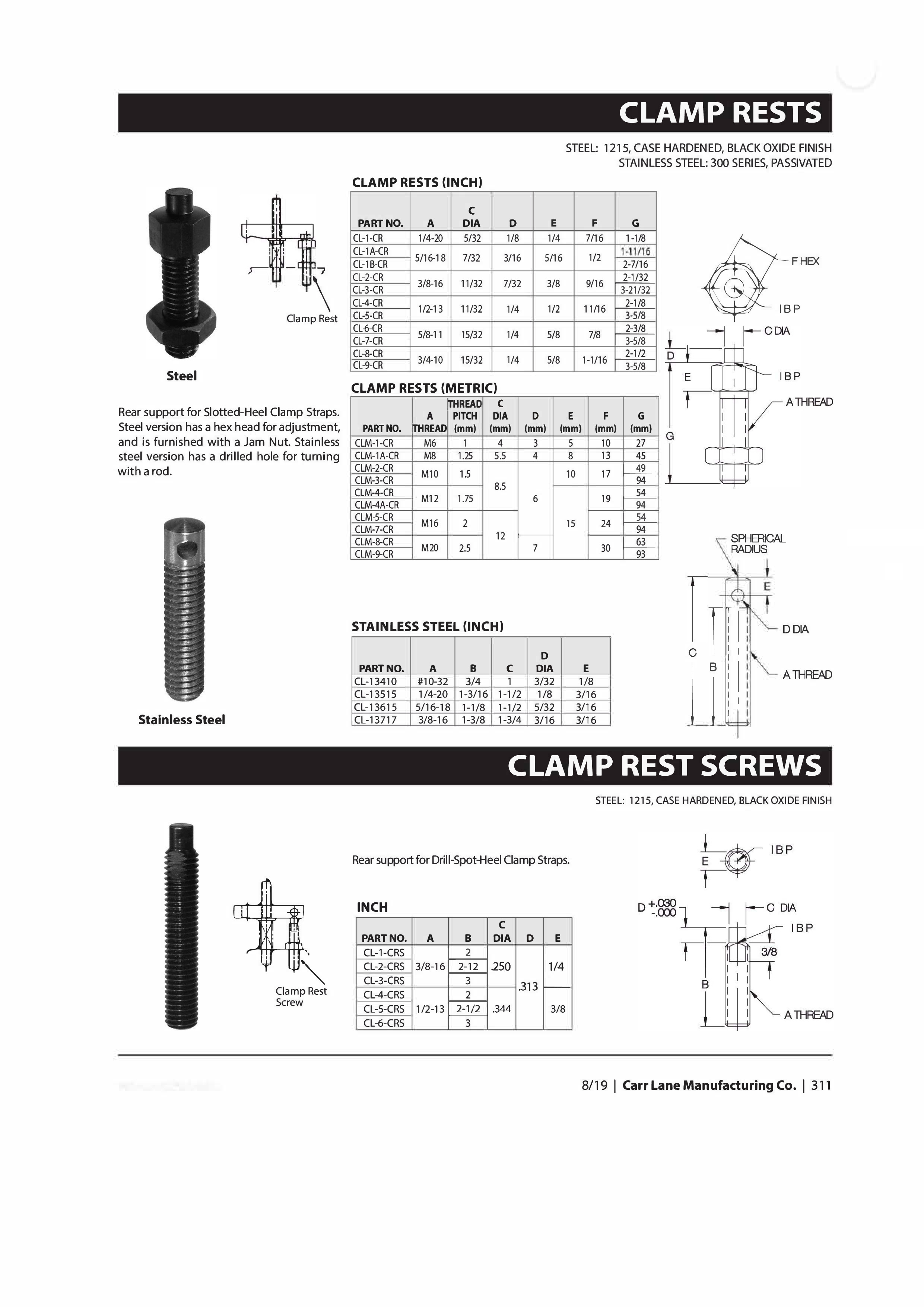

Downloads
Description
| Part Number | Material Number | Type | Metric or Imperial | Length | Material | Thread | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|---|
| CLM-9-CR | Clamp Rest | Metric | 3.66 | Steel | M20 | £31.64 £37.97 Inc. VAT |
|
|
| CLM-1-CR | Clamp Rest | Metric | 1.06 | Steel | M6 | £8.65 £10.38 Inc. VAT |
|
|
| CL-8-CR | Clamp Rest | Imperial | 2-1/2 | Steel | 3/4-10 | £12.12 £14.54 Inc. VAT |
|
|
| CL-5-CR | Clamp Rest | Imperial | 3-5/8 | Steel | 1/2-13 | £10.10 £12.12 Inc. VAT |
|
|
| CL-1-CR | Clamp Rest | Imperial | 1-1/8 | Steel | 1/4-20 | £6.71 £8.05 Inc. VAT |
|
|
| CLM-7-CR | Clamp Rest | Metric | 3.70 | Steel | M16 | £23.65 £28.38 Inc. VAT |
|
|
| CL-6-CR | Clamp Rest | Imperial | 2-3/8 | Steel | 5/8-11 | £10.16 £12.19 Inc. VAT |
|
|
| CLM-1A-CR | Clamp Rest | Metric | 1.77 | Steel | M8 | On Enquiry | ||
| CL-3-CR | Clamp Rest | Imperial | 3-21/32 | Steel | 3/8-16 | £8.08 £9.70 Inc. VAT |
|
|
| CLM-5-CR | Clamp Rest | Metric | 2.13 | Steel | M16 | £17.88 £21.46 Inc. VAT |
|
|
| CLM-8-CR | Clamp Rest | Metric | 2.48 | Steel | M20 | £28.97 £34.76 Inc. VAT |
|
|
| CLM-4A-CR | Clamp Rest | Metric | 3.70 | Steel | M12 | £16.80 £20.16 Inc. VAT |
|
|
| CL-13717 | Clamp Rest | Imperial | 1-3/4 | Stainless Steel | 3/8-16 | £16.80 £20.16 Inc. VAT |
|
|
| CL-1B-CR | Clamp Rest | Imperial | 2-7/16 | Steel | 5/16-18 | £13.81 £16.57 Inc. VAT |
|
|
| CLM-4-CR | Clamp Rest | Metric | 2.13 | Steel | M12 | On Enquiry | ||
| CL-13615 | Clamp Rest | Imperial | 1-1/2 | Stainless Steel | 5/16-18 | £10.19 £12.23 Inc. VAT |
|
|
| CL-4-CR | Clamp Rest | Imperial | 2-1/8 | Steel | 1/2-13 | £7.39 £8.87 Inc. VAT |
|
|
| CL-9-CR | Clamp Rest | Imperial | 3-5/8 | Steel | 3/4-10 | £13.43 £16.12 Inc. VAT |
|
|
| CL-13515 | Clamp Rest | Imperial | 1-1/2 | Stainless Steel | 1/4-20 | £5.42 £6.50 Inc. VAT |
|
|
| CL-1A-CR | Clamp Rest | Imperial | 1-11/16 | Steel | 5/16-18 | £6.32 £7.58 Inc. VAT |
|
|
| CLM-3-CR | Clamp Rest | Metric | 3.70 | Steel | M10 | £18.61 £22.33 Inc. VAT |
|
|
| CL-13410 | Clamp Rest | Imperial | 1 | Stainless Steel | #10-32 | £4.86 £5.83 Inc. VAT |
|
|
| CL-2-CR | Clamp Rest | Imperial | 2-1/32 | Steel | 3/8-16 | £6.52 £7.82 Inc. VAT |
|
|
| CL-7-CR | Clamp Rest | Imperial | 3-5/8 | Steel | 5/8-11 | £15.18 £18.22 Inc. VAT |
|
|
| CLM-2-CR | Clamp Rest | Metric | 1.93 | Steel | M10 | £11.47 £13.76 Inc. VAT |
|
|

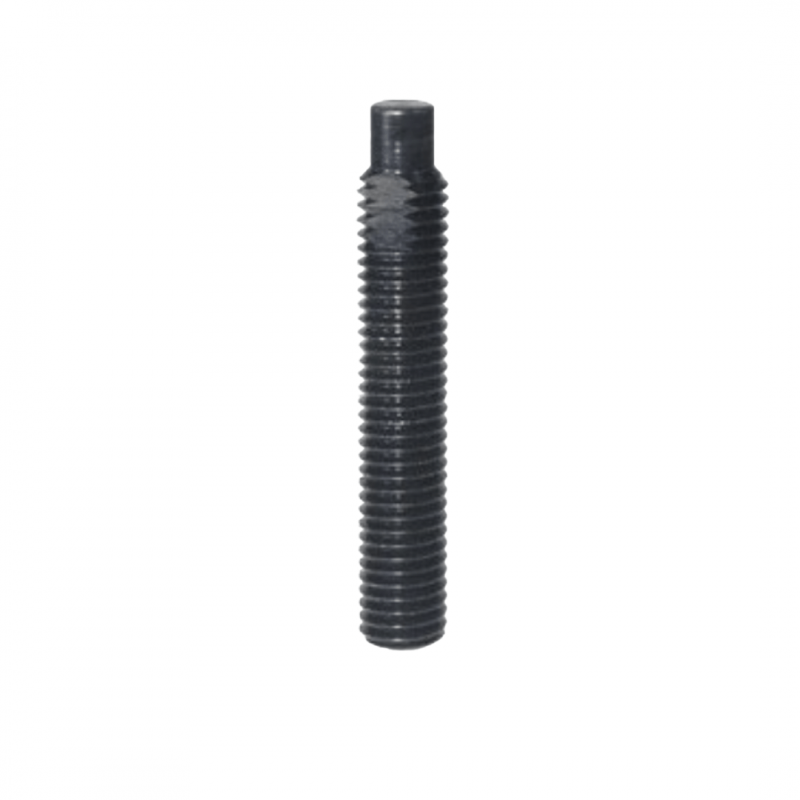

| CL-4-CRS | Clamp Rest Screws | Imperial | 2 | Steel | 1/2-13 | £11.38 £13.66 Inc. VAT |
|
|
| CL-3-CRS | Clamp Rest Screws | Imperial | 3 | Steel | 3/8-16 | £10.97 £13.16 Inc. VAT |
|
|
| CL-2-CRS | Clamp Rest Screws | Imperial | 2-1/2 | Steel | 3/8-16 | £10.86 £13.03 Inc. VAT |
|
|
| CL-1-CRS | Clamp Rest Screws | Imperial | 2 | Steel | 3/8-16 | £10.18 £12.22 Inc. VAT |
|
|
| CL-6-CRS | Clamp Rest Screws | Imperial | 3 | Steel | 1/2-13 | £13.69 £16.43 Inc. VAT |
|
|
| CL-5-CRS | Clamp Rest Screws | Imperial | 2-1/2 | Steel | 1/2-13 | £12.44 £14.93 Inc. VAT |
|
Carr Lane Clamp Rests
Carr lanes clamp rests offer rear support for slotted heel clamp straps. The steel variants are equipped with a hex head to allow adjustment and is furnished with a jam nut. The stainless-steel variant is manufactured with a drilled to accommodate a rod to allow turning. Each of these variants are available in various sizes. Carr lane clamp rest screws available in thread sizes 3/8-16 and 1/2-13, each in a choice of three lengths.
- Clamp Rests and Clamp Rest Screws
- Steel and Stainless Steel
- Metric and Imperial sizes available
