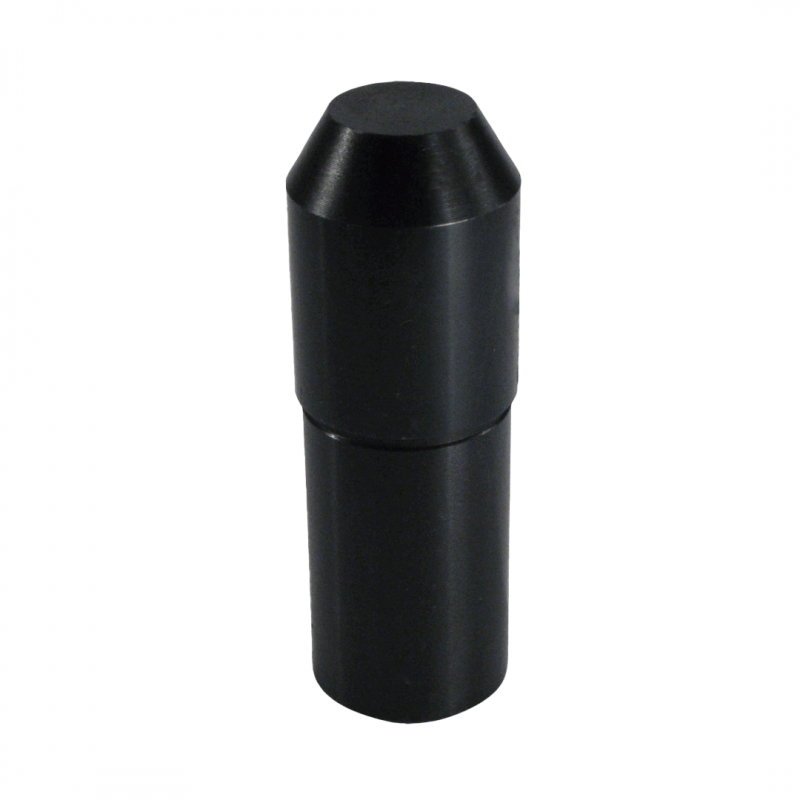

Carr Lane Round and Diamond Pins

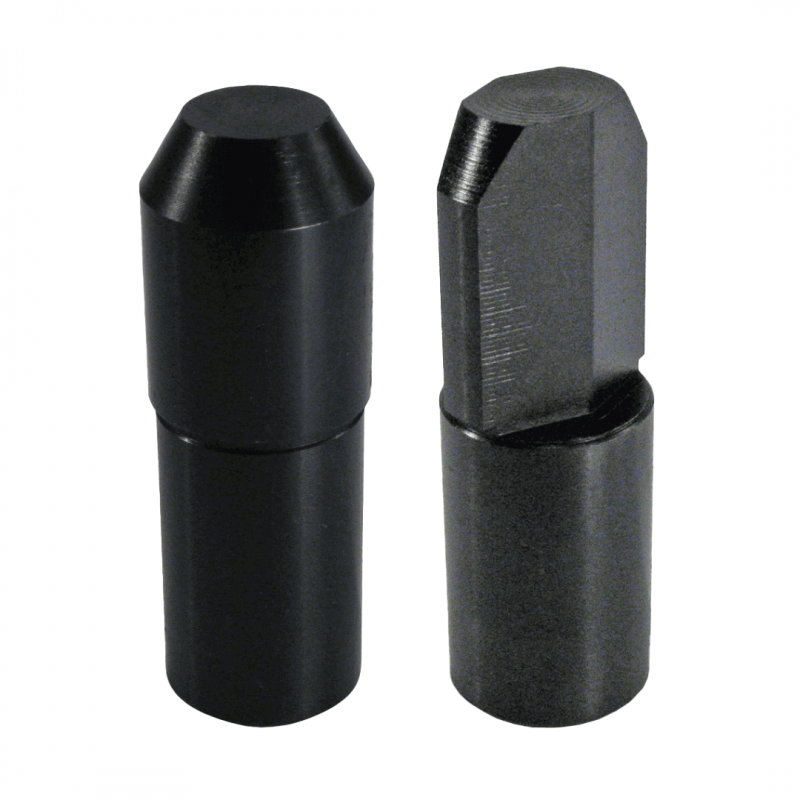

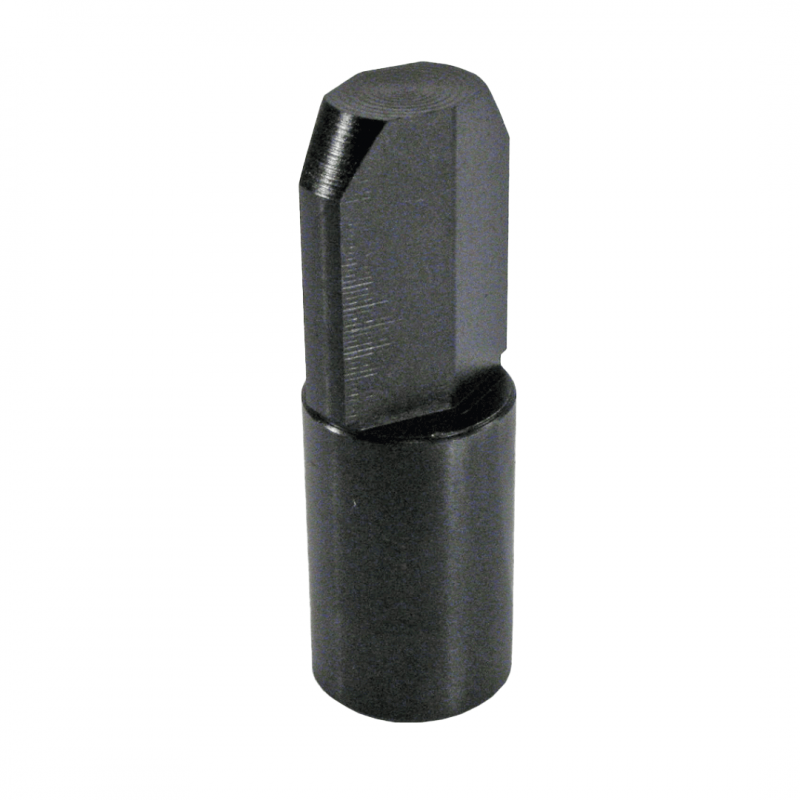

These precision locating pins feature a chamfered tip for effortless part loading and a shoulder that helps resist downward forces. Typically, one Round Pin and one Diamond Pin are used together to locate two machined holes in a workpiece or to align two fixture components without causing binding. The head and shank diameters of the round locating pins are concentric to within .0005" TIR. These pins are available with head diameters ranging from 1/4" to 1" (6 to 20mm in metric).
- Head Diameter: 1/4 - 1 or 6mm - 20mm
- Metric and Imperial sizes
- Round and Diamond pins
Products
Downloads
Description
| Part Number | Material Number | Metric or Imperial | Pin Type | Shank Diameter | Head Diameter | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| CLM-60-DPY | Metric | Diamond Pin Medium | 5mm | 6mm | £10.58 £12.70 Inc. VAT |
|
|
| CLM-160-DPZ | Metric | Diamond Pin Loose | 14mm | 16mm | £18.14 £21.77 Inc. VAT |
|
|
| CLM-100-RP | Metric | Round Pin | 8mm | 10mm | £7.33 £8.80 Inc. VAT |
|
|
| CLM-100-DPY | Metric | Diamond Pin Medium | 8mm | 10mm | £13.86 £16.63 Inc. VAT |
|
|
| CLM-200-DPZ | Metric | Diamond Pin Loose | 18mm | 20mm | £23.38 £28.06 Inc. VAT |
|
|
| CLM-140-DPY | Metric | Diamond Pin Medium | 12mm | 14mm | £17.65 £21.18 Inc. VAT |
|
|
| CLM-80-DPX | Metric | Diamond Pin Tight | 6mm | 8mm | £11.72 £14.06 Inc. VAT |
|
|
| CLM-180-DPY | Metric | Diamond Pin Medium | 16mm | 18mm | On Enquiry | ||
| CLM-140-RP | Metric | Round Pin | 12mm | 14mm | £10.50 £12.60 Inc. VAT |
|
|
| CLM-120-DPX | Metric | Diamond Pin Tight | 10mm | 12mm | £14.98 £17.98 Inc. VAT |
|
|
| CLM-160-DPX | Metric | Diamond Pin Tight | 14mm | 16mm | £18.14 £21.77 Inc. VAT |
|
|
| CLM-60-RP | Metric | Round Pin | 5mm | 6mm | £6.24 £7.49 Inc. VAT |
|
|
| CLM-80-DPZ | Metric | Diamond Pin Loose | 6mm | 8mm | £11.72 £14.06 Inc. VAT |
|
|
| CLM-200-DPX | Metric | Diamond Pin Tight | 18mm | 20mm | £23.38 £28.06 Inc. VAT |
|
|
| CLM-180-RP | Metric | Round Pin | 16mm | 18mm | £11.57 £13.88 Inc. VAT |
|
|
| CLM-120-DPZ | Metric | Diamond Pin Loose | 10mm | 12mm | £14.98 £17.98 Inc. VAT |
|
|
| CLM-200-DPY | Metric | Diamond Pin Medium | 18mm | 20mm | £23.38 £28.06 Inc. VAT |
|
|
| CLM-200-RP | Metric | Round Pin | 18mm | 20mm | £13.43 £16.12 Inc. VAT |
|
|
| CLM-140-DPX | Metric | Diamond Pin Tight | 12mm | 14mm | £17.65 £21.18 Inc. VAT |
|
|
| CLM-60-DPZ | Metric | Diamond Pin Loose | 5mm | 6mm | £10.58 £12.70 Inc. VAT |
|
|
| CLM-180-DPX | Metric | Diamond Pin Tight | 16mm | 18mm | On Enquiry | ||
| CLM-120-RP | Metric | Round Pin | 10mm | 12mm | £8.76 £10.51 Inc. VAT |
|
|
| CLM-100-DPZ | Metric | Diamond Pin Loose | 8mm | 10mm | £13.86 £16.63 Inc. VAT |
|
|
| CLM-140-DPZ | Metric | Diamond Pin Loose | 12mm | 14mm | £17.65 £21.18 Inc. VAT |
|
|
| CLM-80-DPY | Metric | Diamond Pin Medium | 6mm | 8mm | £11.72 £14.06 Inc. VAT |
|
|
| CLM-180-DPZ | Metric | Diamond Pin Loose | 16mm | 18mm | On Enquiry | ||
| CLM-160-RP | Metric | Round Pin | 14mm | 16mm | £10.60 £12.72 Inc. VAT |
|
|
| CLM-120-DPY | Metric | Diamond Pin Medium | 10mm | 12mm | £14.98 £17.98 Inc. VAT |
|
|
| CLM-60-DPX | Metric | Diamond Pin Tight | 5mm | 6mm | £10.58 £12.70 Inc. VAT |
|
|
| CLM-160-DPY | Metric | Diamond Pin Medium | 14mm | 16mm | £18.14 £21.77 Inc. VAT |
|
|
| CLM-80-RP | Metric | Round Pin | 6mm | 8mm | £7.12 £8.54 Inc. VAT |
|
|
| CLM-100-DPX | Metric | Diamond Pin Tight | 8mm | 10mm | £13.86 £16.63 Inc. VAT |
|
|
| CL-8-DPZ | Imperial | Diamond Pin Loose | 5/8 | 11/16 | On Enquiry | ||
| CL-5-DPY | Imperial | Diamond Pin Medium | 7/16 | 1/2 | £11.47 £13.76 Inc. VAT |
|
|
| CL-2-DPX | Imperial | Diamond Pin Tight | 1/4 | 5/16 | £8.27 £9.92 Inc. VAT |
|
|
| CL-10-DPZ | Imperial | Diamond Pin Loose | 3/4 | 13/16 | On Enquiry | ||
| CL-5-RP | Imperial | Round Pin | 7/16 | 1/2 | £8.02 £9.62 Inc. VAT |
|
|
| CL-7-DPY | Imperial | Diamond Pin Medium | 9/16 | 5/8 | £12.58 £15.10 Inc. VAT |
|
|
| CL-4-DPX | Imperial | Diamond Pin Tight | 3/8 | 7/16 | £9.41 £11.29 Inc. VAT |
|
|
| CL-12-DPZ | Imperial | Diamond Pin Loose | 7/8 | 15/16 | On Enquiry | ||
| CL-11-RP | Imperial | Round Pin | 13/16 | 7/8 | £16.73 £20.08 Inc. VAT |
|
|
| CL-9-DPY | Imperial | Diamond Pin Medium | 11/16 | 3/4 | £16.15 £19.38 Inc. VAT |
|
|
| CL-1-RP | Imperial | Round Pin | 3/16 | 1/4 | £4.97 £5.96 Inc. VAT |
|
|
| CL-6-DPX | Imperial | Diamond Pin Tight | 1/2 | 9/16 | £11.88 £14.26 Inc. VAT |
|
|
| CL-2-DPZ | Imperial | Diamond Pin Loose | 1/4 | 5/16 | £8.35 £10.02 Inc. VAT |
|
|
| CL-11-DPY | Imperial | Diamond Pin Medium | 13/16 | 7/8 | On Enquiry | ||
| CL-7-RP | Imperial | Round Pin | 9/16 | 5/8 | £8.35 £10.02 Inc. VAT |
|
|
| CL-8-DPX | Imperial | Diamond Pin Tight | 5/8 | 11/16 | On Enquiry | ||
| CL-4-DPZ | Imperial | Diamond Pin Loose | 3/8 | 7/16 | £9.41 £11.29 Inc. VAT |
|
|
| CL-13-DPY | Imperial | Diamond Pin Medium | 15/16 | 1 | On Enquiry | ||
| CL-13-RP | Imperial | Round Pin | 15/16 | 1 | £16.22 £19.46 Inc. VAT |
|
|
| CL-1-DPY | Imperial | Diamond Pin Medium | 3/16 | 1/4 | £8.12 £9.74 Inc. VAT |
|
|
| CL-10-DPX | Imperial | Diamond Pin Tight | 3/4 | 13/16 | On Enquiry | ||
| CL-3-RP | Imperial | Round Pin | 5/16 | 3/8 | £5.95 £7.14 Inc. VAT |
|
|
| CL-6-DPZ | Imperial | Diamond Pin Loose | 1/2 | 9/16 | £11.88 £14.26 Inc. VAT |
|
|
| CL-3-DPY | Imperial | Diamond Pin Medium | 5/16 | 3/8 | £8.42 £10.10 Inc. VAT |
|
|
| CL-12-DPX | Imperial | Diamond Pin Tight | 7/8 | 15/16 | On Enquiry | ||
| CL-9-RP | Imperial | Round Pin | 11/16 | 3/4 | £9.70 £11.64 Inc. VAT |
|
|
| CL-10-DPY | Imperial | Diamond Pin Medium | 3/4 | 13/16 | On Enquiry | ||
| CL-4-RP | Imperial | Round Pin | 3/8 | 7/16 | £7.19 £8.63 Inc. VAT |
|
|
| CL-7-DPX | Imperial | Diamond Pin Tight | 9/16 | 5/8 | £12.58 £15.10 Inc. VAT |
|
|
| CL-3-DPZ | Imperial | Diamond Pin Loose | 5/16 | 3/8 | £8.42 £10.10 Inc. VAT |
|
|
| CL-12-DPY | Imperial | Diamond Pin Medium | 7/8 | 15/16 | On Enquiry | ||
| CL-10-RP | Imperial | Round Pin | 3/4 | 13/16 | £11.71 £14.05 Inc. VAT |
|
|
| CL-9-DPX | Imperial | Diamond Pin Tight | 11/16 | 3/4 | £16.15 £19.38 Inc. VAT |
|
|
| CL-5-DPZ | Imperial | Diamond Pin Loose | 7/16 | 1/2 | £11.47 £13.76 Inc. VAT |
|
|
| CL-2-DPY | Imperial | Diamond Pin Medium | 1/4 | 5/16 | £8.35 £10.02 Inc. VAT |
|
|
| CL-11-DPX | Imperial | Diamond Pin Tight | 13/16 | 7/8 | On Enquiry | ||
| CL-6-RP | Imperial | Round Pin | 1/2 | 9/16 | £8.18 £9.82 Inc. VAT |
|
|
| CL-7-DPZ | Imperial | Diamond Pin Loose | 9/16 | 5/8 | £12.58 £15.10 Inc. VAT |
|
|
| CL-4-DPY | Imperial | Diamond Pin Medium | 3/8 | 7/16 | £9.41 £11.29 Inc. VAT |
|
|
| CL-13-DPX | Imperial | Diamond Pin Tight | 15/16 | 1 | On Enquiry | ||
| CL-12-RP | Imperial | Round Pin | 7/8 | 15/16 | £12.94 £15.53 Inc. VAT |
|
|
| CL-1-DPX | Imperial | Diamond Pin Tight | 3/16 | 1/4 | £7.98 £9.58 Inc. VAT |
|
|
| CL-9-DPZ | Imperial | Diamond Pin Loose | 11/16 | 3/4 | £16.15 £19.38 Inc. VAT |
|
|
| CL-2-RP | Imperial | Round Pin | 1/4 | 5/16 | £5.21 £6.25 Inc. VAT |
|
|
| CL-6-DPY | Imperial | Diamond Pin Medium | 1/2 | 9/16 | £11.88 £14.26 Inc. VAT |
|
|
| CL-3-DPX | Imperial | Diamond Pin Tight | 5/16 | 3/8 | £8.23 £9.88 Inc. VAT |
|
|
| CL-11-DPZ | Imperial | Diamond Pin Loose | 13/16 | 7/8 | On Enquiry | ||
| CL-8-RP | Imperial | Round Pin | 5/8 | 11/16 | £9.18 £11.02 Inc. VAT |
|
|
| CL-8-DPY | Imperial | Diamond Pin Medium | 5/8 | 11/16 | On Enquiry | ||
| CL-5-DPX | Imperial | Diamond Pin Tight | 7/16 | 1/2 | £11.21 £13.45 Inc. VAT |
|
|
| CL-13-DPZ | Imperial | Diamond Pin Loose | 15/16 | 1 | On Enquiry | ||
| CL-1-DPZ | Imperial | Diamond Pin Loose | 3/16 | 1/4 | £8.12 £9.74 Inc. VAT |
|
Carr Lane Round and Diamond Pins
These precision locating pins feature a chamfered tip for effortless part loading and a shoulder that helps resist downward forces. Typically, one Round Pin and one Diamond Pin are used together to locate two machined holes in a workpiece or to align two fixture components without causing binding. The head and shank diameters of the round locating pins are concentric to within .0005" TIR. These pins are available with head diameters ranging from 1/4" to 1" (6 to 20mm in metric).
Options:
- Head Diameter: 1/4 - 1 or 6mm - 20mm
- Metric and Imperial sizes
- Round and Diamond pins
Note: Round Pins also make excellent edge locators. Head and Shank diameters are concentric to within .0005 TIR.
