Filters

Key Features:

• Absolute filtration with high-efficiency filter media including glass fibre, meltblown, and solid plastic
• Robust performance under differential pressures up to 20 bar and temperatures up to 100°C
• Built-in Quality Protection system to prevent third-party element installation and maintain system reliability

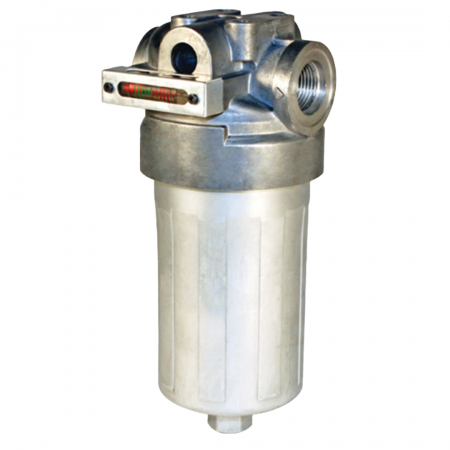

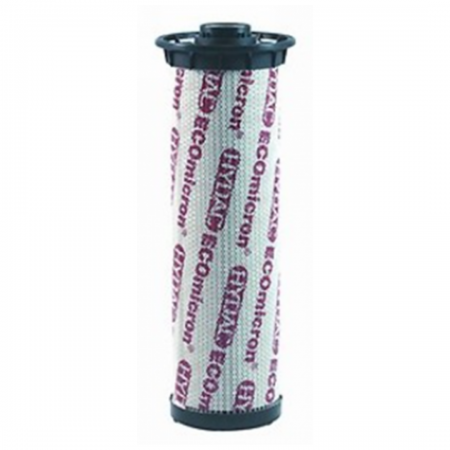

The HYDAC "MX" Inline Pressure Filter Elements provide reliable absolute filtration for low-pressure systems, with ratings from 5 to 20 µm and compatibility up to 20 bar and 100°C. Designed for MFX housings, they feature HYDAC Quality Protection to prevent third-party replacements and ensure consistent system performance.

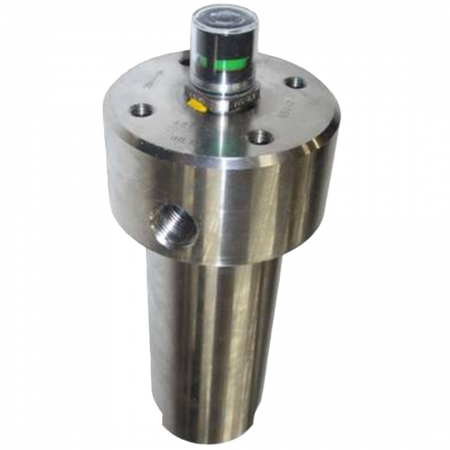

HYDAC Stainless Steel High-Pressure Filter MPSSF provides robust filtration for hydraulic systems, handling flow rates up to 130 l/min and pressure levels up to 450 bar. Built with a screw-on filter bowl and a clogging indicator connection, it ensures reliable contaminant control. Designed for extreme conditions, it offers compatibility with various hydraulic fluids and optional customizations for specific applications.

Key Features:

• Flow rates up to 130 l/min
• Temperature range: -20 °C to +100 °C
• Pressure levels up to 450 bar

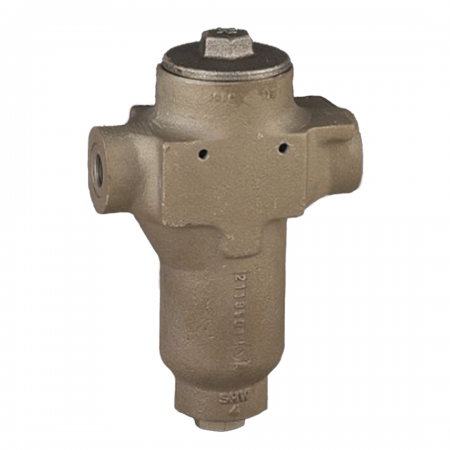

The HYDAC LPFR Inline Filter combines standard hydraulic filtration with integrated magnetic pre-filtration. Designed for flow rates up to 250 l/min and pressures up to 25 bar, it ensures efficient contaminant removal with easy top-access maintenance.

Key Features:

• Flow rates up to 250 l/min
• Temperature range -10 °C to +120 °C
• Pressure levels up to 25 bar
• Bypass Valve: Optional, 2.5 bar cracking pressure (others on request)

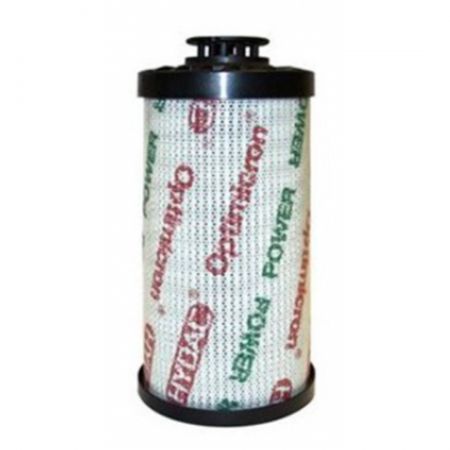

The HYDAC Optimicron® Power Filter Elements are high-performance, single-use filters designed for demanding applications such as turbine lubrication in power plants. With absolute filtration, Stat-Free® technology, and compliance with API 614/ISO 10438, they offer superior fluid cleanliness and enhanced operational safety. Built to withstand 20 bar collapse pressure and temperatures from -30°C to +100°C, these elements are ideal for rotating machinery.

Key Features:

• Stat-Free® technology prevents static discharge and extends oil life
• API 614-compliant for power generation applications
• Absolute filtration with 5, 10, and 20 µm ratings

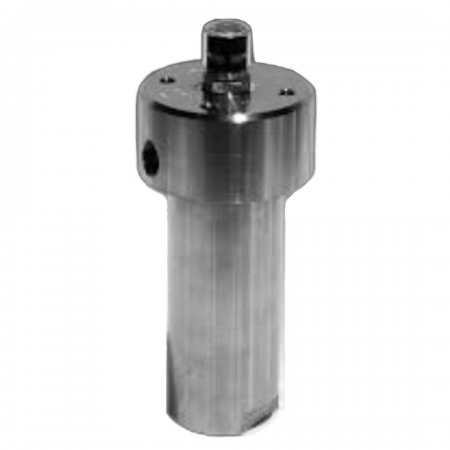

HYDAC Stainless Steel High-Pressure Filter ACSSF delivers superior filtration for hydraulic systems, handling flow rates up to 100 l/min and extreme pressure levels up to 1000 bar. Engineered for durability, it features a clogging indicator connection, an oil drain plug, and optional configurations, ensuring reliable performance in demanding conditions.

Key Features:

• Flow rates up to 100 l/min
• Temperature range: -20 °C to +100 °C
• Pressure range up to 1000 bar

The HYDAC Stainless Steel Inline Filters EMLF are robust filtration solutions designed for high-performance hydraulic systems, offering dependable protection for sensitive components. With flow rates up to 150 l/min and pressure ratings up to 40 bar, these filters ensure reliable operation under demanding conditions.

Key Features:

• Flow rates up to 150 l/min
• Pressure levels up to 40 bar
• Custom models, accessories, and certifications available on request

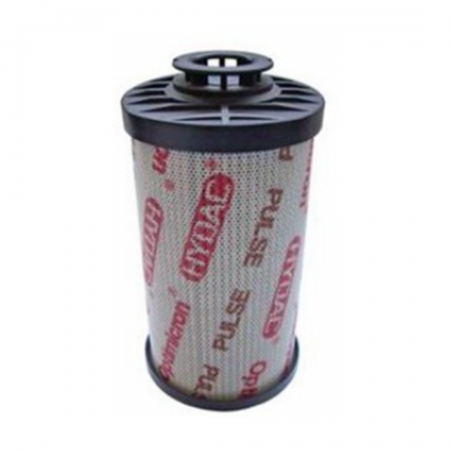

The HYDAC Optimicron® Pulse Filter Elements are engineered for high-pressure pulse applications, delivering absolute filtration and superior durability. Designed for systems with dynamic pressure loads, they provide reliable protection and fluid cleanliness under extreme conditions.

Key Features:

• Collapse stability ON/PS: 20 bar - OH/PS: 210 bar
• Micron ratings: 3, 5, 10, 20 µm
• Temperature range: -30 °C to +100 °C For sealing material FPM to -10 °C
• Flow direction: From outside to inside
• Category of filter element: Single use element

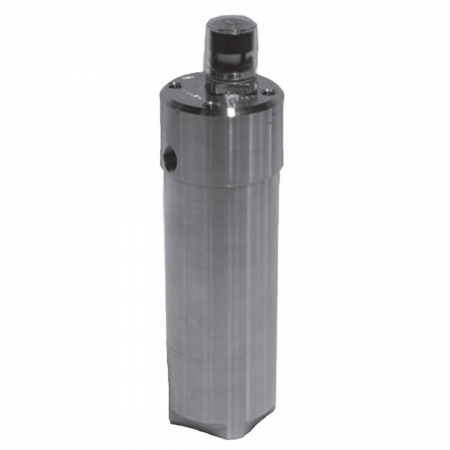

HYDAC Stainless Steel High-Pressure Filter HPSSF is designed for demanding hydraulic applications, handling flow rates up to 130 l/min and pressures up to 700 bar. Featuring a screw-on filter bowl, integrated bypass valve, and a clogging indicator connection, it ensures effective contaminant control and system protection. Built for durability, it offers reliable filtration in high-pressure environments.

Key Features:

• Flow rates up to 130 l/min
• Temperature range: -20 °C to +100 °C
• Pressure levels up to 700 bar

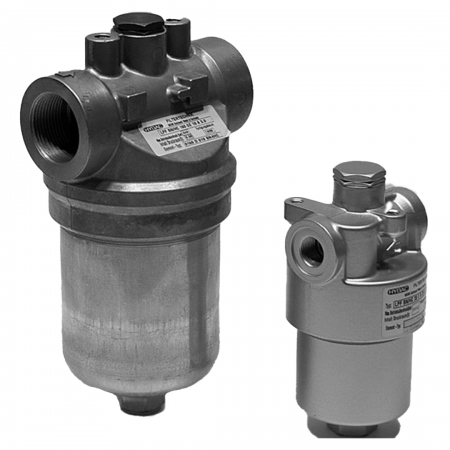

The HYDAC Low Pressure Inline Filter LPF series delivers efficient, high-performance filtration for both industrial and mobile hydraulic applications. With flow rates up to 280 l/min and pressure capabilities up to 50 bar, these versatile filters are ideal for return lines, feed circuits, and fluctuating flow environments.

Key Features:

• Flow Rates up to 280 l/min
• Pressure Range, 25 / 50 bar
• Temperature Range -30°C to +100°C

Key Features:

• Absolute filtration of solid contaminants
• High water and contamination retention capacity
• Stable under high differential pressures

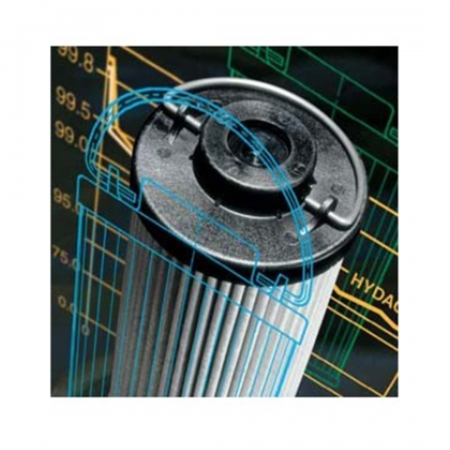

HYDAC Betamicron® – Aquamicron® filter elements offer high-performance dual filtration by removing both solid particles and excess water from hydraulic fluids. Designed for systems exposed to high water contamination, these BN/AM elements ensure absolute particle filtration and effective water separation. Suitable for mineral oils, HFD-R fluids, and biodegradable oils, they help extend the life of critical hydraulic components.

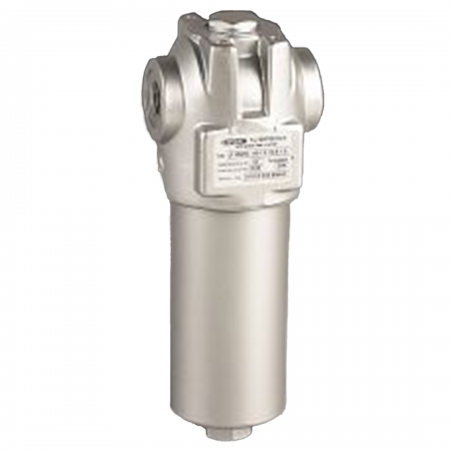

HYDAC Inline Filter LFN, designed in accordance with DIN 24550, provides efficient hydraulic filtration with flow rates up to 100 l/min and pressure levels up to 100 bar. Featuring a screw-in filter bowl, clogging indicator connection, and compatibility with various hydraulic fluids, it ensures reliable system performance and contaminant control.

Key Features:

• Flow rates up to 100 l/min
• Pressure levels up to 100 bar
• Connections: G½ to G1

The HYDAC Inline Duplex Filter RFLD is engineered for continuous-duty hydraulic and lubrication systems, featuring a robust ball changeover valve that allows uninterrupted operation during element replacement. With flow rates up to 2,500 l/min and pressure ratings up to 64 bar, it ensures reliable, high-capacity filtration in demanding environments.

Key Features:

• Flow Rates up to 2,500 l/min
• Pressure Range, 16 / 25 / 40 / 64 bar
• Temperature Range -10°C to +100°C
