HYQUIP supply the entire range of HYDAC quality filters that guarantee reliable performance and increased service life of components, systems and machinery.
If you require a product not listed or to a modified specification please contact our sales office on +44 (0) 1204 699959 who will be happy to advise.

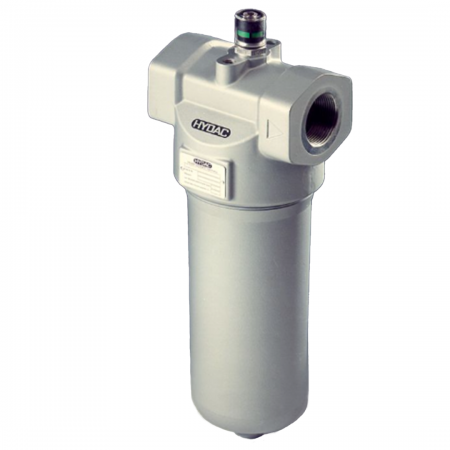

HYDAC FLN Inline Filters (DIN 24550-compliant) are designed for filtration in hydraulic systems up to 400 l/min and 25 bar. With optional bypass functionality and clogging indicators, they provide flexible, reliable inline filtration for medium-pressure applications.
Key Features:

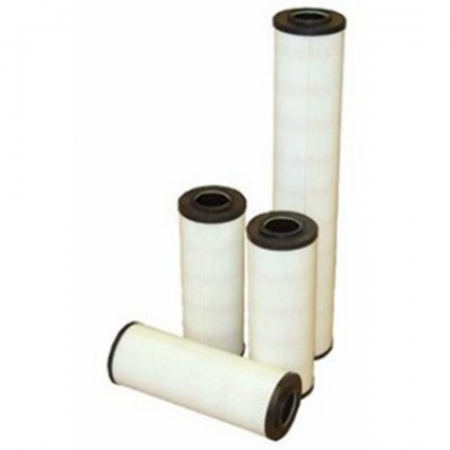

The HYDAC "AM" Aquamicron Filter Elements offer 40μm filtration with a high dirt and water retention capacity, ensuring prolonged oil service life and consistent cleanliness under operating pressures up to 25 bar and temperatures between 0 °C and +100 °C. Utilizing Aquamicron® technology, these elements chemically bond water from hydraulic and biodegradable oils, maintaining effective separation even under fluctuating pressure conditions. Key features are as follows:

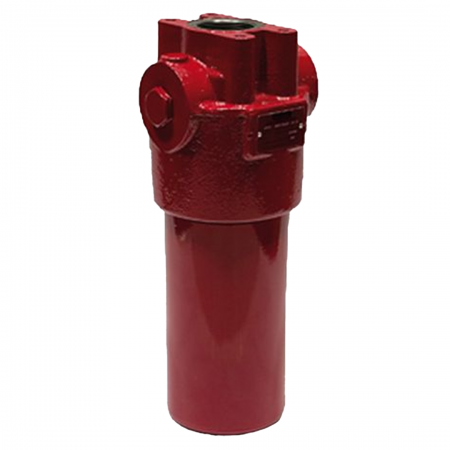

HYDAC Pressure Filters HDF and HDFF provide reliable hydraulic filtration with flow rates up to 380 l/min and pressure levels up to 280 bar. The HDF model includes an optional no-element valve for added safety, while the HDFF variant supports reversible oil flow. Both feature a robust screw-in filter bowl, clogging indicator connection, and L-configured port for efficient system operation.
Key Features:

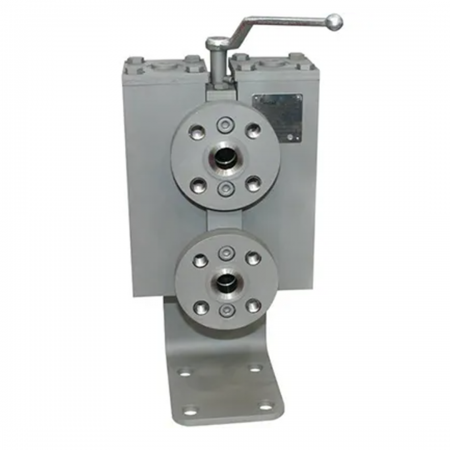

HYDAC AFLD Reversible Inline Filters are built to meet API 614 standards for lube oil systems and other demanding applications. Designed for flow rates up to 1700 l/min and pressures up to 40 bar, they offer reliable operation with ANSI flanged connections and easy changeover via an integrated transfer valve.
Key Features:

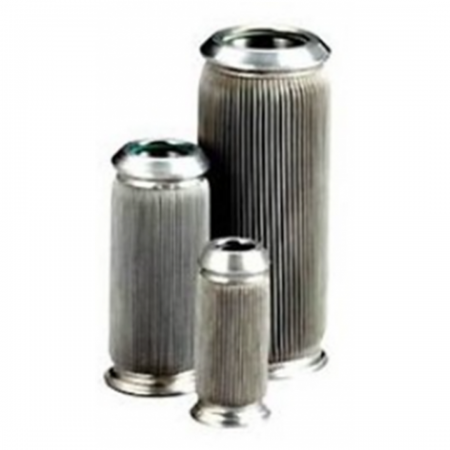

The HYDAC "DH" Stainless Steel Pressure Elements are designed for demanding hydraulic applications, offering reliable filtration under high differential pressures up to 210 bar and extreme operating temperatures up to 400°C. Compatible with "D" type filter housings, these elements provide robust performance using a range of filter media including Betamicron®, Chemicron®, and wire mesh. Key features are as follows:

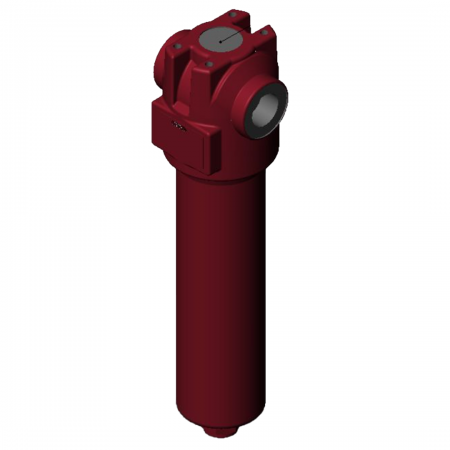

HYDAC Inline Pressure Filters DFNF/LFNF ensure efficient filtration in hydraulic systems with flow rates up to 100 l/min and pressure levels up to 100 bar. Designed for reversible flow, they feature a screw-in filter bowl, clogging indicator connection, and optional bypass cracking pressure, providing reliable contaminant control and system protection.
Key Features:

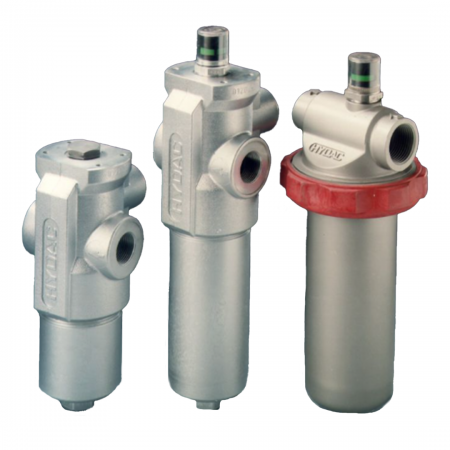

HYDAC LFM Inline Filters with Circulation Valve are compact, high-performance filters for flow rates up to 120 l/min and pressures up to 63 bar. Designed with integrated differential pressure-controlled relief valves, these filters ensure reliable protection of hydraulic systems.
Key Features:

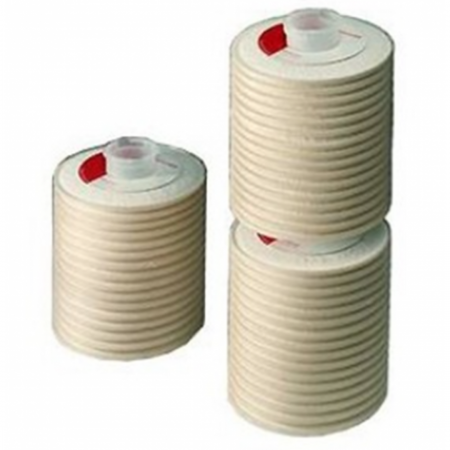

Engineered for superior filtration performance, the HYDAC "DM" Dimicron Filter Elements are the ideal solution for applications requiring high-efficiency particle removal and long-lasting cleanliness. Built with advanced glass fiber media, these elements are specially designed to deliver high dedusting velocities and exceptional contamination retention, even in the most demanding operating environments.
Key Features:

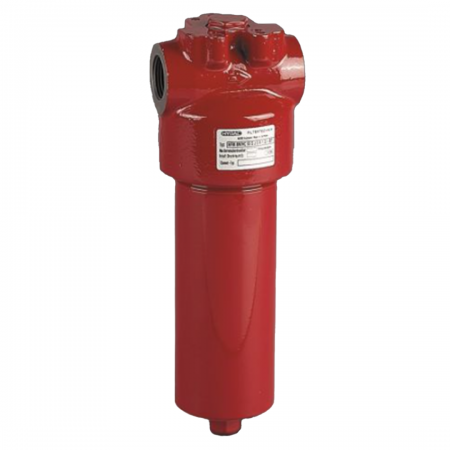

HYDAC Pressure Filters HFM offer robust hydraulic filtration, supporting flow rates up to 140 l/min and pressures up to 400 bar. Featuring a screw-in filter bowl, built-in bypass valve, and clogging indicator connection, they ensure reliable system protection. Designed for durability, they are compatible with various hydraulic fluids and customizable to meet specific requirements.
Key Features:

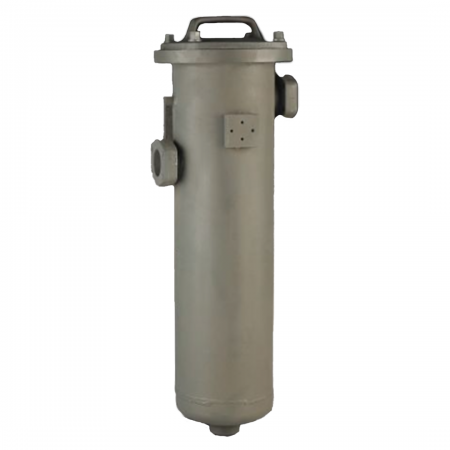

The HYDAC RFLR Inline Filter with Magnetic Core is designed for return line filtration with flow rates up to 1200 l/min and pressures up to 25 bar. Featuring magnetic pre-filtration and top-removable elements, it ensures efficient contaminant removal and easy maintenance.
Key Features:
Key Features:

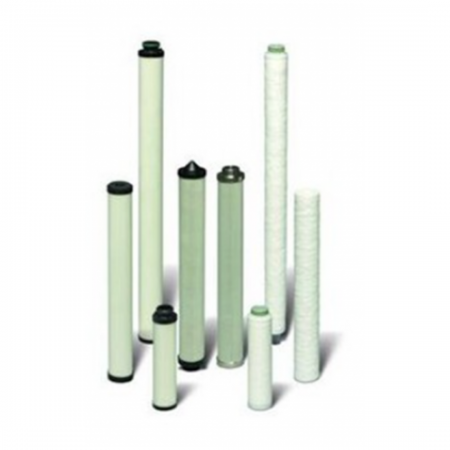

The HYDAC "FM" Flexmicron Filter Elements are high-performance cartridge filters designed for efficient solid particle separation across a wide range of industrial applications. With exceptional flexibility in filter ratings, media compatibility, and adaptor types, the Flexmicron series offers tailored solutions—from premium pleated elements for ultra-clean systems to economical options for standard filtration needs. Engineered for use in component cleaning systems, testing facilities, hydraulic and lubrication plants, and cooling lubricants, these elements deliver up to 99.99% filtration efficiency with ratings from 1 to 90 µm.

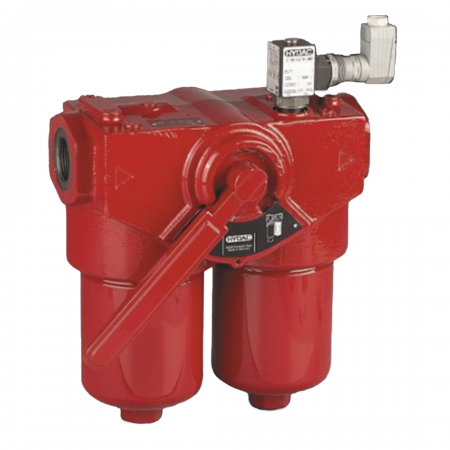

HYDAC Reversible Inline Filters FMND, built in accordance with DIN 24550, offer efficient filtration for hydraulic systems with flow rates up to 400 l/min and pressure levels up to 250 bar. Designed with a steel filter bowl and an integrated change-over valve, they ensure smooth operation, while features like a clogging indicator connection and optional oil drain plug enhance system protection and maintenance ease.
Key Features:
