Carr Lane Slotted-Heel Padded Clamp Straps

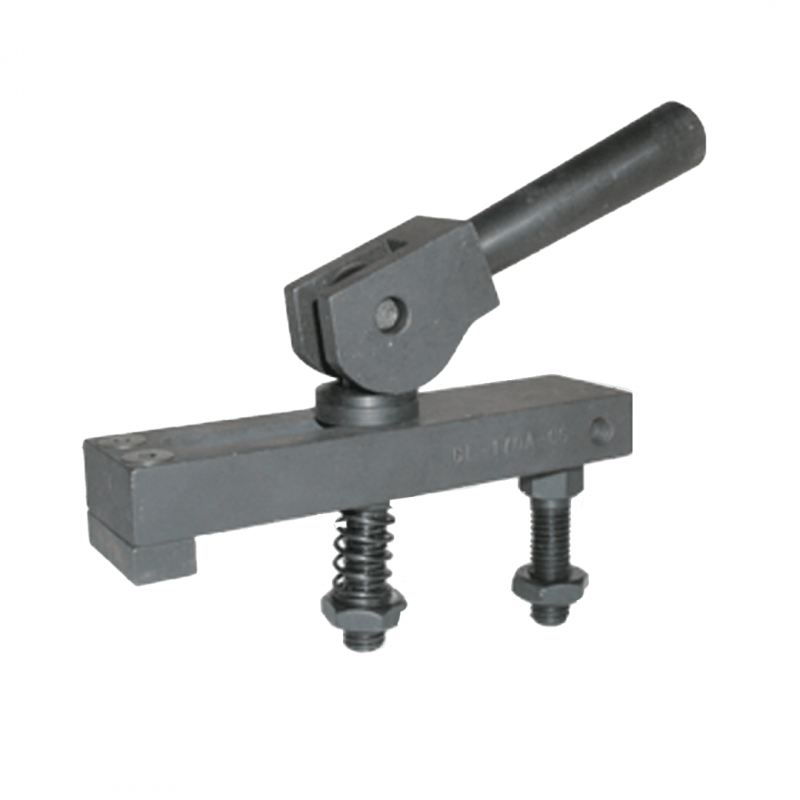

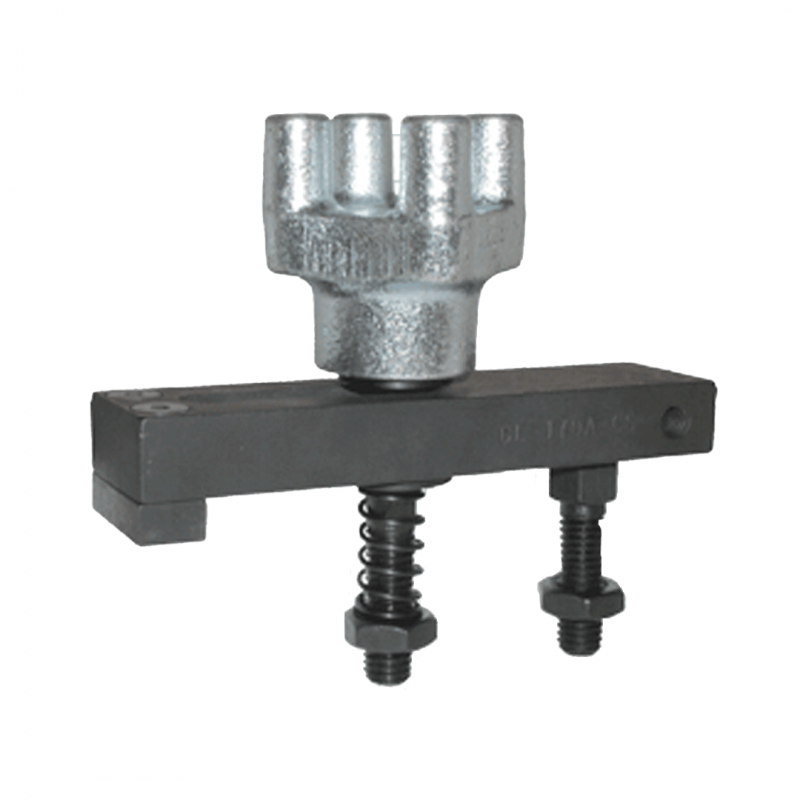

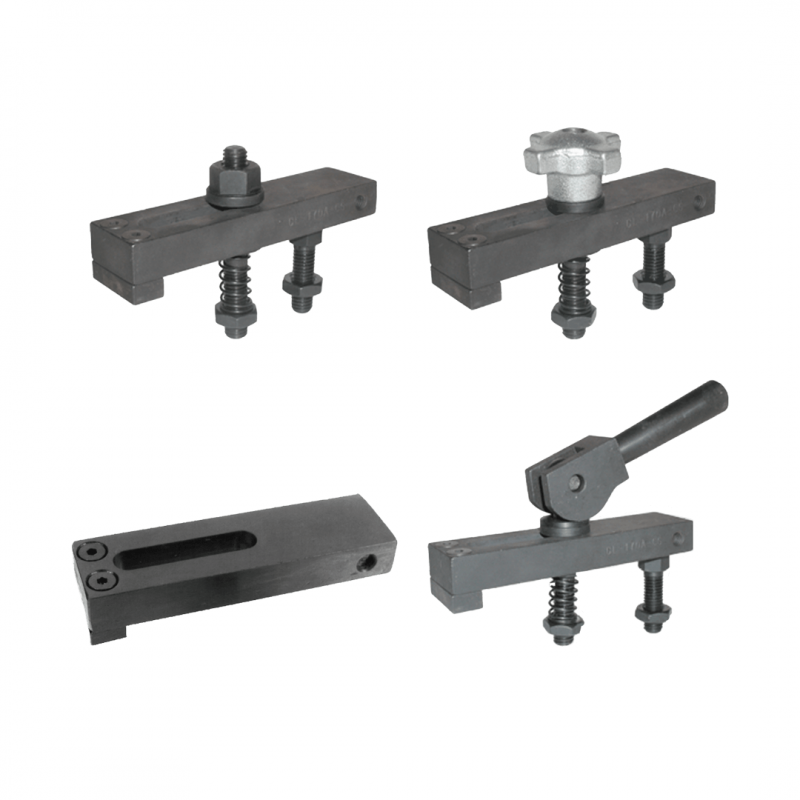

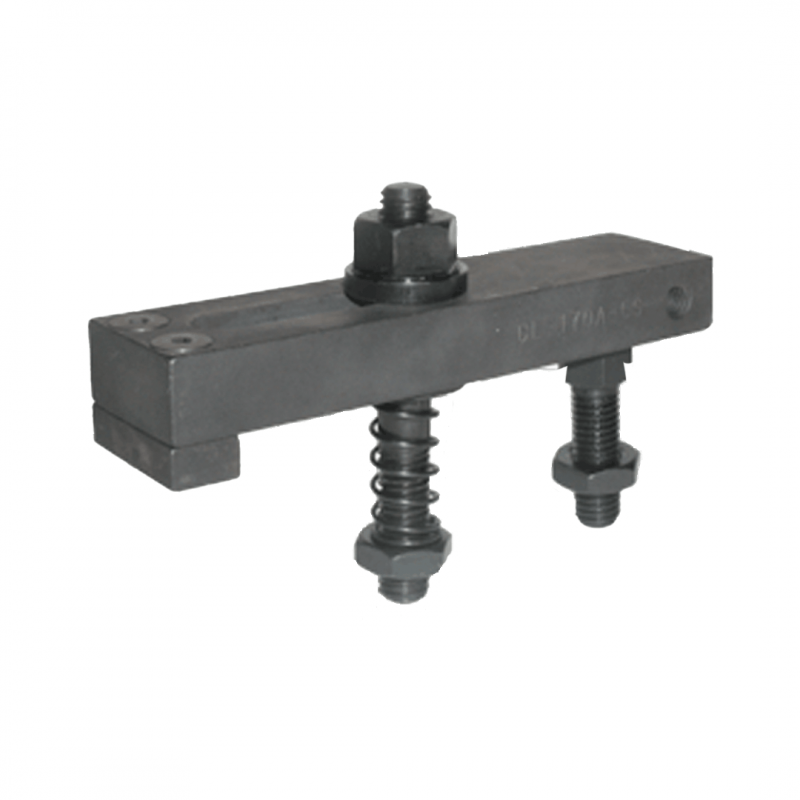

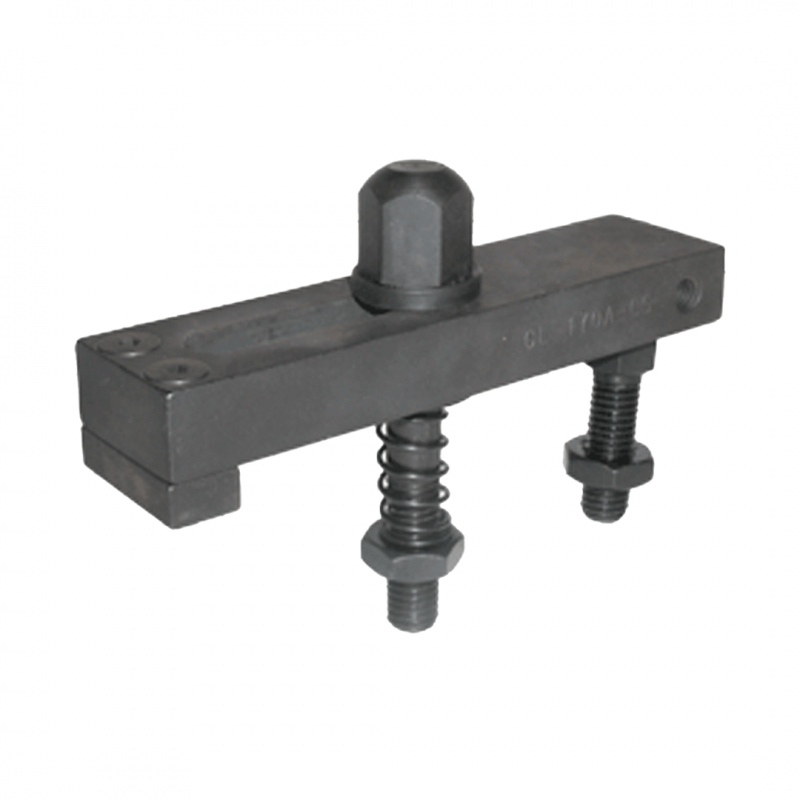

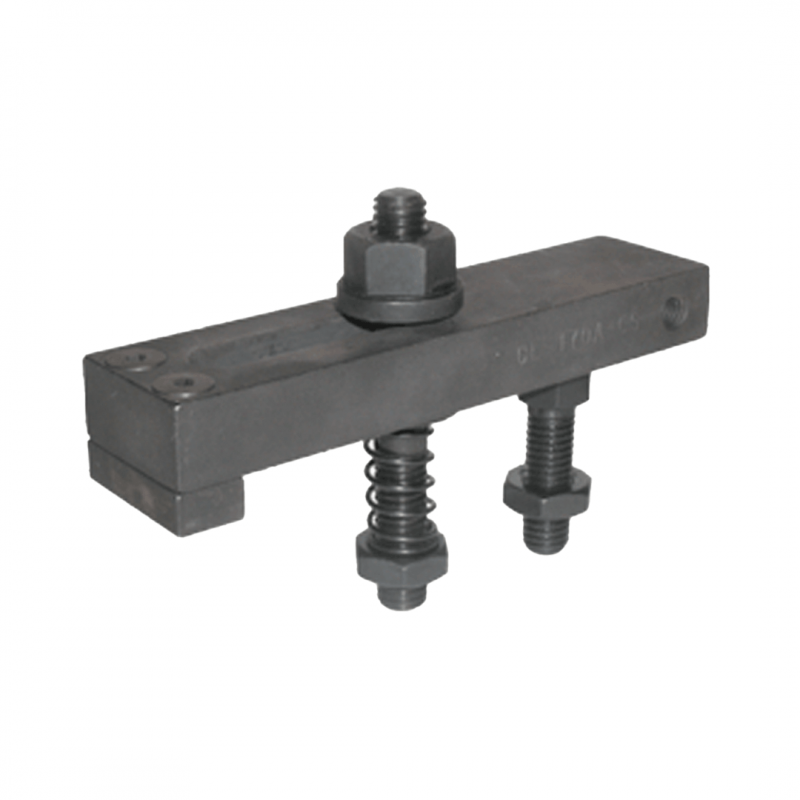

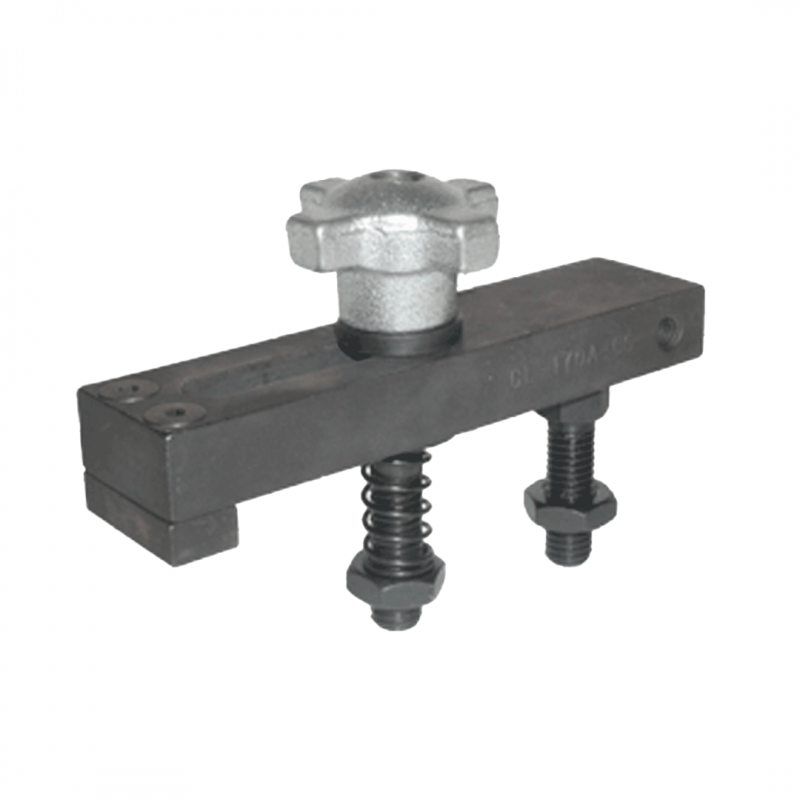

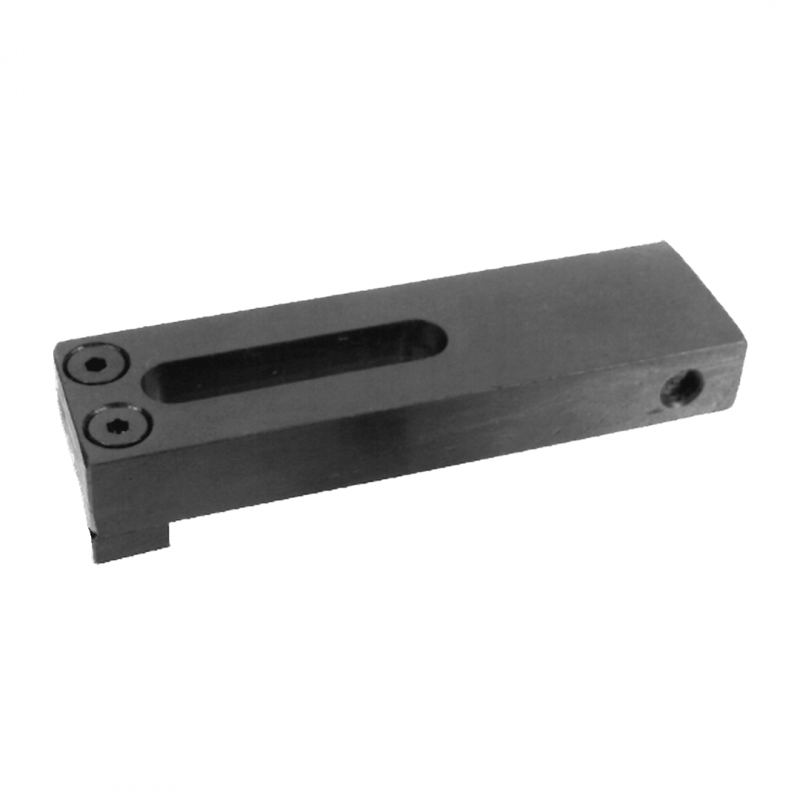

The Slotted-Heel Clamp Strap includes a replaceable clamping pad secured with two screws. The padded straps also accommodate custom pads or other attachments. These straps feature a slot underneath, enabling them to slide back easily for straightforward loading. Additionally, each side has a tapped hole at the rear for installing a Finger Pin. These available to accommodate stud sizes ranging from1/4-20 to 1/2-13 (M6 to M12 in metric), each in a choice of strap lengths. This clamp strap can be ordered individually or in a complete clamp assembly. The available assemblies are assembly with spherical nut & washer, assembly with flange nut, assembly with hand knob & spherical washer, assembly with acorn nut & spherical washer, assembly with bar knob & spherical washer and assembly with cam handle & spherical washer.

Print page

Products
Downloads
Description
Part Number Material Number Type Length Thread Price Add to Parts List
CL-165-CS CL-165-CS Strap 2 Not Threaded £34.78
£41.74 Inc. VAT
CL-166-CS CL-166-CS Strap 2 Not Threaded £42.07
£50.48 Inc. VAT
CL-168-CS CL-168-CS Strap 2 Not Threaded £43.90
£52.68 Inc. VAT
CL-169-CS CL-169-CS Strap 2 Not Threaded £46.76
£56.11 Inc. VAT
CL-170A-CS CL-170A-CS Strap 2 Not Threaded £58.01
£69.61 Inc. VAT
CL-168-SHPA-1 CL-168-SHPA-1 Spherical Nut and Washer 4-1/2 3/8-16 £51.16
£61.39 Inc. VAT
CL-166-SHPA-1 CL-166-SHPA-1 Spherical Nut and Washer 3-1/2 3/8-16 £48.82
£58.58 Inc. VAT
CL-170A-SHPA-1 CL-170A-SHPA-1 Spherical Nut and Washer 6 1/2-13 £59.63
£71.56 Inc. VAT
CL-165-SHPA-1 CL-165-SHPA-1 Spherical Nut and Washer 2 1/4-20 £47.20
£56.64 Inc. VAT
CL-169-SHPA-1 CL-169-SHPA-1 Spherical Nut and Washer 4-1/2 1/2-13 £56.66
£67.99 Inc. VAT
CL-169-SHPA-2 CL-169-SHPA-2 Flange Nut 4-1/2 1/2-13 £55.94
£67.13 Inc. VAT
CL-168-SHPA-2 CL-168-SHPA-2 Flange Nut 4-1/2 3/8-16 £49.02
£58.82 Inc. VAT
CL-166-SHPA-2 CL-166-SHPA-2 Flange Nut 3-1/2 3/8-16 £46.86
£56.23 Inc. VAT
CL-170A-SHPA-2 CL-170A-SHPA-2 Flange Nut 6 1/2-13 £58.06
£69.67 Inc. VAT
CL-165-SHPA-2 CL-165-SHPA-2 Flange Nut 2 1/4-20 £45.61
£54.73 Inc. VAT
CL-165-SHPA-4 CL-165-SHPA-4 Hand Knob and Spherical Washer 2 1/4-20 £52.28
£62.74 Inc. VAT
CL-169-SHPA-4 CL-169-SHPA-4 Hand Knob and Spherical Washer 4-1/2 1/2-13 £61.34
£73.61 Inc. VAT
CL-168-SHPA-4 CL-168-SHPA-4 Hand Knob and Spherical Washer 4-1/2 3/8-16 £55.73
£66.88 Inc. VAT
CL-166-SHPA-4 CL-166-SHPA-4 Hand Knob and Spherical Washer 3-1/2 3/8-16 £53.68
£64.42 Inc. VAT
CL-170A-SHPA-4 CL-170A-SHPA-4 Hand Knob and Spherical Washer 6 1/2-13 £64.03
£76.84 Inc. VAT
CL-170A-SHPA-5 CL-170A-SHPA-5 Acorn Nut and Spherical Washer 6 1/2-13 £61.87
£74.24 Inc. VAT
CL-165-SHPA-5 CL-165-SHPA-5 Acorn Nut and Spherical Washer 2 1/4-20 £47.16
£56.59 Inc. VAT
CL-169-SHPA-5 CL-169-SHPA-5 Acorn Nut and Spherical Washer 4-1/2 1/2-13 £58.82
£70.58 Inc. VAT
CL-168-SHPA-5 CL-168-SHPA-5 Acorn Nut and Spherical Washer 4-1/2 3/8-16 £52.45
£62.94 Inc. VAT
CL-166-SHPA-5 CL-166-SHPA-5 Acorn Nut and Spherical Washer 3-1/2 3/8-16 £50.02
£60.02 Inc. VAT
CL-166-SHPA-7 CL-166-SHPA-7 Cam Handle and Spherical Washer 3-1/2 3/8-16 £82.04
£98.45 Inc. VAT
CL-165-SHPA-7 CL-165-SHPA-7 Cam Handle and Spherical Washer 2 1/4-20 £84.29
£101.15 Inc. VAT
CL-170A-SHPA-7 CL-170A-SHPA-7 Cam Handle and Spherical Washer 6 1/2-13 £130.54
£156.65 Inc. VAT
CL-169-SHPA-7 CL-169-SHPA-7 Cam Handle and Spherical Washer 4-1/2 1/2-13 £124.54
£149.45 Inc. VAT
CL-168-SHPA-7 CL-168-SHPA-7 Cam Handle and Spherical Washer 4-1/2 3/8-16 £83.40
£100.08 Inc. VAT
CL-170A-SHPA-6 CL-170A-SHPA-6 Bar Knob and Spherical Washer 6 1/2-13 £91.36
£109.63 Inc. VAT
CL-169-SHPA-6 CL-169-SHPA-6 Bar Knob and Spherical Washer 4-1/2 1/2-13 £89.30
£107.16 Inc. VAT
CL-168-SHPA-6 CL-168-SHPA-6 Bar Knob and Spherical Washer 4-1/2 3/8-16 £72.89
£87.47 Inc. VAT
CL-166-SHPA-6 CL-166-SHPA-6 Bar Knob and Spherical Washer 3-1/2 3/8-16 £72.46
£86.95 Inc. VAT

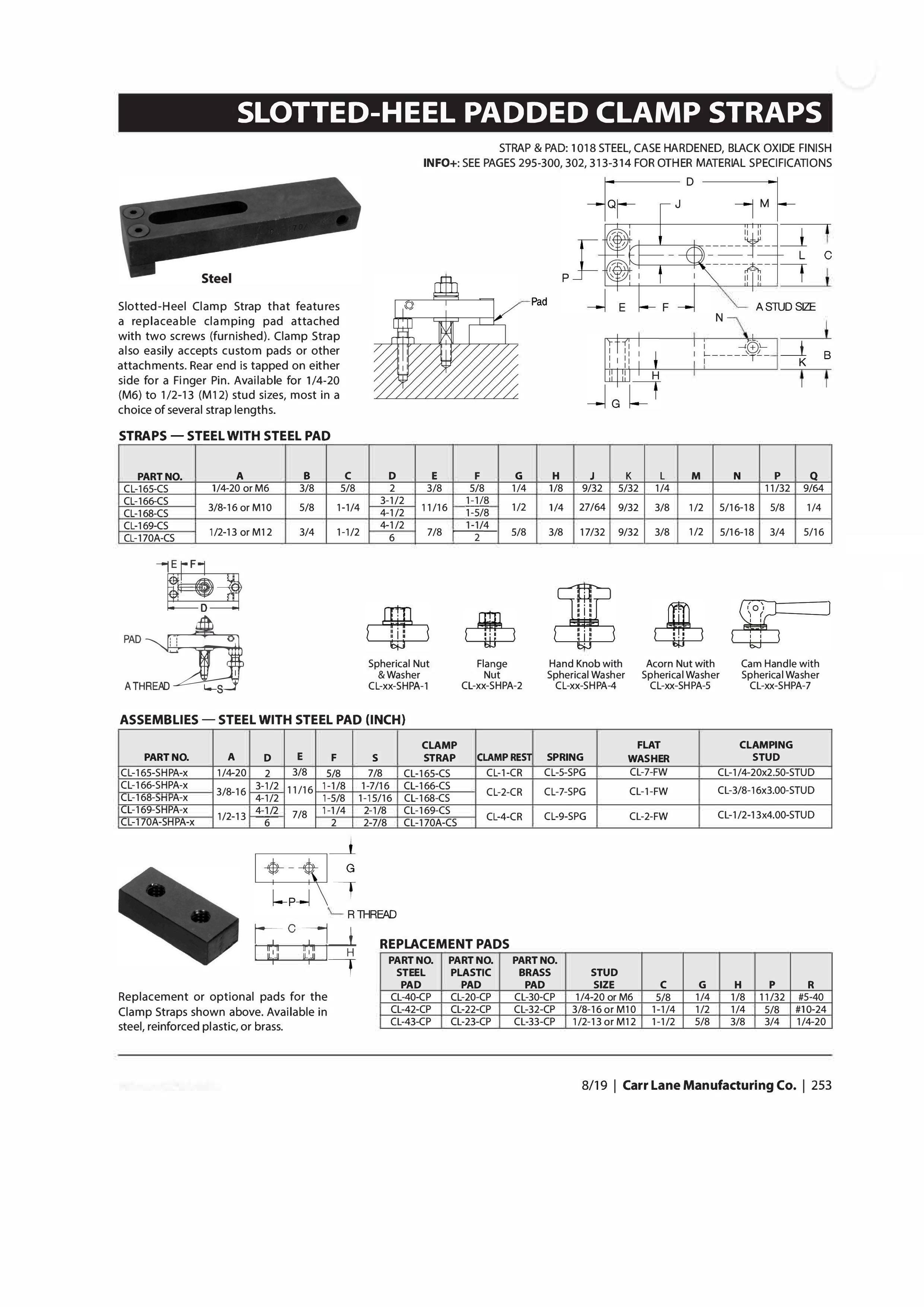

Carr Lane Slotted-Heel Padded Clamp Straps datasheet

Carr Lane Slotted-Heel Padded Clamp Straps and Assemblies

The Slotted-Heel Clamp Strap includes a replaceable clamping pad secured with two screws. The padded straps also accommodate custom pads or other attachments. These straps feature a slot underneath, enabling them to slide back easily for straightforward loading. Additionally, each side has a tapped hole at the rear for installing a Finger Pin. These available to accommodate stud sizes ranging from1/4-20 to 1/2-13 (M6 to M12 in metric), each in a choice of strap lengths. This clamp strap can be ordered individually or in a complete clamp assembly. The available assemblies are assembly with spherical nut & washer, assembly with flange nut, assembly with hand knob & spherical washer, assembly with acorn nut & spherical washer, assembly with bar knob & spherical washer and assembly with cam handle & spherical washer.
