Alignment Pins and Accessories

Marine detent pins are quick-release pins used in applications where grip length isn't important. These alignment pins are are equipped with a on spring-loaded locking ball and has a ring rather than a solid shoulder. They are made to withstand extra corrosion resistance therefore are made of 316 stainless steel. The locking balls use spring force to lock the pin in place and doesn't use positive locking like a ball lock pin. Using these detent pins is easy, simply push the pin to insert and pull to remove.

• Nominal shank dia: 3/16" - 1/2"
• Grip lengths (inches): 0.50 to 4.00
• Shank diameters from 3/16” to 1/2”, each available in a choice of several standard grip lengths

Carr Lane locking-pin bushings are compatible with Locking L Pins, Locking T Pins and Locking Clamping Pins. They are equipped with a retainer spring clip on the inside diameter, and is compatible with all types of locking pins and locating screws. These precision bushings are designed to be press-fitted into a standard reamed hole and can be securely fastened with a lock screw to ensure the bushing remains in place.

• Available in Metric and Imperial sizes
• Available in sizes from 3/16" - 1/2" (6mm-12mm)

 Locating Tool for holding knurled Slotted Locator Bushings in place during embedment. Stepped locating pin has a slip-fit tolerance shank to fit a locating liner bushing in a template plate and a head diameter with flats to fit a Slotted Locator Bushing perfectly.

• Pin Diameter - 3/16 - 1/2
• Five variations available

Terminals are for crimping on our nylon-coated cable, to allow attaching the end with a screw

• Fits Cable - Size 2 - 3
• Diameter - .13 - .21
• Copper, Electro Tin Plated

Carr Lane Adjustable ball lock pins have an adjustable grip length and can be used from clamping or simply to provide a varied grip length. This range is available in three variants including: T handle, Knob handle and L handle. Available in pin diameters from 1/4 to 1" (6 to 20mm in metric), in stainless steel only. Pins with special grip lengths up to 12” (300mm) and other special features are available with additional lead time. If you wish to configure your own marine ball lock pins do not hesitate to contact our sales team.

• Choice of three handle styles: Knob, T, and L
• Available Stainless Steel only
• Adjustable grip length and standard shank diameters from 1/4 to 1" (6 to 20mm)

Ferrules are for crimping on our nylon-coated cable to make a loop, available for all four standard cable sizes

• Fits cable - Size 1 - 4
• Length - .315 - 1.260
• Copper, Electro Tin Plated

Jig Pins have precision-ground pin diameter to ensure accurate hole alignment. L Pins and T Pins are removable locating pins with a durable construction, each featuring a handle end with a small hole for attaching an optional cable. These pins come in a variety of diameters and lengths. Jig Pins, similar to L and T Pins, incorporate an integral shoulder to keep the handle raised. Carr Lane also offers locking L Pins and T Pins with a lock screw that securely holds bushings in place. These pins are available in both imperial and metric sizes.

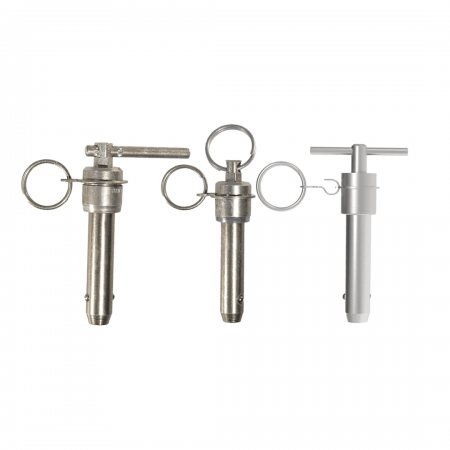

Carr Lane double acting ball lock pins are available with three different handle variants including: Ring handle, T handle and L handle. Ball Lock Pins are high-strength, quick-release alignment pins with a precision ground shank and positive locking. Ball Lock Pins are high-strength, quick-release alignment pins with a precision ground shank and positive locking. These pins are available in pin diameters from 3/16 to 1" (5 to 20mm in metric). . If you wish to configure your own double acting ball lock pins do not hesitate to contact our sales team.

• T Handle, L Handle, Ring Handle
• Nominal Shank Diameter - 3/16 - 1"
• Grip Length (") - 1.00-5.00

High-strength stranded wire cable with a green nylon coatin and a choice of four cable diameters

• Galvanised steel or Stainless steel, Nylon coated
• Cable Diameter - .044 - .187
• Cable Length - 50FT - 1000FT

Carr Lane Marine ball lock pins are available in three variations including: button handle, recessed button handle and ring handle. This range is only available in stainless steel to provide extra protection from corrosion in marine environments. Ball lock pins are high-strength, quick-release alignment pins with a precision ground shank. These are available in pin diameters from 3/16 to 3/4" (5 to 16mm in metric).Pins with special grip lengths up to 12” (300mm) and other special features can be made to order.  If you wish to configure your own marine ball lock pins do not hesitate to contact our sales team.

• Choice of three handle styles: Buttons, Recessed Button and Ring
• Shank diameters from 3/16 to 3/4” (5 to 16mm in metric), each available in a choice of several standard grip lengths
• Available from stock only in the standard grip lengths listed below (other grip length available as specials)

Receiver Caps are ideal for securring Ball Lock Pins used in clevis applications, the caps inside diameter fits the Ball Lock Pin exactly

• Metric and Imperial sizes available
• Internal Diameter - 3/16 - 1 or 5mm - 20mm
• External Diameter - .50 - 1.50

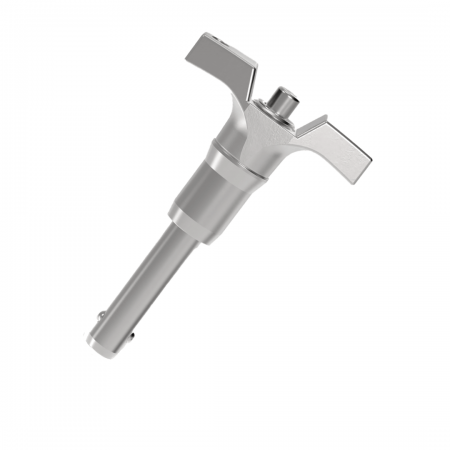

Carr Lane T- handle heavy duty ball lock pins are one of four variations within the heavy-duty ball lock pin range. The heavy-duty ball lock pins act similarly to standard ball lock pins with the difference being that they have a larger, heavier handle for rough service. Available in pin diameters from 3/16 to 1/2" (5 to 12mm in metric), in stainless steel only. Pins with special grip lengths up to 12” (300mm) and other special features are available with additional lead time. If you wish to configure your own Heavy duty ball lock pins do not hesitate to contact our sales team.

• Available in stainless steel only
• Available in pin diameters from 3/16 to 1/2" (5 to 12mm in metric)
• Available in both metric and imperial sizing
