The HC4H is a very compact high-pressure unit capable of delivering pressure up to 3,000 bar weighing only 4.0 kg. It is ideal for use in portable applications like on power packs.

The HC4H raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. With the choice of different high- pressure adapters, a variety of threads can be obtained from the M22x1.5 thread in the HP port. Higher pressure is available on request.

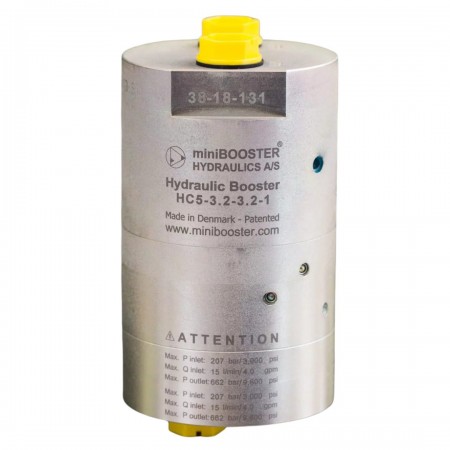

The HC5 is a double-acting miniBOOSTER incorporating two separate intensification circuits. As the function diagram indicates, changing the position of the control valve CV switches intensification from one circuit to another.

It is ideal for use in applications where high pressure is required in separate activation steps such as double-acting cylinders, combination cutter spreader tools, etc. Like the HC2, the HC5 is a compact unit weighing only 3.0 kg.

The HC6 is a high-flow unit which is capable of delivering up to 28.3 l/min flow on the high-pressure end.

Like other miniBOOSTER models, the HC6 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC6 is a compact unit weighing only 9.5 kg.

The HC6 is a high-flow unit which is capable of delivering up to 28.3 l/min flow on the high-pressure end.

Like other miniBOOSTER models, the HC6 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC6 is a compact unit weighing only 9.5 kg.

The HC6D-D is a high-flow dual-acting unit, which is capable of delivering up to 65.0 l/min flow on the high-pressure end.Like other miniBOOSTER models, the HC6D-D raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.

Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC6D-D is a compact unit weighting 20 kg. The hole pattern is a miniBOOSTER design. HC6D mounted with HC6D-HKIT can be directly replaced by HC6D-D.

The HC6H is an ultra high-pressure unit which is capable of delivering up to 5,000 bar and 1.7 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC6H raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.

Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC6H is a compact unit weighing only 11.0 kg.

The HC62 is a high-flow unit which is capable of delivering up to 43 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC62 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.

Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC62 is a compact unit weighing only 50.0 kg.

HP flange mounting is optional. Furthermore, it is possible to flange multiple HC62 boosters in order to achieve higher flow.

The HC63 is a high-flow unit which is capable of delivering up to 64.5 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC63 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.

Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC63 is a compact unit weighing only 60.0 kg.

HP flange mounting is optional. Furthermore, it is possible to flange multiple HC63 boosters in order to achieve higher flow

The HC7 is a very compact high-pressure unit capable of delivering pressure up to 2,000 bar weighing only 1.5 kg. It is ideal for use in portable applications like on power packs.

The HC7 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. With the choice of different high- pressure adapters, a variety of threads can be obtained from the M22x1.5 thread in the HP port. Higher pressure is available on request.

The HC7-F is a very compact high-pressure unit capable of delivering pressure up to 2,000 bar weighing only 1.7 kg. The HC7-F is a variant of the HC7 for flange mounting on the low pressure side. The entire pattern is a miniBOOSTER design. It is ideal for use in portable applications like on power packs.

The HC7-F raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. With the choice of different high- pressure adapters, a variety of threads can be obtained from the M22x1.5 thread in the HP port. Higher pressure is available on request.

The HC7-U is a very compact high-pressure unit capable of delivering pressure up to 2,000 bar, weighing only 1.5 kg. It is ideal for use in portable applications like on power packs. Oil from the cylinder will be released directly via T-port to the tank, with a minimum back pressure.

The HC7-U raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. With the choice of different high-pressure adapters, a variety of threads can be obtained from the M22x1.5 thread in the HP port. Higher pressure is available on request.

The HC7H is a very compact high-pressure unit capable of delivering pressure up to 2,600 bar weighing only 1.5 kg. It is ideal for use in portable applications like on power packs.

The HC7H raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. With the choice of different high- pressure adapters, a variety of threads can be obtained from the M22x1.5 thread in the HP port.
