ROEMHELD B1.4841 Bore Clamps: Block-type, without centring function, double acting, for bore diameter 7.8 - 17.7 mm, max. operating pressure 250 bar

OBSOLETE ITEM - CONTACT HYQUIP

• Double acting
• Operating pressure 250 bar maximum
• Bore hole diameter ranges from 7.8 to 17.7 mm
• Maximum low-clamping force 5.1 - 9.8 kN
• Expansion force , radial: 9 - 14 kN

This bore clamp is a double-acting pull-type cylinder. An exchangeable clamping bushing is fixed to the piston. The four segments of the clamping bushing are radially expanded with spring force by a pyramid-shaped clamping bolt. Thus the expansion force is always the same and independent of the hydraulic clamping pressure.

ROEMHELD B1.530 Block Cylinders: with adjustable stroke end cushioning and optional stroke end control double acting

• Maximum operating pressure 500 bar
• Piston diameter 25 - 100 mm
• Rod diameter 16 - 63 mm
• Stroke 25 - 100 mm
• Maximum push force 24.5 - 392 kN

ROEMHELD B1.459 Threaded Body Cylinder:  single acting with spring return

OBSOLETE ITEM - CONTACT HYQUIP

• Operating pressure 160 / 500 bar maximum
• Stroke 10 mm
• Push force 2.5 kN maximum
• M16 external thread

These threaded-body cylinders allow direct tube or hose connection. Due to elimination of the pipe union a particularly compact assembly results. Depending on wall strength and fixing method (thread or bore) a certain adjustment is possible. The cylinders can also be screwed into threaded bores. Sealing is then effected by the sealing nut available as accessory. By adjustment, workpiece tolerances of more than 20 mm can be absorbed.

384 Page Hydac Training Manual

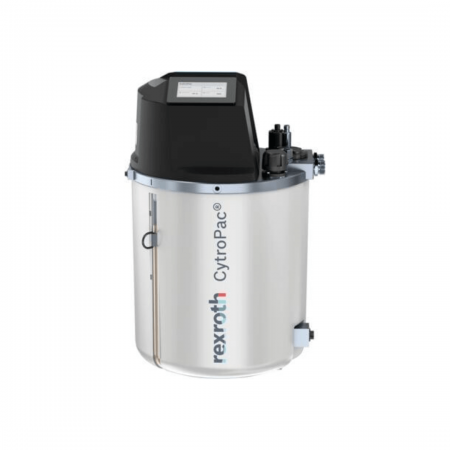

Hydraulic power unit Type CytroPac

The new CytroPac power unit provides maximum power in the smallest space with everything you need for fast installation – including an economical Sytronix drive, completely wired frequency converter and Industry 4.0 compatibility. With powerful 4 KW and pressure of 240 bar in 50 percent less installation space.

• Component series 1X
• Tank Size 20 L
• Maximum operating pressure 240 bar

Enerpac EVO synchronous lifting systems provide precision control suitable for most lifting/lowering applications from a central control system, improving safety and operational productivity.

Valve amplifiers for proportional pressure valves VT-VRPA1-100-1X

For valves:

• DBETR
• 2FRE

Valve amplifier with electrical position feedback for proportional flow control valves, Analog, Modular design VT-MRPA1-150-1X

For valves:

• 2FRE6-2X

Pressure valves type DB..K.. are pilot-operated pressure relief valves for block design installation.

• Sizes 10 and 25
• Component series 1X; 4X
• Maximum operating pressure 350 bar
• Maximum flow 400 l/min

Fixed displacement vane pumps PVH

• Fixed displacement
• Frame size 1, 2
• Size 16 … 79
• Nominal pressure 290 bar
• Maximum pressure 320 bar
• Displacement 15.9 … 79.3 cm³

Internal Gear Pump PGM-4X

•  Fixed displacement
•  Frame sizes 4 and 5
•  Sizes 25 to 125
•  Maximum pressure 210 bar
•  Displacement 25.3 to 125.3 cm3

RT-Series multi-stage telescopic hydraulic cylinders offer a long cylinder stroke in confined spaces

• Capacity: 14 - 31 ton
• Stroke: 270 - 600 mm
• Max. Operating Pressure: 700 bar
