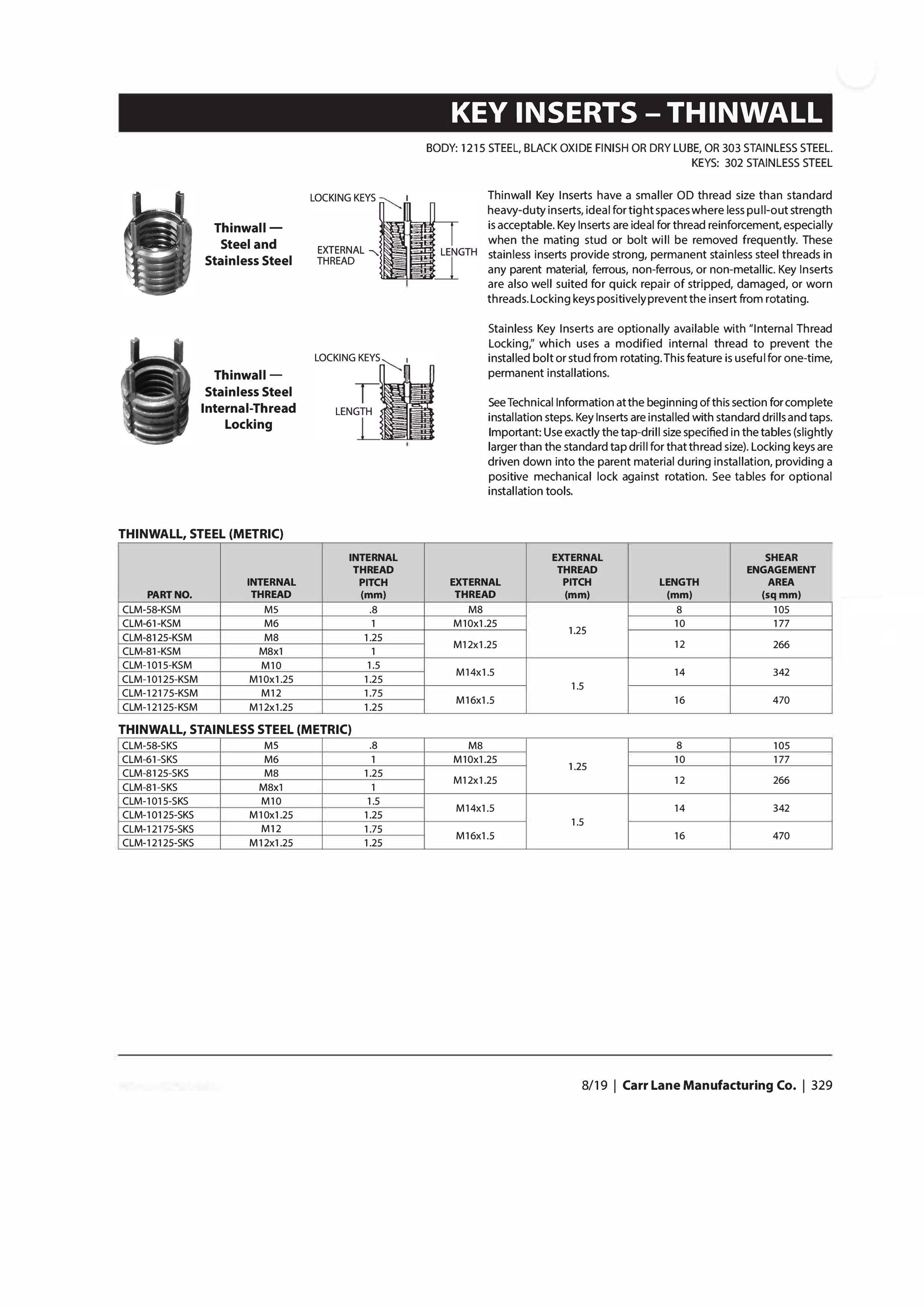

Thinwall Key Inserts have a smaller OD thread size than standard heavy-duty inserts, ideal for tight spaces where less pull-out strength is acceptable
| Part Number | Material Number | Metric or Imperial | Material | Locking or Non-Locking | Internal Thread | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| CLM-61-SKS | Metric | Stainless Steel | Non-Locking | M6 | £7.54 £9.05 Inc. VAT |
|
|
| CLM-61-KSM | Metric | Steel | Non-Locking | M6 | £4.03 £4.84 Inc. VAT |
|
|
| CLM-58-SKS | Metric | Stainless Steel | Non-Locking | M5 | £11.00 £13.20 Inc. VAT |
|
|
| CLM-58-KSM | Metric | Steel | Non-Locking | M5 | £3.76 £4.51 Inc. VAT |
|
|
| CLM-12125-SKS | Metric | Stainless Steel | Non-Locking | M12x1.25 | £0.00 £0.00 Inc. VAT |
|
|
| CLM-12125-KSM | Metric | Steel | Non-Locking | M12x1.25 | £11.30 £13.56 Inc. VAT |
|
|
| CLM-12175-SKS | Metric | Stainless Steel | Non-Locking | M12 | £23.23 £27.88 Inc. VAT |
|
|
| CLM-12175-KSM | Metric | Steel | Non-Locking | M12 | £7.28 £8.74 Inc. VAT |
|
|
| CLM-10125-SKS | Metric | Stainless Steel | Non-Locking | M10x1.25 | £0.00 £0.00 Inc. VAT |
|
|
| CLM-10125-KSM | Metric | Steel | Non-Locking | M10x1.25 | £10.66 £12.79 Inc. VAT |
|
|
| CLM-1015-SKS | Metric | Stainless Steel | Non-Locking | M10 | £20.11 £24.13 Inc. VAT |
|
|
| CLM-1015-KSM | Metric | Steel | Non-Locking | M10 | £5.57 £6.68 Inc. VAT |
|
|
| CLM-81-SKS | Metric | Stainless Steel | Non-Locking | M8x1 | £0.00 £0.00 Inc. VAT |
|
|
| CLM-81-KSM | Metric | Steel | Non-Locking | M8x1 | £5.22 £6.26 Inc. VAT |
|
|
| CLM-8125-SKS | Metric | Stainless Steel | Non-Locking | M8 | £17.47 £20.96 Inc. VAT |
|
|
| CLM-8125-KSM | Metric | Steel | Non-Locking | M8 | £5.23 £6.28 Inc. VAT |
|
| Part Number | Material Number | Metric or Imperial | Material | Locking or Non-Locking | Internal Thread | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| CL-1032-TSKSL | Imperial | Stainless Steel | Locking | #10-32 | £8.56 £10.27 Inc. VAT |
|
|
| CL-1213-TSKS | Imperial | Stainless Steel | Non-Locking | 1/2-13 | £16.50 £19.80 Inc. VAT |
|
|
| CL-3816-TSKS | Imperial | Stainless Steel | Non-Locking | 3/8-16 | £10.00 £12.00 Inc. VAT |
|
|
| CL-51618-TSKS | Imperial | Stainless Steel | Non-Locking | 5/16-18 | £8.39 £10.07 Inc. VAT |
|
|
| CL-1213-TSKSL | Imperial | Stainless Steel | Locking | 1/2-13 | £28.26 £33.91 Inc. VAT |
|
|
| CL-1428-TSKS | Imperial | Stainless Steel | Non-Locking | 1/4-28 | £5.94 £7.13 Inc. VAT |
|
|
| CL-3816-TSKSL | Imperial | Stainless Steel | Locking | 3/8-16 | £19.08 £22.90 Inc. VAT |
|
|
| CL-1420-TSKS | Imperial | Stainless Steel | Non-Locking | 1/4-20 | £5.12 £6.14 Inc. VAT |
|
|
| CL-51618-TSKSL | Imperial | Stainless Steel | Locking | 5/16-18 | £0.00 £0.00 Inc. VAT |
|
|
| CL-1032-TSKS | Imperial | Stainless Steel | Non-Locking | #10-32 | £4.72 £5.66 Inc. VAT |
|
|
| CL-1420-TSKSL | Imperial | Stainless Steel | Locking | 1/4-20 | £8.82 £10.58 Inc. VAT |
|
|
| CL-1024-TSKS | Imperial | Stainless Steel | Non-Locking | #10-24 | £4.72 £5.66 Inc. VAT |
|

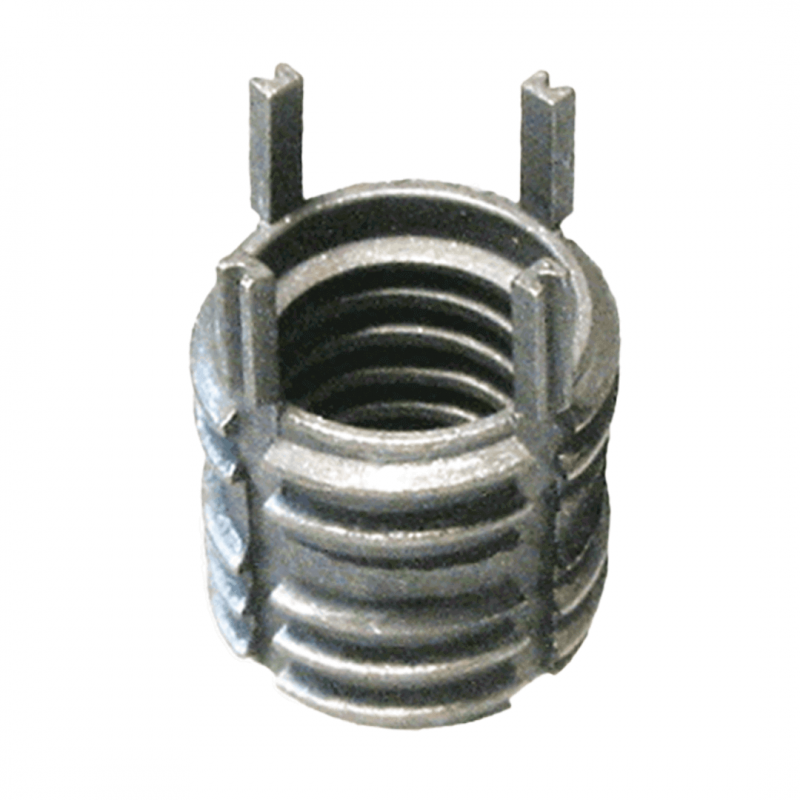

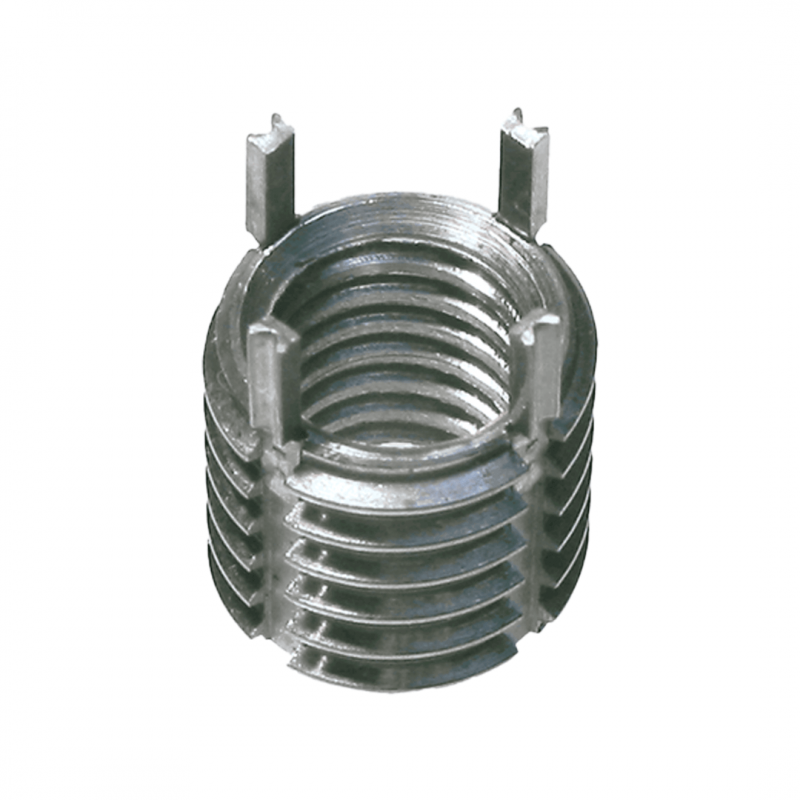

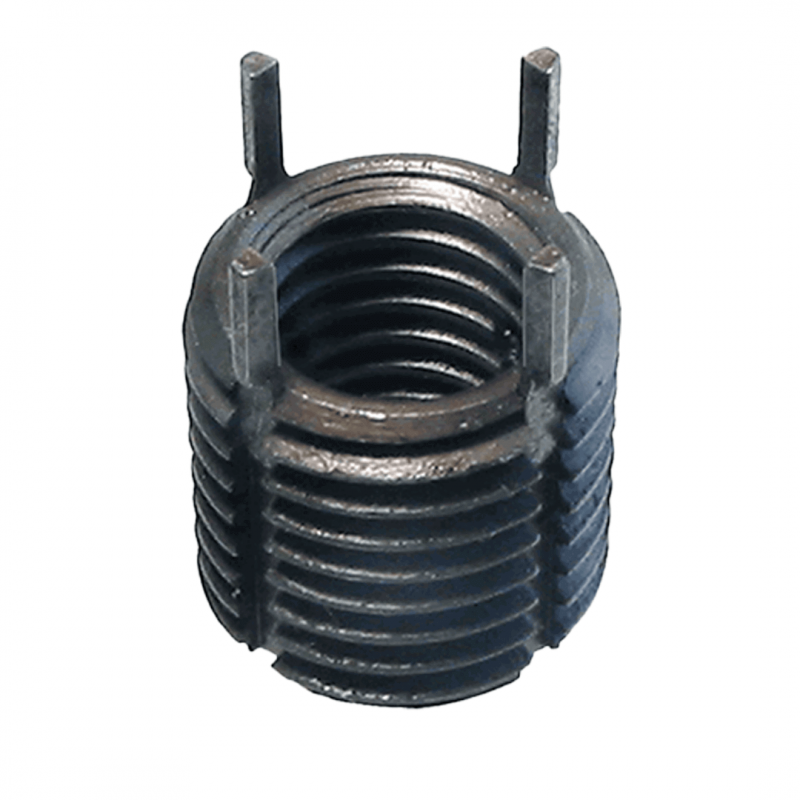

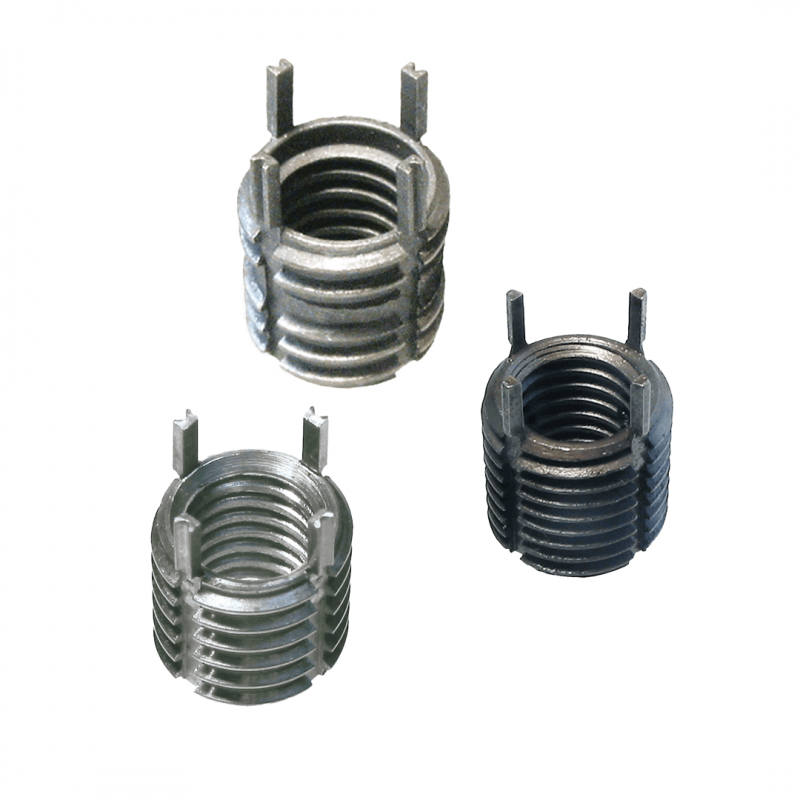

Thinwall Key Inserts have a smaller OD thread size than standard heavy-duty inserts, ideal for tight spaces where less pull-out strength is acceptable. Key inserts are ideal for thread reinforcement, especially when the mating stud or bolt will be removed frequently. The stainless inserts provide strong, permanent stainless steel threads in any parent material, ferrous, non-ferrous, or non-metallic.
Options:
Key Inserts are also well suited for quick repair of stripped, damaged, or worn threads. Locking keys positively prevent the insert from rotating. Stainless Key Inserts are available with the option of 'Internal Thread Locking', which uses a modified internal thread to prevent the installed bolt or stud from rotating, useful in one-time, permanent installations.
