HYQUIP supply the entire range of HYDAC quality filters that guarantee reliable performance and increased service life of components, systems and machinery.
If you require a product not listed or to a modified specification please contact our sales office on +44 (0) 1204 699959 who will be happy to advise.

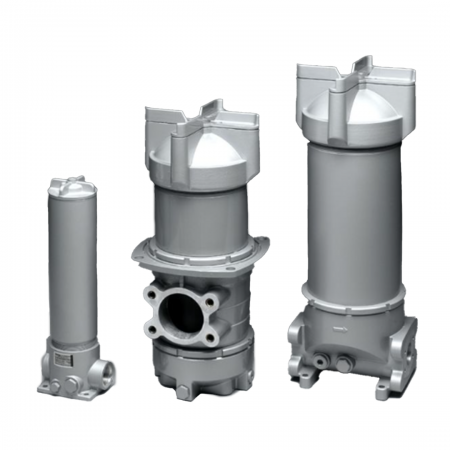

HYDAC NF 2/3.0 Inline Filters are high-performance filtration units designed for flow rates up to 3,500 l/min and pressures up to 25 bar. Engineered with a durable housing and threaded cover plate, these filters offer efficient contaminant removal and reliable protection for demanding hydraulic systems.
Key Features:
HYDAC RFM Return Line Filters with 4-Hole Mounting are designed for reliable and space-efficient return oil filtration in hydraulic systems, supporting flow rates up to 850 l/min and pressure levels up to 10 bar. Built to international standards, these filters feature robust construction, flexible installation options, and high-efficiency filter elements for optimal contamination control and system protection.
Key Features:
VD differential pressure indicators react to the pressure differential between the filter inlet and filter outlet which rises as the level of contamination in the element increases.
HYDAC VD Differential Pressure Indicators (up to 420 bar) detect rising pressure differentials in process filters to indicate when elements need replacement. With response pressures of 2, 5, or 8 bar and optical, electrical, or combined versions, they’re easy to install and help prevent premature element changes while ensuring system reliability.

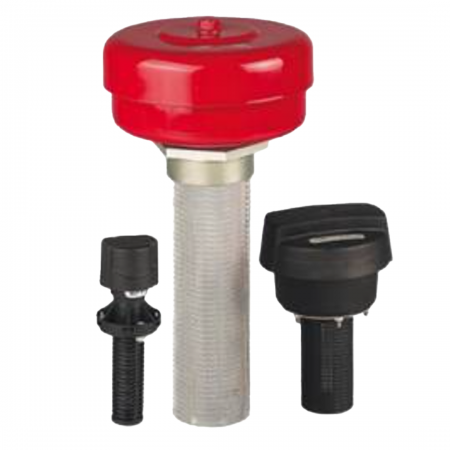

The HYDAC Tank Breather Filter with Filling Strainer ELF combines high airflow up to 5,500 l/min with effective filtration and convenient filling, making it ideal for protecting hydraulic systems. It features integrated filler strainers, multiple installation options, and operates reliably across a wide temperature range.
Key Features:

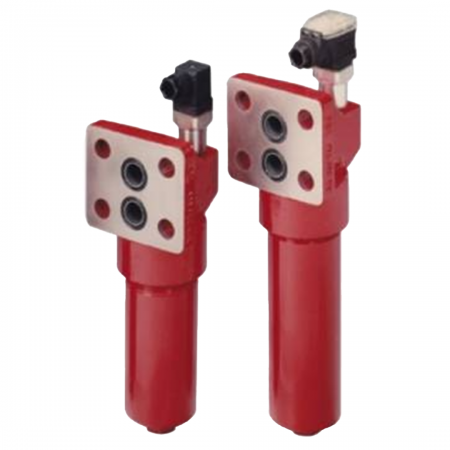

HYDAC Manifold Mounted Pressure Filters DF...MA, DF...QE, DF...MHA, and DF...MHE offer dependable hydraulic filtration, supporting flow rates up to 550 l/min and pressures up to 315 bar. Built for industrial applications, they feature a screw-in filter bowl, mounting holes, and a drain screw with pressure relief. With compatibility for various hydraulic fluids and validated filter elements, they ensure efficient contaminant control.
Key Features:

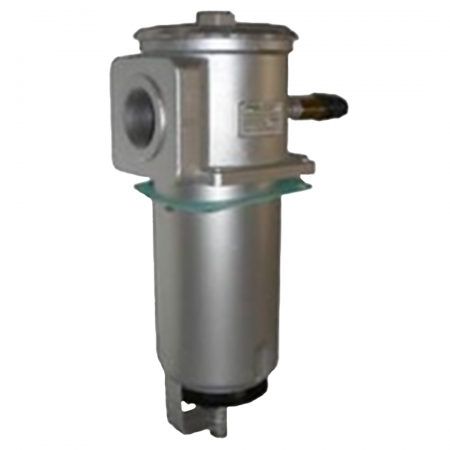

HYDAC Suction Filter SFF with Foot Valve ensures reliable filtration for hydraulic systems, handling flow rates up to 500 l/min. Designed with a bolt-on cover plate and integrated foot valve, it enhances system efficiency. Featuring a standard bypass valve and clogging indicator connection, it provides effective contaminant removal and operational stability.
Key Features:

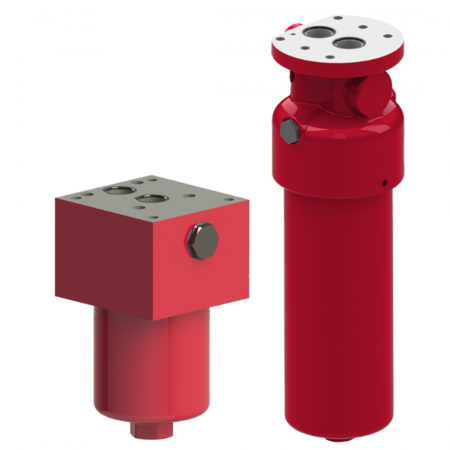

HYDAC's DFP series pressure filters are designed for panel or flange mounting in high-performance hydraulic systems, with models for standard (DFP), reversible flow (DFPF), and stainless steel applications (SSDFP). With flow rates up to 600 l/min and pressure capabilities up to 700 bar, these filters offer robust, reliable filtration for a wide range of industrial needs.
Key Features:

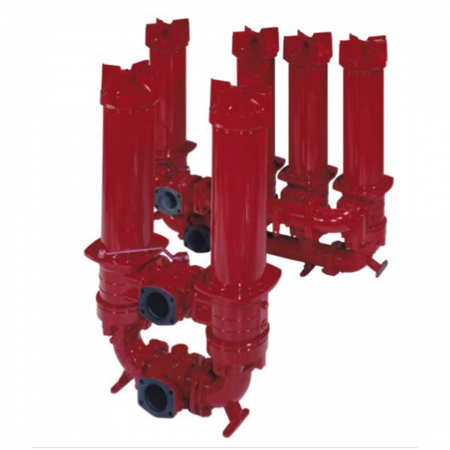

HYDAC NFD 2.0 Reversible Inline Filters are engineered for continuous filtration in high-demand hydraulic systems, supporting flow rates up to 2,000 l/min and pressure levels up to 25 bar. Featuring a dual-housing design with a ball change-over valve, they allow element replacement without interrupting system operation.
Key Features:
HYDAC RFMR Return Line Filters with Magnetic Core offer advanced contamination control for hydraulic systems, combining mechanical filtration with integrated magnetic separation. Designed for return line applications up to 10 bar, RFMR filters feature a top-removable element design and are available in two modular variants—RFMR-KIT and RFMR-SET—for flexible installation and maintenance.
Key Features:

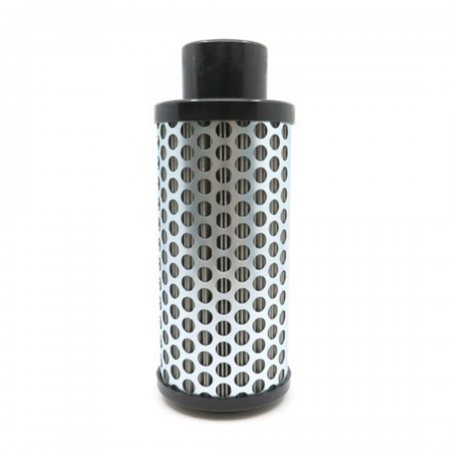

HYDAC "RS" Type Suction filter elements are compatible with SF, SFM, SFF Filter assemblies.
HYDAC "RS" Type Suction Elements, designed for installation in the SF filter series, offer nominal filtration from 10 to 200 µm using durable wire mesh or paper media, with pressure stability up to 5 bar and optional bypass valve, ensuring dependable protection for hydraulic pumps in systems operating up to 100 °C and manufactured to strict ISO quality standards.
VL DirtControllers can be purchased with an optional thermal lockout
HYDAC DirtController VL (max. 25 bar) monitors inlet and differential pressure for continuous tracking of filter and system performance. With response pressures of 2, 3, or 5 bar and available in optical-electrical-analogue or electronic-analogue versions, it offers reliable monitoring and an optional thermal lockout for added safety.
Elements of the "L" type can be used in filling and breather filters, e.g. in the series ELF, BF, LU
HYDAC "L" Type Air Filter Elements, compatible with ELF, BF, and LU series, offer absolute or nominal filtration from 3 to 100 µm using media such as glass fibre, wire mesh, paper, or water-absorbent material. Made from phenolic resin–impregnated paper, these non-cleanable elements operate up to 100 °C and should be replaced at least every 12 months or alongside fluid filters.
