Electronic Temperature Switch ETS 3800 for Separate Temperature Probe & Menu Navigation to VDMA

• Measuring range¹) -30 .. +150°C (-22 .. 302°F)
• Display: 4-digit, LED, 7 segment, red, height of digits 7mm
• Connection, separate temp' probe Female cable connection: M12x1, 4 pole

¹) Depending on the temp' range of the connected temp' sensor, the measurement range of the ETS 3800 may be reduced

The pressure transmitter series HDA 4300 has a ceramic pressure measurement cell with a thick-film strain gauge which has been specially developed for measuring relative pressure in the low pressure range

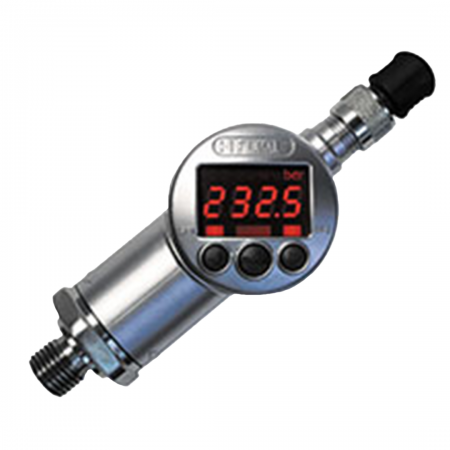

The HYDAC EDS 3100 is a compact electronic pressure switch with a rotatable digital display, ±1% FS accuracy, and 1–2 PNP switch outputs. It offers optional analogue output, independent switching adjustment, and flexible mounting for reliable low-pressure measurement.

Key Features:

• Compensated temperature range -10 .. +70 °C
• Operating temperature range -25 .. +80 °C (-25 .. +60 °C acc. to UL spec.)
• Storage temperature range -40 .. +80 °C
• Fluid temperature range -25 .. +80 °C

Electronic temperature transmitter ETS 4000

• Measuring range: -25 .. +100 °C
• Pressure resistance: 600 bar
• Overload pressure: 900 bar
• Mechanical connection: G1/4 A DIN 3852

Electronic pressure transmitter HDA 4300 with flush membrane has a ceramic measurement cell with a thick film strain gauge for relative pressure measurement in the low pressure range.

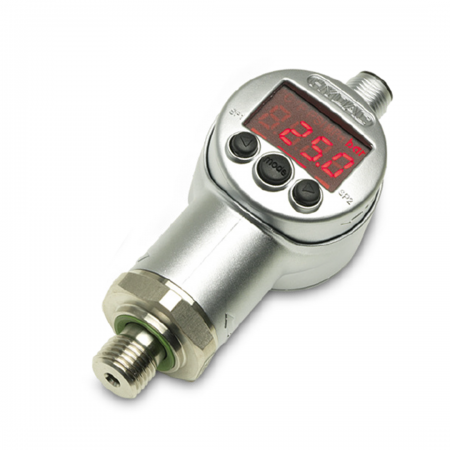

The HYDAC EDS 3100 with VDMA menu navigation is a compact electronic pressure switch with ±1% FS accuracy, rotatable display, 1 PNP output, optional analogue output, and IO-Link for versatile low-pressure applications.

Key Features:

• Compensated temperature range -10 .. +70 °C
• Operating temperature range -25 .. +80 °C
• Storage temperature range -40 .. +80 °C
• Fluid temperature range -25 .. +80 °C

Electronic Temperature Transmitter ETS 4100

• Measuring range: -25 .. +100 °C
• Probe length: 6; 50; 100; 250; 350 mm
• Mechanical connection: G1/4 A DIN 3852

The pressure transmitter HDA 4300 in ATEX version has been specially developed for use in potentially explosive atmospheres and is based on the HDA 4000 series

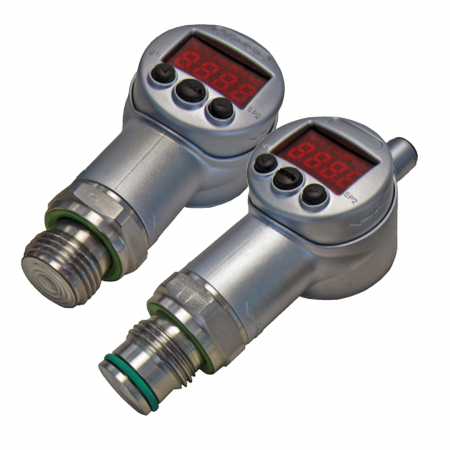

The HYDAC EDS 3300 is a compact electronic pressure switch with a rotatable 4-digit display, ±1% FS accuracy, and 1–2 PNP outputs. It offers optional analogue output, independent switching adjustment, and versatile mounting for reliable low-pressure measurement.

Key Features:

• Compensated temperature range: -10 .. +70 °C
• Operating temperature range: -25 .. +80 °C (-25 .. +60 °C acc. to UL spec.)
• Storage temperature range: -40 .. +80 °C
• Fluid temperature range: -25 .. +80 °C

• Measuring range: -25 .. +100 °C
• Probe length: 6 mm
• Mechanical connection: G1/4 A DIN 3852

Electronic pressure transmitter HDA 4300 CSA intrinsically safe CSA non incendive has been specially developed for the North American market for use in potentially explosive atmospheres

• Measuring range: -25 .. +100 °C
• Probe length: 10.7; 50; 100; 250; 350 mm
• Probe diameter: 8 mm
• Mechanical connection: G1/4 A DIN 3852
