Electronic pressure transmitters for shipbuidling and offshore HDA 4000 are completely sealed to protect it against humidity, vibrations and shock, and is enclosed in a solid stainless steel housing.

The HYDAC EDS 810 pressure switch delivers accurate measurement up to 600 bar with minimal temperature and EMC effects. Its compact, robust design and factory-set N/O or N/C output ensure reliable performance for industrial and vehicle applications.

Key Features:

• Measuring ranges: 40; 60; 100; 160; 250; 400; 600 bar
• Compensated temperature range -25 .. +85 °C
• Compact, robust stainless steel sensor

Accessories for service instruments HMG 500 / 3000

• Case
• Power packs
• Connection adapters
• Connection cable
• Hydraulic adapter
• Rpm probe
• Sensor simulator

Sensors (accessories)

• Pressure transducer HDA 4748-H (with HSI sensor recognition)
• Temperature transmitter ETS 4548-H (with HSI sensor recognition)
• Flow rate transmitter EVS 31x0-H (with HSI sensor recognition)

Electronic temperature switch ETS 3200 is a compact electronic temperature switch with digital display

• Measuring range: -25 .. 100 °C (-13 ... 212 °F)
• Probe lengths: 100; 250; 350 mm
• Pressure resistance: 50 bar

Electronic temperature switch ETS 3200 pressure resistant to 600 bar for inline mounting

• Probe length: 18 mm
• Pressure resistance: 600 bar
• Measuring range: -25 .. 100 °C (-13 ... 212 °F)

Pressure electronic transmitter HDA 4100 has been specially developed for shipbuilding applications and is based on the HDA 4000 series.

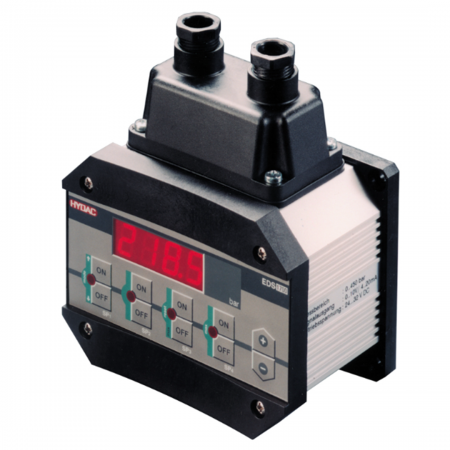

The HYDAC EDS 1700 electronic pressure switch, used in hydraulics and pneumatics, features an integrated pressure sensor, a 4-digit display, and four independently adjustable switching outputs for precise pressure monitoring. It allows easy configuration via a keypad, supports multiple units of measurement, and is designed for frequent switching cycles with high accuracy.

Key Features:

• Measuring ranges: 16; 40; 100; 250; 400; 600 bar
• Compensated temperature range: -10 .. +70 °C
• Operating temperature range: -25 .. +60 °C
• Storage temperature range: -25 .. +60 °C

Electronic temperature switch ETS 3800 for separate temperature probe

• Measuring range¹) -30 .. +150 °C (-22 .. 302 °F)
• Display: 4-digit, LED, 7 segment, red, height of digits 7 mm
• Connection, separate temperature probe Female cable connection: M12x1, 4 pole

¹) Depending on the temperature range of the connected temperature sensor, the measurement range of the ETS 3800 may be reduced.

The pressure transmitter HDA 4100 in ATEX version has been specially developed for use in potentially explosive atmospheres and is based on the HDA 4000 series

Electronic temperature switch ETS 3800 for separate temperature probe with IO-Link interface

• Measuring range¹) -30 . +150°C (-22 . 302°F)
• Display: 4-digit, LED, 7 segment, red, height of digits 7mm
• Connection, separate temperature probe Female cable connection: M12x1, 4 pole

¹) Depending on the temp' range of the connected temp' sensor the measurement range of the ETS 3800 may be reduced.

The pressure transmitter HDA 4100 in CSA version has been specially developed for the North American market for use in potentially explosive atmospheres and is based on the HDA 4000 series
