Electronics - Diagnostics

The HYDAC EVS 3100-H / 3110-H Flow Rate Transmitter features HSI sensor recognition for seamless integration with HYDAC instruments, enabling automatic setup and data transfer. Suitable for viscosities from 1–100 cSt and pressures up to 400 bar, it also allows connection of temperature and pressure sensors for enhanced monitoring.

Key Features:

• Fully automatic recognition by, and voltage supply from, HYDAC measuring instruments HMG 500, HMG 510, HMG 3000, HMG 3010 or CMU 1000

The HYDAC ETS 380 is a compact electronic temperature switch designed for use with external temperature probes. With a measuring range of -30°C to +150°C, it features a 3-digit digital display, configurable switching outputs, and an optional 4–20 mA analogue output for versatile application setups.

Key Features:

• Measuring range¹) -30 .. +150 °C (-22 .. 302 °F)
• Standard (for external temperature sensors)

Depending on the temperature range of the connected temperature sensor, the indication range of the ETS 380 may be reduced

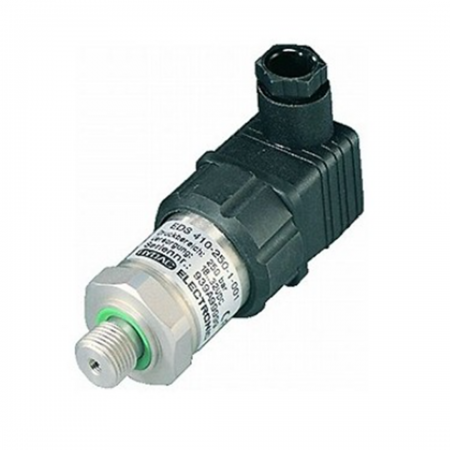

The HYDAC EDS 410 is a compact, robust electronic pressure switch designed for high-volume OEM applications. Based on the EDS 4000 series, it offers factory-set switching points, excellent temperature stability, and strong EMC performance.

Key Features:

• Torque value: 20 Nm
• Compensated temperature range -25 .. +85 °C
• Storage temperature range: -40 .. +100 °C
• Supply voltage 8 .. 32 V DC

The HMG 2500 device is designed primarily to record pressure, temperature and flow rate values which are the standard variables in hydraulics and pneumatics. Due to the wide range of functions and its simple handling, the HMG 2500 is just as appropriate for users who take measurements only occasionally as it is for professionals for whom measuring and documentation are routine.

Key Features:

• 3.5" Colour Display
• Up to 4 sensors can be connected
• Automatic Sensor Detection

• Accuracy ≤ ± 10 % FS
• Viscosity compensation from 30 .. 600 cSt

The HYDAC HLB 1300 HYDACLab® is a compact, multifunctional sensor for real-time oil condition monitoring in both industrial and mobile systems. It measures saturation level, temperature, and changes in dielectric constant, providing analogue and switching outputs to detect fluid degradation or contamination early.

Key Features:

• Temperature: -25 .. +100 °C
• Operating pressure: < 50 bar
• Pressure resistance: < 600 bar
• Flow velocity: < 5 m/s

The HYDAC EDS 505 is a compact, robust electronic pressure switch ideal for hydraulic applications. It features adjustable switching points, LED status indication, and high cycling resistance, with a wide fluid temperature range of -40 to +100 °C.

Key Features:

• Temperature range of fluid: -40 .. +100 °C
• Supply voltage: 12 .. 32 V DC
• Torque value: 20 Nm

The HYDAC HFT 2500 Electro-Mechanical Flow Transmitter is designed for water and water-based media, offering accurate, position-independent flow measurement with ≤ ±3% FS accuracy. Using a float and Hall sensor system, it ensures reliable performance in high-pressure environments across various industrial applications.

Key Features:

• Accuracy: ≤ ± 3 % FS
• Any mounting position
• High level of functional reliability
• High pressure resistance
• Threaded connection

The HYDAC Portable Data Recorder HMG 3000 is a high-performance, user-friendly measuring unit designed for fast, efficient diagnostics and data logging in hydraulic systems. With automatic sensor recognition, advanced trigger functions, and a large graphical color display, it simplifies complex measurement tasks across a range of industrial applications.

Key Features:

• 10 input channels with extended voltage ranges
• Fast sampling down to 0.1 ms with multiple measurement modes
• Convenient data visualization and archiving with included software

The HYDAC ETS 1600 is an electronic temperature sensor and controller designed for precise monitoring of tank temperatures in hydraulic and lubricating oil systems. Featuring a remote PT100 sensor, 3-digit °C display, 4 adjustable relay outputs, and optional analogue output, it ensures accurate control and seamless integration with PLC systems.

Key Features:

• Temperature range 0 .. 100 °C, display range 0 .. 100 °C
• 3-digit temperature display in °C

The HYDAC EDS 601 is a versatile two-channel electronic pressure switch with a 4-digit LED display and selectable analog output (4–20 mA or 0–10 V). With digitally adjustable parameters and high accuracy (≤ ±1% FS), it’s ideal for dynamic control tasks in hydraulics, pneumatics, and process control.

Key Features:

• Fluid temperature range -25 .. +80 °C
• Supply voltage 20 .. 32 V DC
• Housing material aluminium, anodised
• Torque value 20 Nm

The HYDAC HMG 3010 is a high-performance, user-friendly data recorder designed for precise measurement and analysis in hydraulic and pneumatic systems. With automated sensor recognition, robust design, and advanced data logging features, it ensures efficient and reliable diagnostics for professionals in the field.

Key Features:

• Connect up to 10 sensors with 32 measurement channels and 0.1 ms sampling rate
• Large full-color display with intuitive operation and automatic sensor setup
• Supports USB, RS232, and CAN bus connectivity with advanced software tools for data processing
